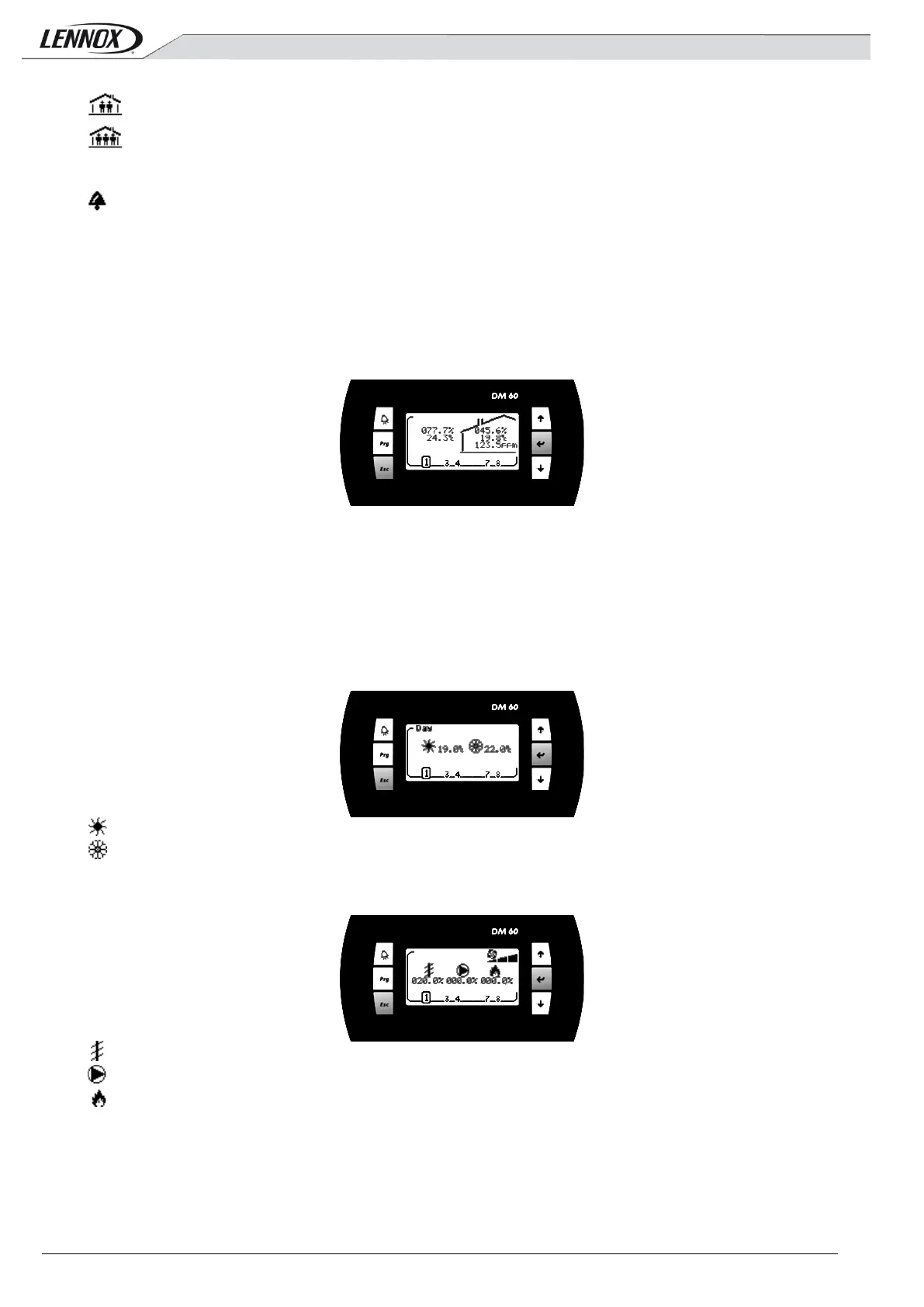

Mode Day I
Mode Day II
Bottom left:
If the unit is in alarm, this symbol is displayed.
Button 'Alarm': Go to Alarm list.
Button 'Prg': Go to Setup menus of the unit.
Button 'Esc': Return to the choice of Unit selected.
Button 'Up Arrow': Go to another display of the Unit operation.
Button 'Down Arrow': Go to another display of the Unit operation.
2.2.3.2 Value
To the left of the house:
Visualization of the value of outdoor humidity (if enabled).
Visualization of the value of outdoor temperature.
In the house:
Visualization of the value of indoor humidity (if enabled).
Visualization of the value of the indoor temperature.
Visualization of the value of the rate of indoor air quality (if enabled).
2.2.3.3 Set-points
Visualization of the set point of heating mode.
Visualization of the set point of cooling mode.
2.2.3.4 Operation
Visualization of the opening percentage of fresh air damper.
Visualization of the percentage of compressors engaged.
Visualization of the percentage of heaters engaged.
Button 'Alarm': Go to Alarm list.
Button 'Prg': Go to Setup menus of the unit.
Button 'Esc': Return to main screen.
Button 'Up Arrow': Go to previous display of the Unit operation.
Button 'Down Arrow': Go to next display of the Unit operation.
