Lennox eCOMFORT R32 GAC 035S

• 48 •
SPXX KGRL
DPXX WFIF
AVUB PHRF
GAC/H 125S-140S
GAC-H_125S-140S_H_R32_A
GAC-H_125S-140S_S_R32_A
Installation manual / eCOMFORT R32-MIL166E-0222 - 09/2022
STANDARD VERSION OR WITH HIGH PRESSURE EC FANS (HIPF)
UNIT WITH STANDARD AC FANS (SFAC)

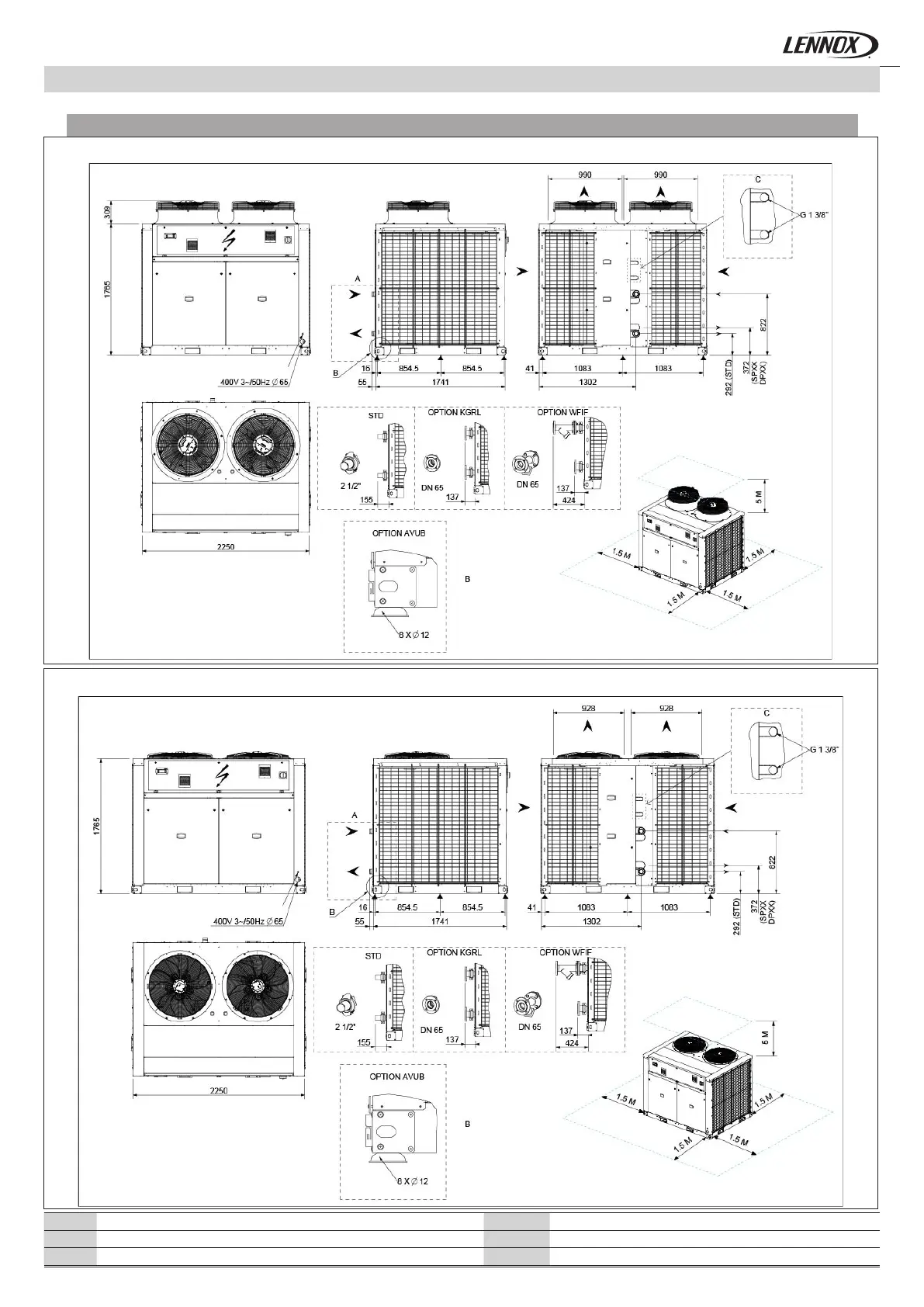

All dimensions in mm
All dimensions in mm
Hydraulic module with single pump Flange connection
Hydraulic module with twin pum Water lter (supplied loose)
Rubber anti-vibration mounts Domestic hot water supply : desuperheater
Flange
connection
Victaulic or
welded
connection
Flange
connection
Controller connection Ø 29
Victaulic or
welded
connection
Flange
connection
Flange
connection
Controller connectionØ 29
1.- GENERAL CHARACTERISTICS
1.9.- DIMENSIONS
