Page 27

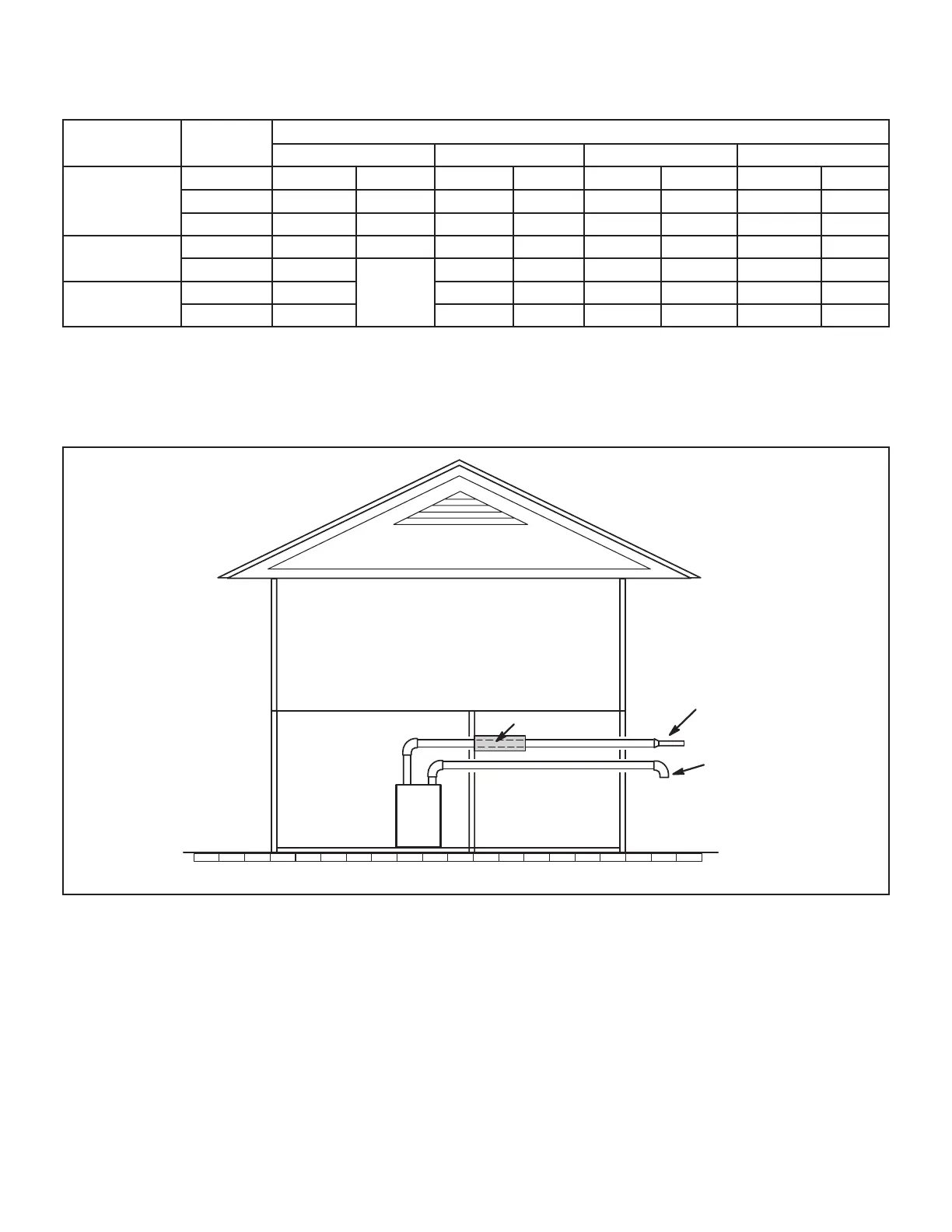

TABLE 14
Maximum Allowable Exhaust Vent Pipe Length (in ft.) Without Insulation In Unconditioned Space For
Winter Design Temperatures Single - Stage High Eciency Furnace
Winter Design
Temp
1
°F (°C)
Vent
Pipe Diam
Unit Input Size
040 060 080 100
32 to 21
(0 to -6)
PVC
2
PP
PVC
2
PP
PVC
2
PP
PVC
2
PP
2 in 18 16 31 28 50 48 30 30
3 in 9 9 18 18 35 35 47 47
20 to 1
(-7 to -17)
2 in 9 8 18 16 32 29 30 30
3 in N/A 8 8 19 19 26 26
0 to -20
(-18 to -29)
2 in 5 12 10 22 19 30 27
3 in N/A N/A N/A 10 10 16 16
1Refer to 99% Minimum Design Temperature table provided in the current edition of the ASHRAE Fundamentals Handbook.
2 Poly-Propylene vent pipe (PP) by Duravent and Centrotherm.
NOTE - Concentric terminations are the equivalent of 5’ and should be considered when measuring pipe length.
NOTE - Maximum uninsulated vent lengths listed may include the termination(vent pipe exterior to the structure) and cannot exceed 5 linear feet or
the maximum allowable intake or exhaust vent length listed in TABLE 12 or TABLE 13 which ever is less.
NOTE - - If insulation is required in an unconditioned space, it must be located on the pipe closest to the furnace. See FIGURE 29.
Conditioned
Space
Unconditioned
Space
Exhaust
Pipe
Intake
Pipe
Conditioned
Space
Pipe Insulation
FIGURE 29
