SINGLE STAGE
TWO STAGE
EL22XPV
EL22XPV
EL22XPV
EL22XPV
EL22XPV
EL22XPV
EL22XPV
EL22XPV
EL22XPV
EL22XPV
EL22XPV
EL22XPV
EL18XPV
EL18XPV
EL18XPV
EL22XPV
EL22XPV
EL22XPV
EL18XPV
EL18XPV
EL18XPV

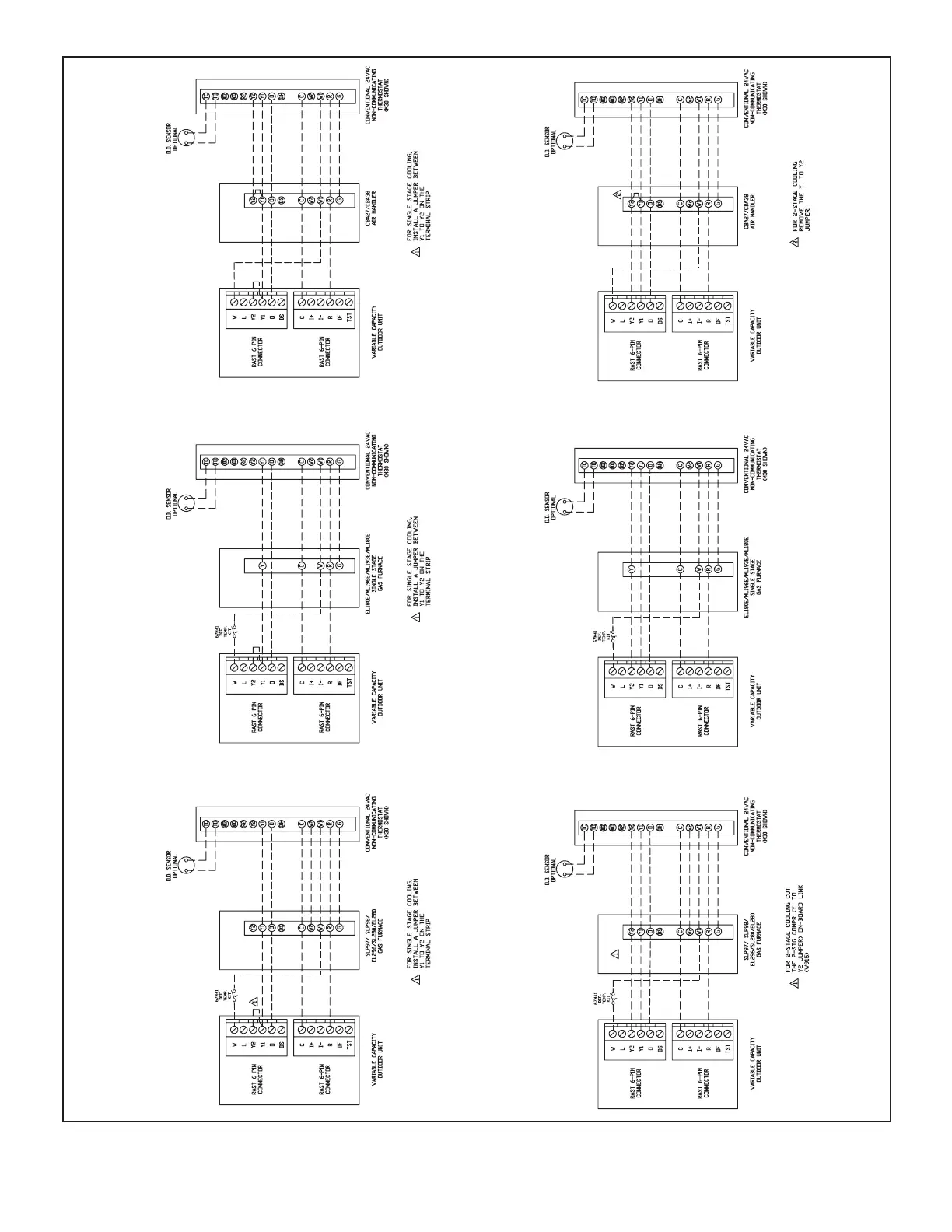

FIGURE 14. Conventional 24VAC Cooling Non-Communicating Thermostat Wiring
