Lennox G27M Series Unit Information

Page 8

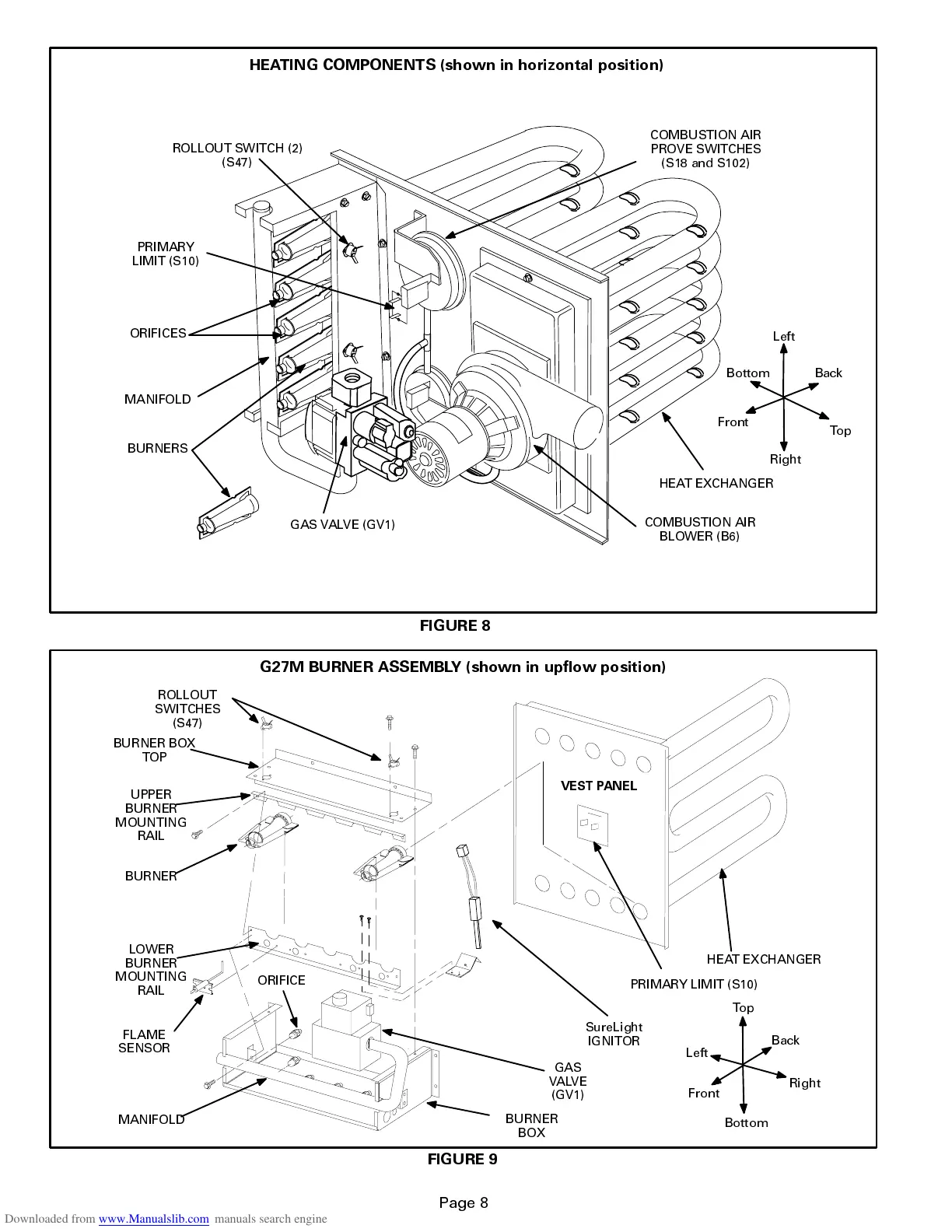

FIGURE 8
HEATING COMPONENTS (shown in horizontal position)
HEAT EXCHANGER
COMBUSTION AIR
BLOWER (B6)
MANIFOLD
ROLLOUT SWITCH (2)
(S47)
COMBUSTION AIR
PROVE SWITCHES
(S18 and S102)
GAS VALVE (GV1)
BURNERS
PRIMARY
LIMIT (S10)
ORIFICES
Front
Right
Top
Bottom
Left
Back
G27M BURNER ASSEMBLY (shown in upflow position)
FIGURE 9
Top
SureLight
IGNITOR
FLAME
SENSOR
MANIFOLD
ORIFICE
GAS
VALVE
(GV1)
HEAT EXCHANGER
BURNER
UPPER
BURNER
MOUNTING
RAIL
LOWER
BURNER
MOUNTING
RAIL
BURNER
BOX
BURNER BOX
TOP
ROLLOUT
SWITCHES
(S47)
Front
Right
Bottom
Left
Back
PRIMARY LIMIT (S10)
VEST PANEL
