Lennox G43UF Installation Instructions

Page 50
Contractor’s: Name_________________________Telephone_____________Checklist Completed____________________
Job Address_____−________________________________Technician’s Name___________________________________
1
HEATING MODE
GAS MANIFOLD PRESSURE W.C._____
COMBUSTION SAMPLE CO
2
%
______
CO PPM_______
2
INDOOR BLOWER AMPS______
3
TEMPERATURE RISE
4
Supply Duct Temperature ________
Return Duct Temperature
_
_____
Temperature Rise = ________
TOTAL DUCT STATIC
5
Supply Duct Static _______
Return Duct Static + ______
Total Static = _______
CONDENSATE LINE
6
Leak Free
VENT PIPE
7
Leak Free
COOLING MODE
INDOOR BLOWER AMPS______
3
TEMPERATURE DROP
Return Duct Temperature _________
Supply Duct Temperature
_
_______
Temperature Drop = _________
4
TOTAL DUCT STATIC (dry coil)
Total Static = ________
5
DRAIN LINE
8
Leak Free
THERMOSTAT
Adjusted and Programmed
Explained Operation to Owner
9
SUPPLY
AIR
Blower Motor Amps
Duct Static
Thermostat
Gas Manifold Pressure
1
2
3
4
5
6
7
8
9
Temperatures
RETURN AIR
Combustion CO
2

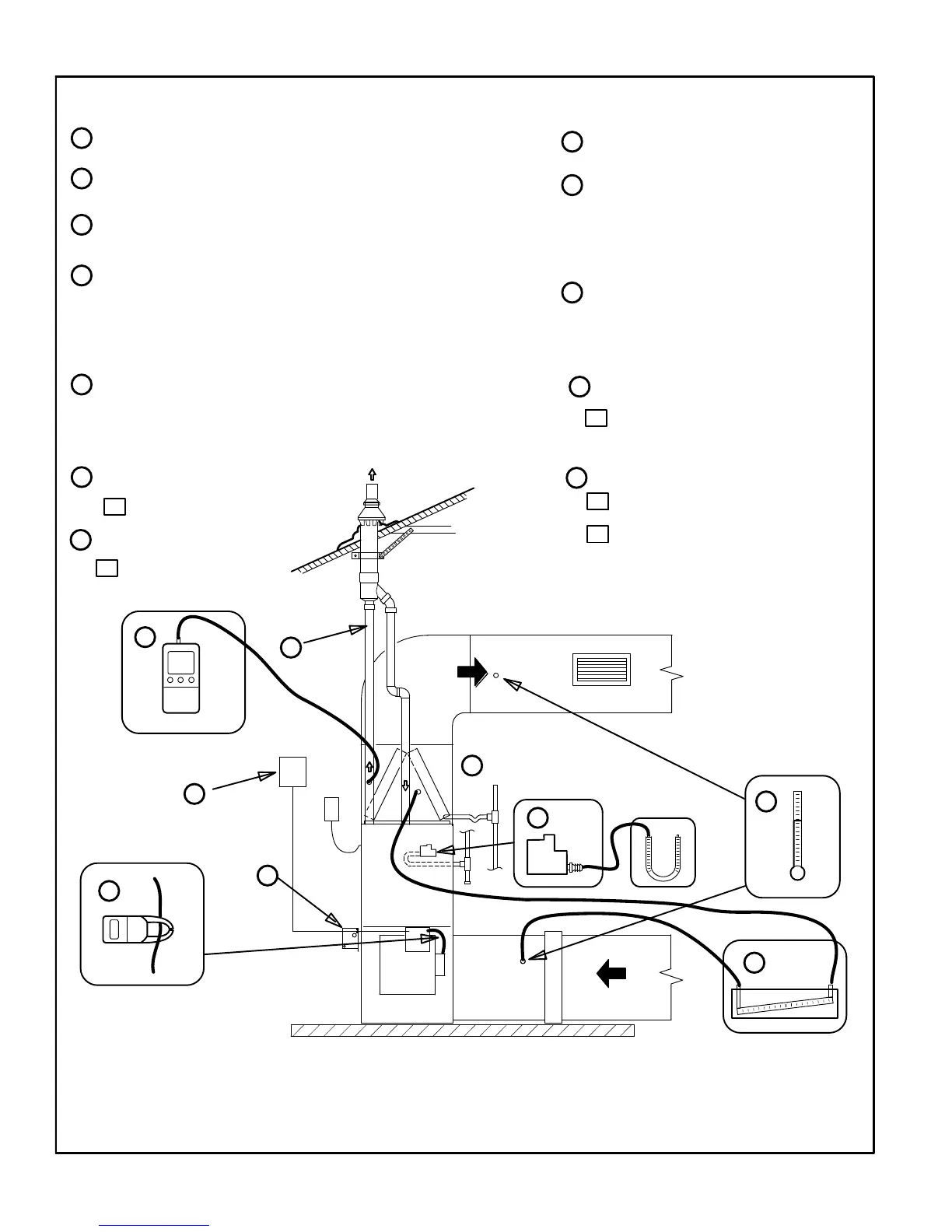

UNIT OPERATION

Lennox G43UF Specifications

General

Heating Stages	Single-stage
Blower Motor	PSC
Ignition System	Hot Surface Ignition
Gas Valve	Single-stage
Cabinet Width	17.5 inches
Fuel Type	Natural Gas or Propane
Cabinet Type	Upflow/Horizontal
Ignition Type	Hot Surface Ignition
Heating Capacity	44, 000-132, 000 BTUH
Warranty	5-Year Limited Warranty on covered components
