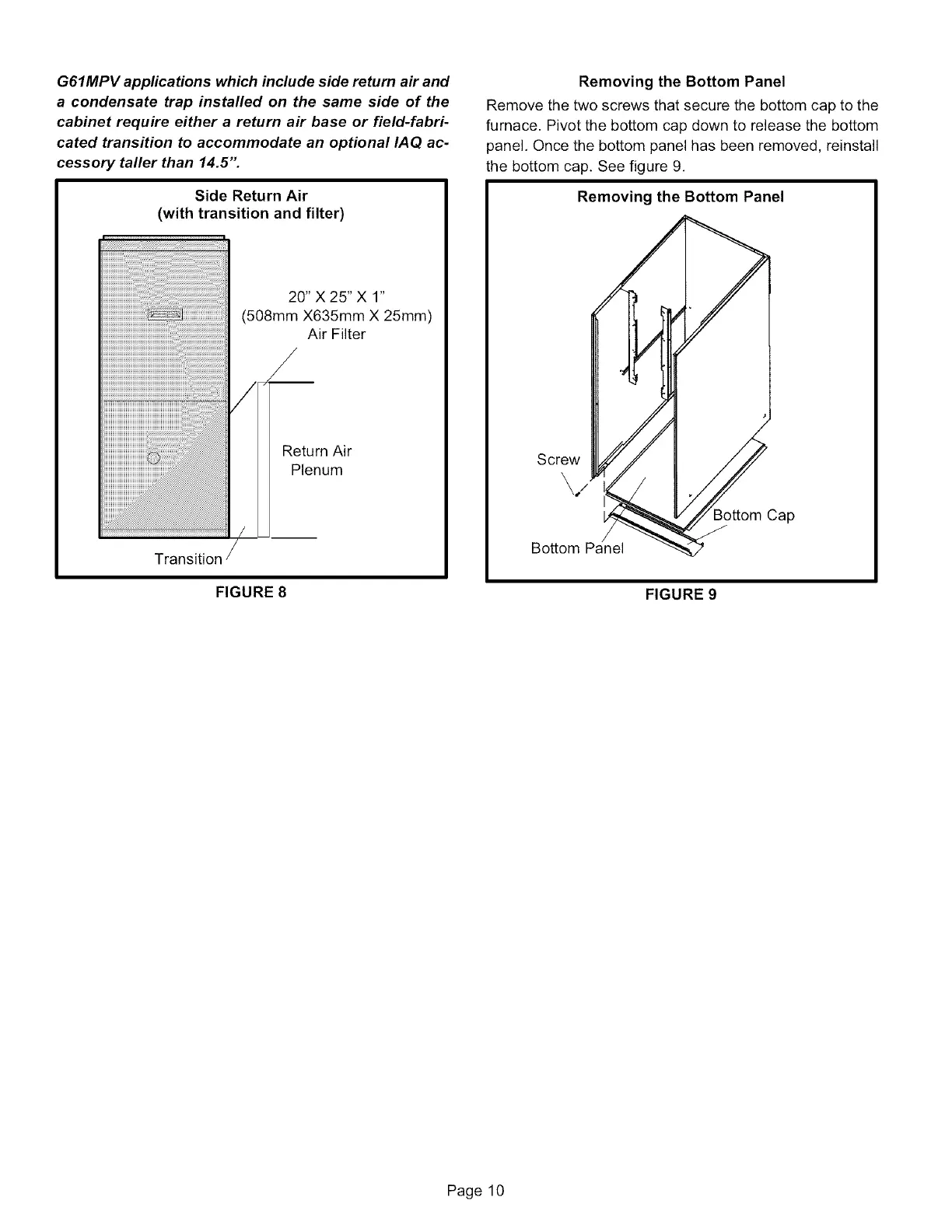

G61MPV applications which include side return air and
a condensate trap installed on the same side of the
cabinet require either a return air base or field-fabri-
cated transition to accommodate an optional IAQ ac-
cessory taller than 14.5".
Side Return Air
(with transition and filter)
20" X25"X 1"
(508mm X635mm X 25mm)
Air Filter
/
Retu rn Air
Plenum
Transition
FIGURE 8
Removing the Bottom Panel
Remove the two screws that secure the bottom cap to the
furnace. Pivot the bottom cap down to release the bottom
panel, Once the bottom panel has been removed, reinstall
the bottom cap. See figure 9.
Removing the Bottom Panel
Screw
\/
Bottom
Bottom Cap
FIGURE 9
Page 10
