Lennox G61MPV Series

INTAKE
PIPE
*Gas connector may be
used for Canadian
installation if accept-
able by local authority
having junsdiction.
EXHAUST PIPE
*GAS
CONNECTOR
RAISED
CONDENSATE
LINE SERVICE PLATFORM

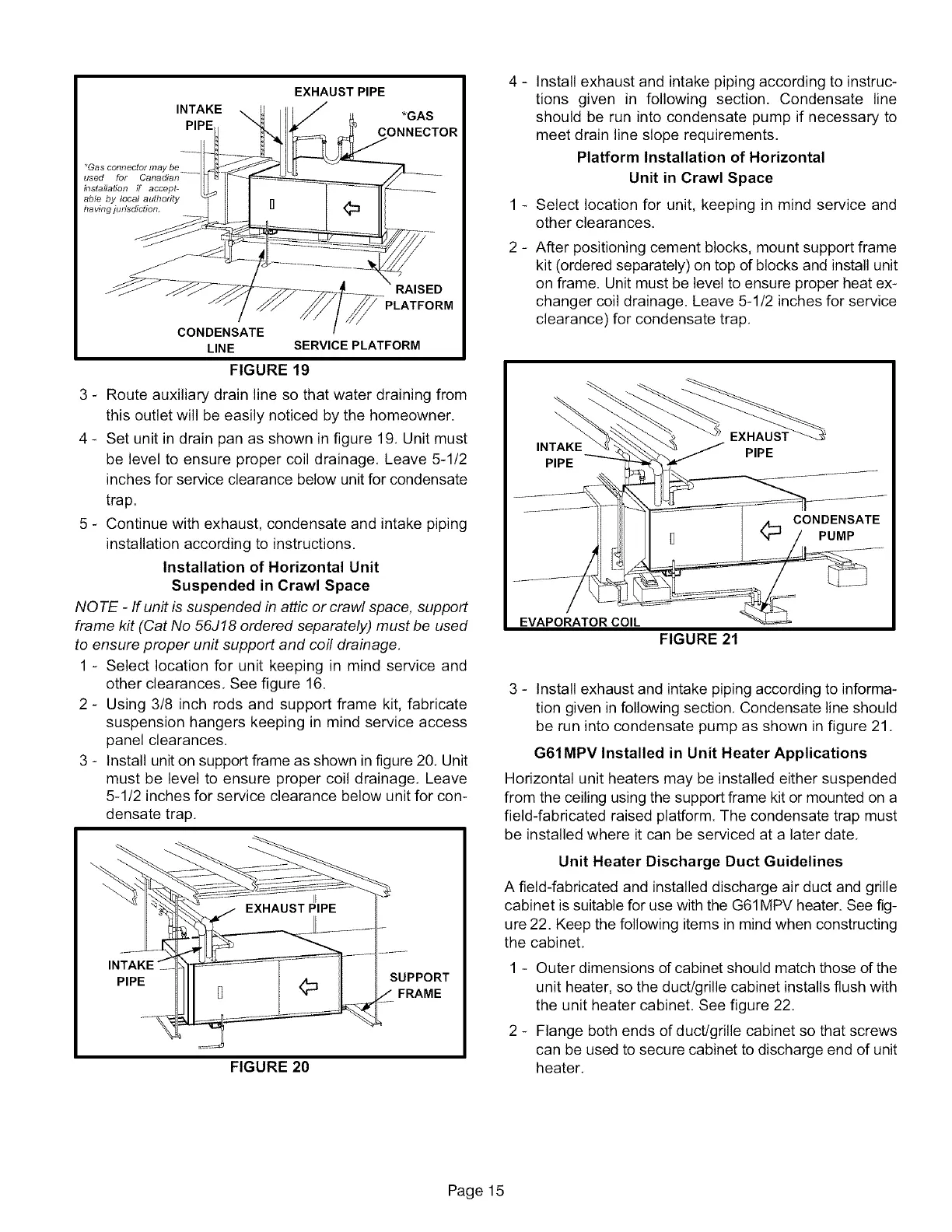

FIGURE 19
3 - Route auxiliary drain line so that water draining from
this outlet will be easily noticed by the homeowner.
4 - Set unit in drain pan as shown in figure 19, Unit must
be level to ensure proper coil drainage, Leave 5-1/2
inches for service clearance below unit for condensate
trap.
5 - Continue with exhaust, condensate and intake piping
installation according to instructions.
Installation of Horizontal Unit
Suspended in Crawl Space
NOTE - If unit is suspended in attic or crawl space, support
frame kit (Cat No 56J18 ordered separately) must be used
to ensure proper unit support and coil drainage.
1 - Select location for unit keeping in mind service and
other clearances, See figure 16.
2 - Using 3/8 inch rods and support frame kit, fabricate
suspension hangers keeping in mind service access
panel clearances,
3 - Install unit on support frame as shown in figure 20, Unit
must be level to ensure proper coil drainage, Leave
5-1/2 inches for service clearance below unit for con-
densate trap,
INTAKE
PIPE
SUPPORT
FRAME
FIGURE 20
4 - Install exhaust and intake piping according to instruc-
tions given in following section. Condensate line
should be run into condensate pump if necessary to
meet drain line slope requirements.
Platform Installation of Horizontal
Unit in Crawl Space
1 - Select location for unit, keeping in mind service and
other clearances,
2 - After positioning cement blocks, mount support frame
kit (ordered separately) on top of blocks and install unit
on frame. Unit must be level to ensure proper heat ex-
changer coil drainage. Leave 5-1/2 inches for service
clearance) for condensate trap,
FIGURE 21
3 - Install exhaust and intake piping according to informa-
tion given in following section, Condensate line should
be run into condensate pump as shown in figure 21,
G61MPV Installed in Unit Heater Applications
Horizontal unit heaters may be installed either suspended
from the ceiling using the support frame kit or mounted on a
field-fabricated raised platform. The condensate trap must
be installed where it can be serviced at a later date,
Unit Heater Discharge Duct Guidelines
A field-fabricated and installed discharge air duct and grille
cabinet is suitable for use with the G61MPV heater. See fig-
ure 22. Keep the following items in mind when constructing
the cabinet,
1 - Outer dimensions of cabinet should match those of the
unit heater, so the duct/grille cabinet installs flush with
the unit heater cabinet, See figure 22,
2 - Flange both ends of duct/grille cabinet so that screws
can be used to secure cabinet to discharge end of unit
heater,
