Lennox G61MPV Engineering Data

G61MPV / Page 13

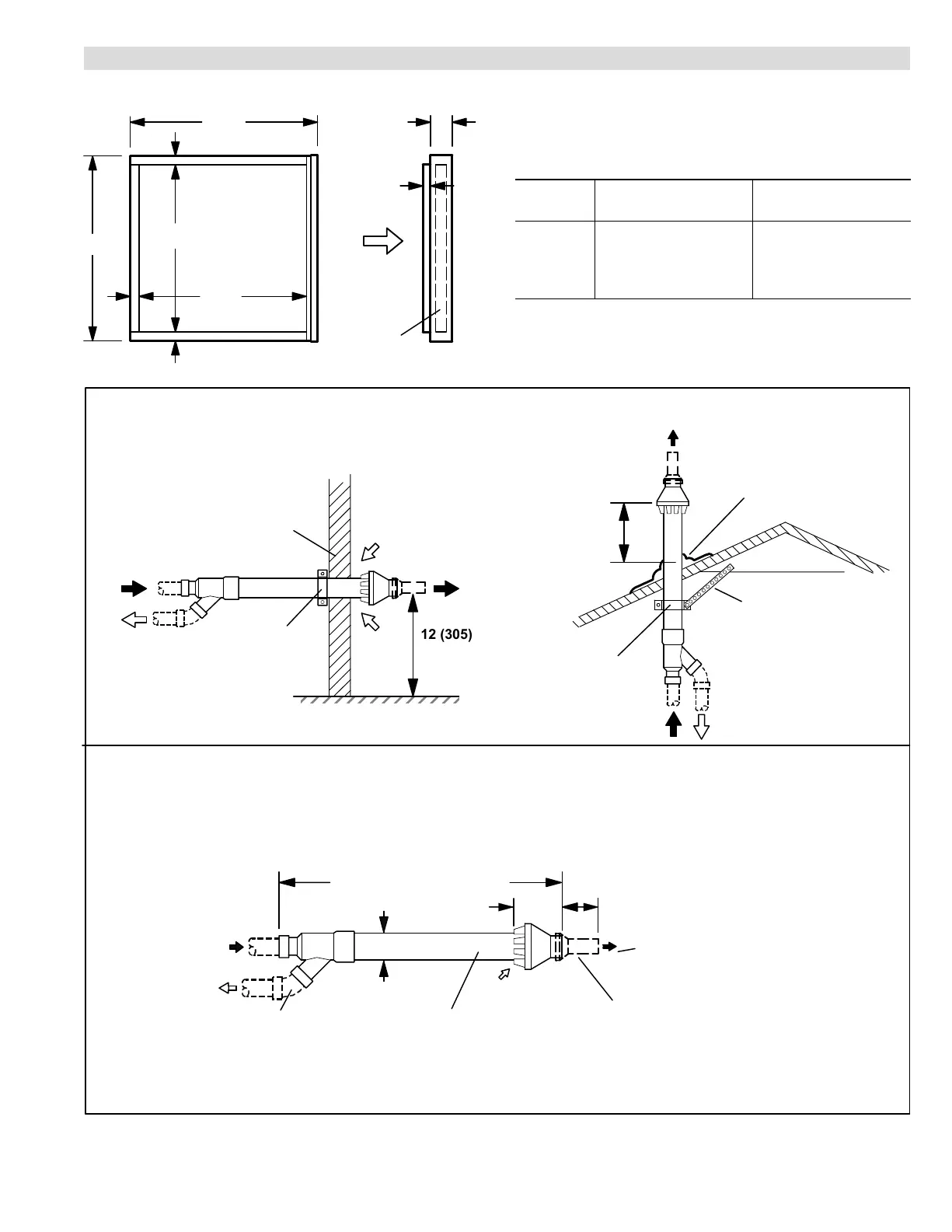

OPTIONAL ACCESSORY DIMENSIONS − INCHES (MM)
HORIZONTAL FILTER KIT
FRONT VIEW
24−3/4
(629)
A
B
23−1/2
(597)
5/8
(16)
RETURN
AIR
OPENING
SIDE VIEW
AIR FLOW
AIR FILTER
(Furnished)
1-1/4 (32)
5/8
(16)
5/8
(16)
5/8
(16)
Catalo
g
A B
Catalog
Number
inch
mm inch mm
87L96
18 457 16−3/4 425
87L97 21 533 18−3/4 476
87L98
25 635 23−3/4 603
CONCENTRIC WALL
TERMINATION APPLICATIONS
INTAKE
AIR
EXHAUST
AIR
INTAKE
AIR
INTAKE
AIR
EXHAUST
AIR
OUTSIDE
WALL
ÉÉÉÉÉÉÉÉ
12 (305)
Minimum
Above
Grade
12 (305)
Minimum
Above Average
Snow
Accumulation
SHEET METAL STRAP
(Clamp and sheet metal strap
must be field installed to support
the weight of the termination kit.)
FLASHING
(Not Furnished)
CLAMP
GRADE
6−1/2
(165)
(Field Supplied)
ELBOW
INTAKE AIR
EXHAUST
AIR
TERMINATION
ASSEMBLY
(Furnished)
71M80/69M29 − 2 inch (51 mm)
60L46  3 inch (76 mm)
See Installation Instructions for specific usage.
CONCENTRIC ROOF
TERMINATION APPLICATIONS
CLAMP
(Not Furnished)
6
(152)
33−3/8 (848) − 71M80/69M29
38−7/8 (987) − 60L46
3−1/2 (89) − 71M80/69M29
4−1/2 (114) − 60L46
Outdoor Exhaust Accelerator
included with 71M80
(Required with −045−070 models)

Lennox G61MPV Specifications

General

Blower Type	Variable speed
Energy Star Certified	Yes
Gas Valve	Modulating
Fuel Type	Natural gas or propane
Ignition Type	Electronic
Heating Stages	2
Warranty	Limited Lifetime warranty on heat exchanger; 10-Year limited warranty on covered components
Heating Capacity	44, 000 to 132, 000 BTUH
