Lennox G61MPV Engineering Data

G61MPV / Page 14

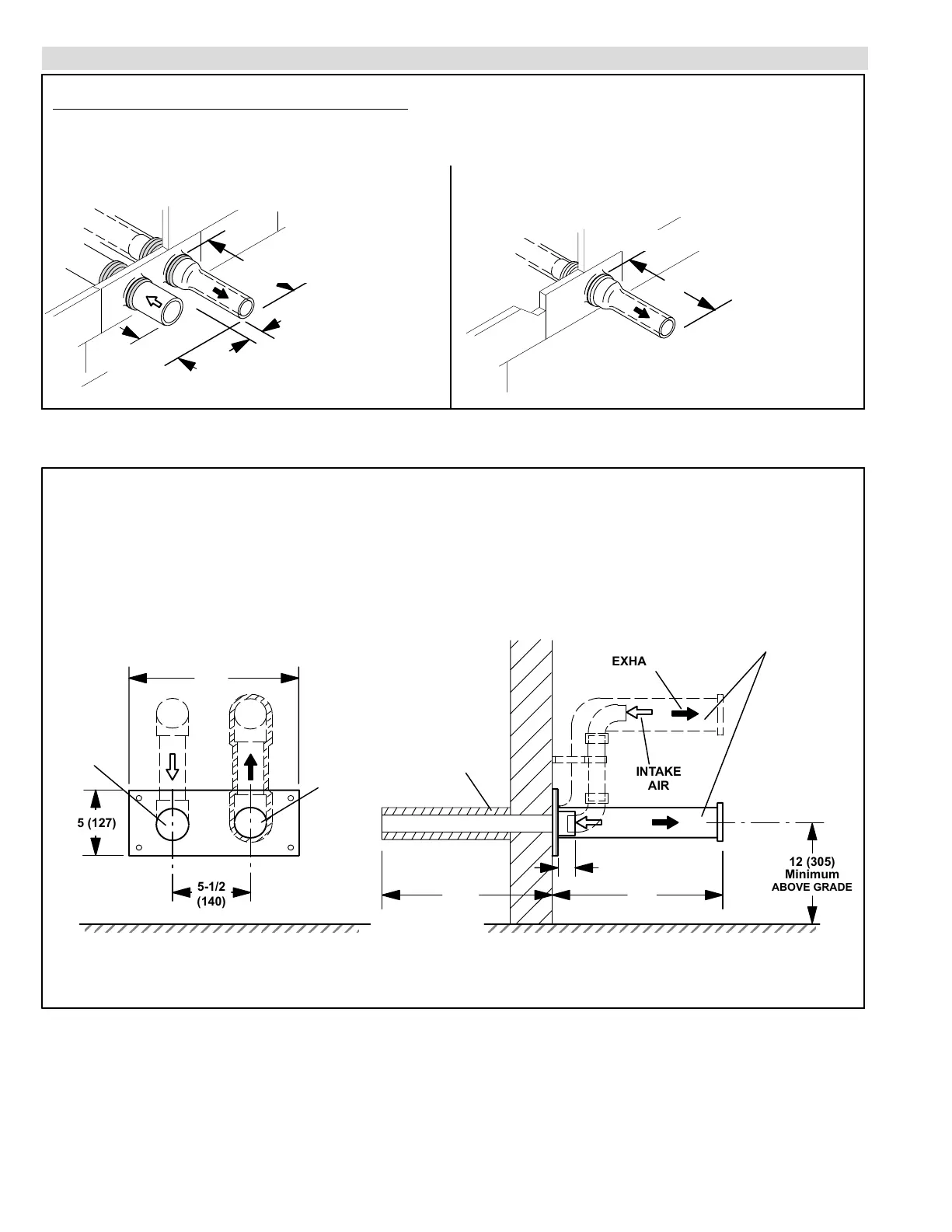

OPTIONAL ACCESSORY DIMENSIONS − INCHES (MM)
15F74 − 2 inch (51 mm)
See Installation Instructions for specific usage.
NOTE  EXHAUST PIPE SHOWN
12 in. (305 mm) maximum
without support
NON−DIRECT VENT APPLICATION
NOTE  12 in. (305 mm) minimum height above
average snow accumulation.
Kit Contains Enough Parts For Two Installations
8 in. (203 mm)
minimum
6 in. (152 mm)
maximum
12 in. (305 mm) maximum
without support
NOTE − 12 in. (305 mm) minimum height above
average snow accumulation.
DIRECT VENT APPLICATION
WALL ASSEMBLY TERMINATION KIT − RING KIT
ÉÉÉÉÉÉÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉÉÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉÉÉÉÉÉÉÉÉ
5 (127)
5-1/2
(140)
12 (305)
Minimum
ABOVE GRADE
INTAKE
AIR
EXHAUST
AIR
GRADE
EXHAUST
AIR
INTAKE
AIR
INSULATION
(Not Furnished)
If Intake and Exhaust Pipe is less than
12 in. (305 mm) above snow accumula-
tion or other obstructions, field fabri-
cated piping must be installed.
GRADE
12
(305)
2
(51)
12
(305)
WALL TERMINATION KITS (CLOSE-COUPLE)
22G44 − 2 inch (51 mm)
44J40 − 3 inch (76 mm)
See Installation Instructions for specific usage.
12
(305)
DIRECT VENT APPLICATIONS

Lennox G61MPV Specifications

General

Blower Type	Variable speed
Energy Star Certified	Yes
Gas Valve	Modulating
Fuel Type	Natural gas or propane
Ignition Type	Electronic
Heating Stages	2
Warranty	Limited Lifetime warranty on heat exchanger; 10-Year limited warranty on covered components
Heating Capacity	44, 000 to 132, 000 BTUH
