Lennox G61MPV

Page 90
VIII− Field Wiring Applications and Jumper Settings
A−SureLight Board 49M59

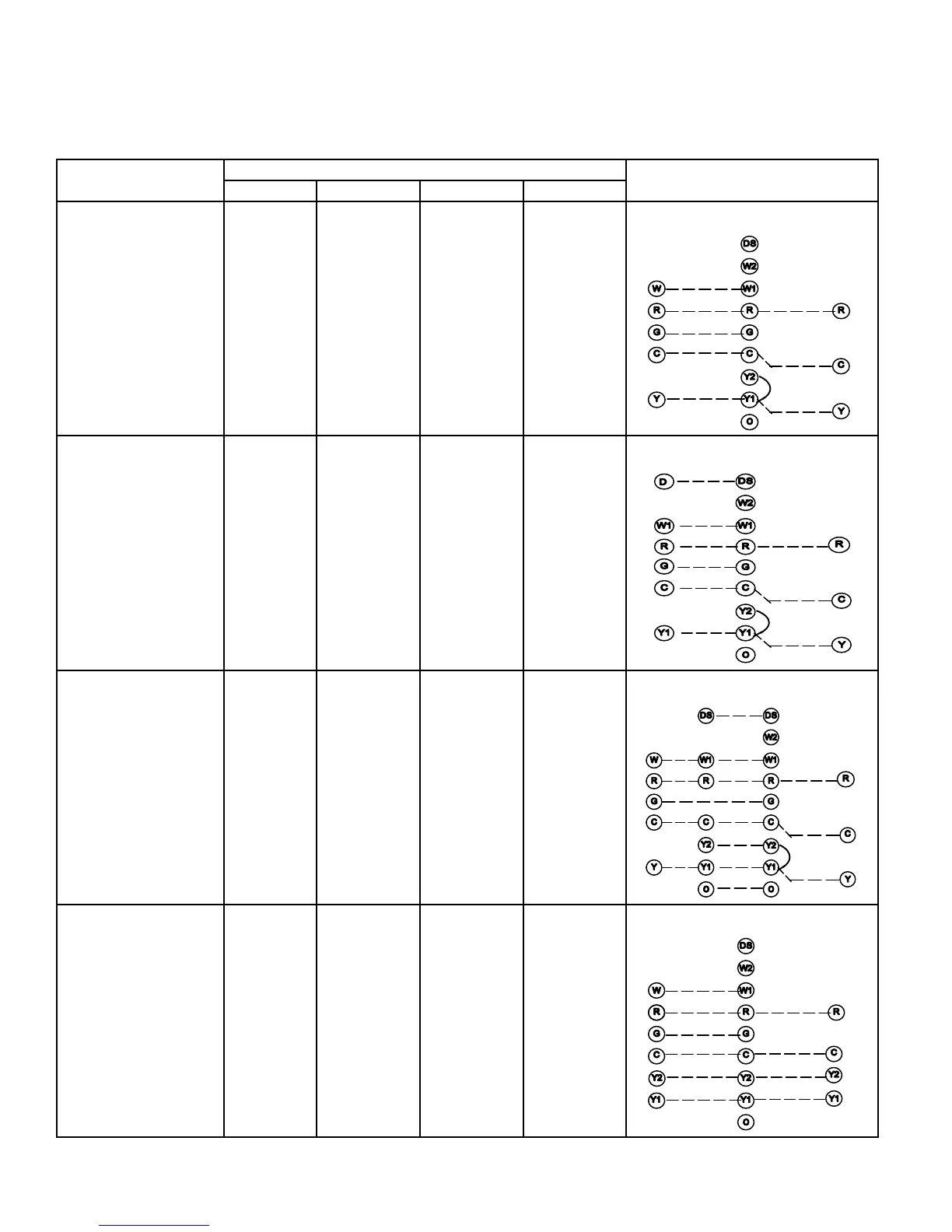

TABLE 45
Field Wiring Applications
Thermostat
Jumper Settings (See figure 4)
Wiring Connections
E20 W915 W914 W951
1 Heat / 1 Cool
NOTE − Use dip switch
3 to set second−stage
heat ON delay.
ON−10 minutes.
OFF−15 minutes.
SINGLE Intact Intact Intact
S1
T’STAT
CONTROL
TERM. STRIP
OUTDOOR
UNIT
HSXB15
(LSOM)
51M26 SignatureStat
NOTE − Use dip
switch 3 to set sec-
ond−stage heat ON
delay.
ON−10 minutes.
OFF−15 minutes.
SINGLE Intact Cut Intact
51M26
T’STAT
CONTROL
TERM. STRIP
OUTDOOR
UNIT
HSXB15
(LSOM)
1 Heat / 1 Cool
with CCB1
NOTE − Use dip switch
3 to set second−stage
heat ON delay.
ON−10 minutes.
OFF−15 minutes.
SINGLE Intact Cut Intact
S1
T’STAT
CONTROL
TERM. STRIP
OUTDOOR
UNIT
CCB1
HSXB15
(LSOM)
1 Heat / 2 Cool
NOTE − Use dip switch
3 to set second−stage
heat ON delay.
ON−10 minutes.
OFF−15 minutes.
SINGLE Cut Intact Intact
S1
T’STAT
CONTROL
TERM. STRIP
OUTDOOR
UNIT
HSXA19
(LSOM)
