Lennox G61MPV

Page 91

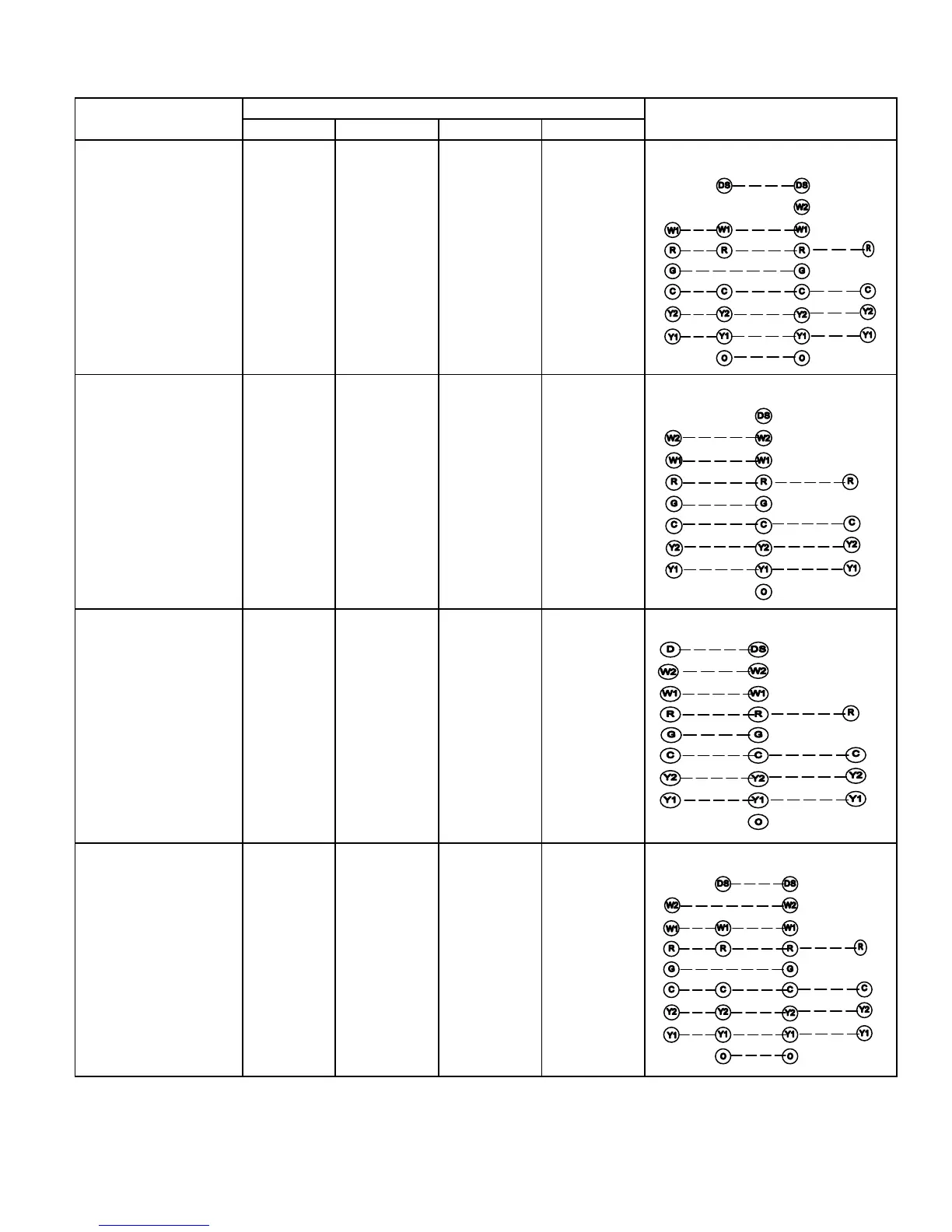

TABLE 46
Field Wiring Applications (Continued)
Thermostat
Jumper Settings (See figure 4)
Wiring Connections
E20 W915 W914 W951
1 Heat / 2 Cool
with CCB1
NOTE − Use dip switch
3 to set second−stage
heat ON delay.
ON−10 minutes.
OFF−15 minutes.
SINGLE Cut Cut Intact
S1
T’STAT
CONTROL
TERM. STRIP
OUTDOOR
UNIT
CCB1
HSXA19
(LSOM)
2 Heat / 2 Cool TWO Cut Intact Intact
S1
T’STAT
CONTROL
TERM. STRIP
OUTDOOR
UNIT
HSXA19
(LSOM)
51M27 SignatureStat TWO Cut Cut Intact
CONTROL
TERM. STRIP
OUTDOOR
UNIT
51M27
HSXA19
(LSOM)
2 Heat / 2 Cool
with CCB1
TWO Cut Cut Intact
S1
T’STAT
CONTROL
TERM. STRIP
OUTDOOR
UNIT
CCB1
HSXA19
(LSOM)
