7-Condenser Fans B4 and B5
The specifications tables on pages 2-6 in this manual
shows the specifications of condenser fans used in
GCS16 series units. Condenser fans in all GCS16 units
(all voltages) use three-phase motors which do not require
a run capacitor. GCS16823 and GCS16953 units are
equipped with a single condenser fan which operates dur
ing all compressor operation. All other GCS16 units are
equipped with two condenser fans. In GCS161603 and
GCS161853 units, both condenser fans are energized
upon receiving a first stage cooling demand. Condenser
fans draw air across both condenser coils during all com
pressor operation. In all other GCS16 series units, the
condenser fans operate independently and are staged
with the compressors.
O-Blower Compartment Components
1-Indoor Blower Motor B3
All GCS16 units use threephase singlespeed blower mo
tors. CFM adjustments are made by adjusting the motor
pulley (sheave). Blower motor ratings are shown in
table 5. Motors are equipped with sealed ball bearings. All
motors and operate at 1725 to 1760 RPM and all are inter
nally overload protected. Units may be equipped with mo
tors manufactured by Century, G.E., Emerson, Marathon
or other manufacturer. Electrical FLA and LRA specifica
tions vary by manufacturer. See unit rating plate for infor
mation specific to your unit.
Standard
TABLE 5
BLOWER MOTOR
Usage
Volts Phase
208/230
switchable to 460
3
3
HP
2
3
Electrical Characteristics
GCS16823Y,G
GCS16953-Y,G
GCS161353Y,G
Drive
Units
Standard
Optional
GCS16823J
GCS16953-J
GCS161353J
2 Standard 575
GCS161353Y,G
Standard
GCS161603Y,G
GCS161853Y,G
208/230
switchable to 460
3
3
Optional GCS161353J
Standard
GCS161603J
GCS161853J
3575
5
Optional GCS161853Y,G
Standard GCS162553Y,G
208/230
switchable to 460
3
5
Optional GCS161853J
Standard GCS162553J
3575
7.5
Optional
GCS162553Y,G
GCS162753Y,G
GCS163003Y,G
208/230
switchable to 460
3
7.5 3575
Standard
Optional
GCS162553J
GCS162753J
GCS163003J
10 Optional GCS163003Y,G
208/230
switchable to 460
3
10 3575Optional GCS163003J

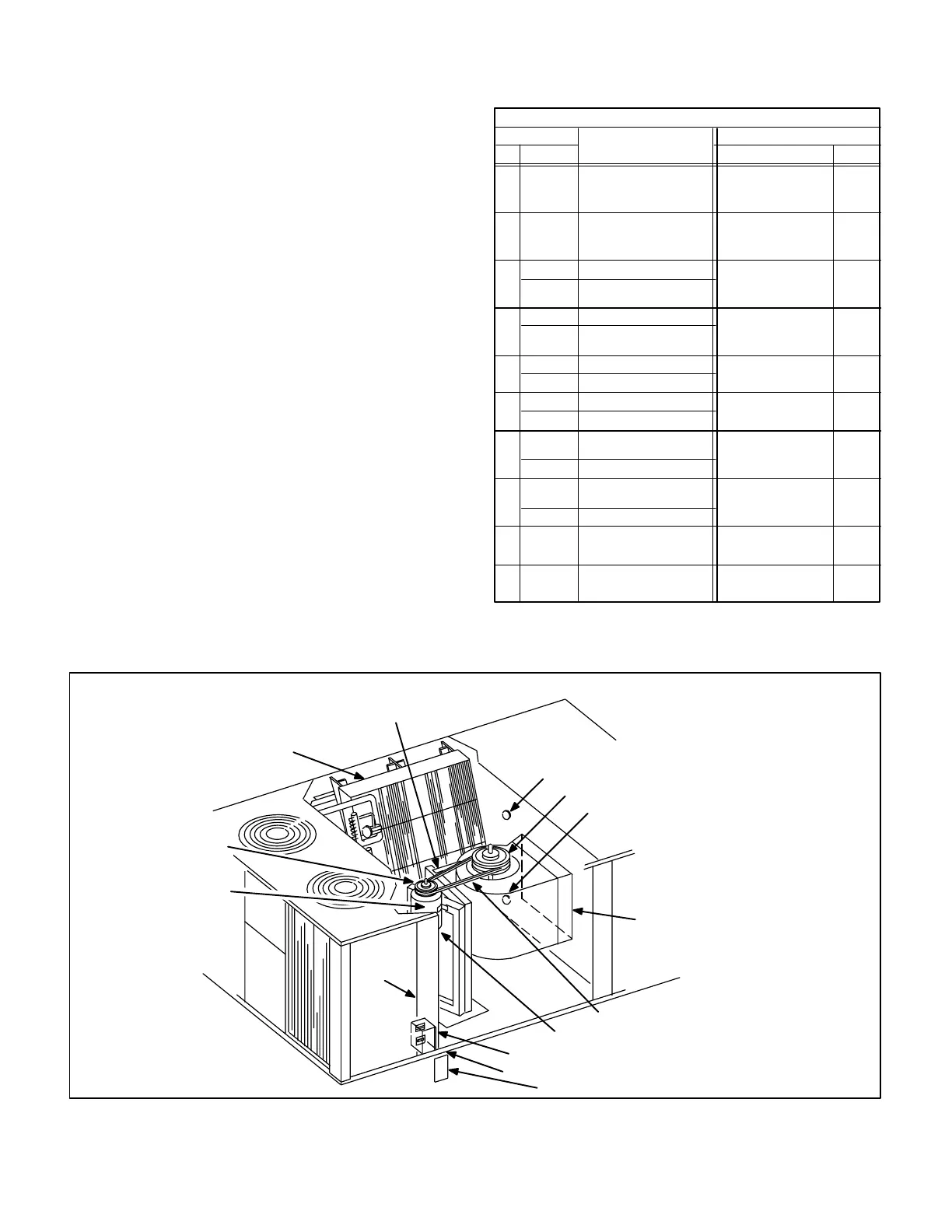

GCS16 TYPICAL BLOWER COMPARTMENT
FIGURE 38
LINE VOLTAGE MAKE-UP STRIP TB2 (15 TON AND UP ONLY)
LOW VOLTAGE TERMINAL STRIP TB1 (15 TON AND UP ONLY)
S10 PRIMARY LIMIT
S21 SECONDARY LIMIT
BLOWER
BLOWER MOTOR
ADJUSTABLE PULLEY
(CFM ADJUSTMENT)
MOTOR MOUNTING PLATE
BELT TENSION ADJUSTMENT
BLOWER PULLEY
EVAPORATORS
MAKE-UP ACCESS COVER (15 TON AND UP ONLY)
DRIVE BELT
MULLION
