• 18 •
PE
L
N
Com
I
II
III
A1
C1
M1
Installation, operation and maintenance / INALTO-IOM-1809-E
Fan speed control
230VAC / 50 Hz
Fan power supply
(permanent)
230VAC / 50 Hz
Cross section area = 1,5 mmqCross section area = 1 mmq
UNIT LIMIT
LEGEND:
Earth (yellow/green)
Phase
Neutral
Common
Minimum speed
Medium speed
Maximum speed
Power chart
Capacitor
Motor

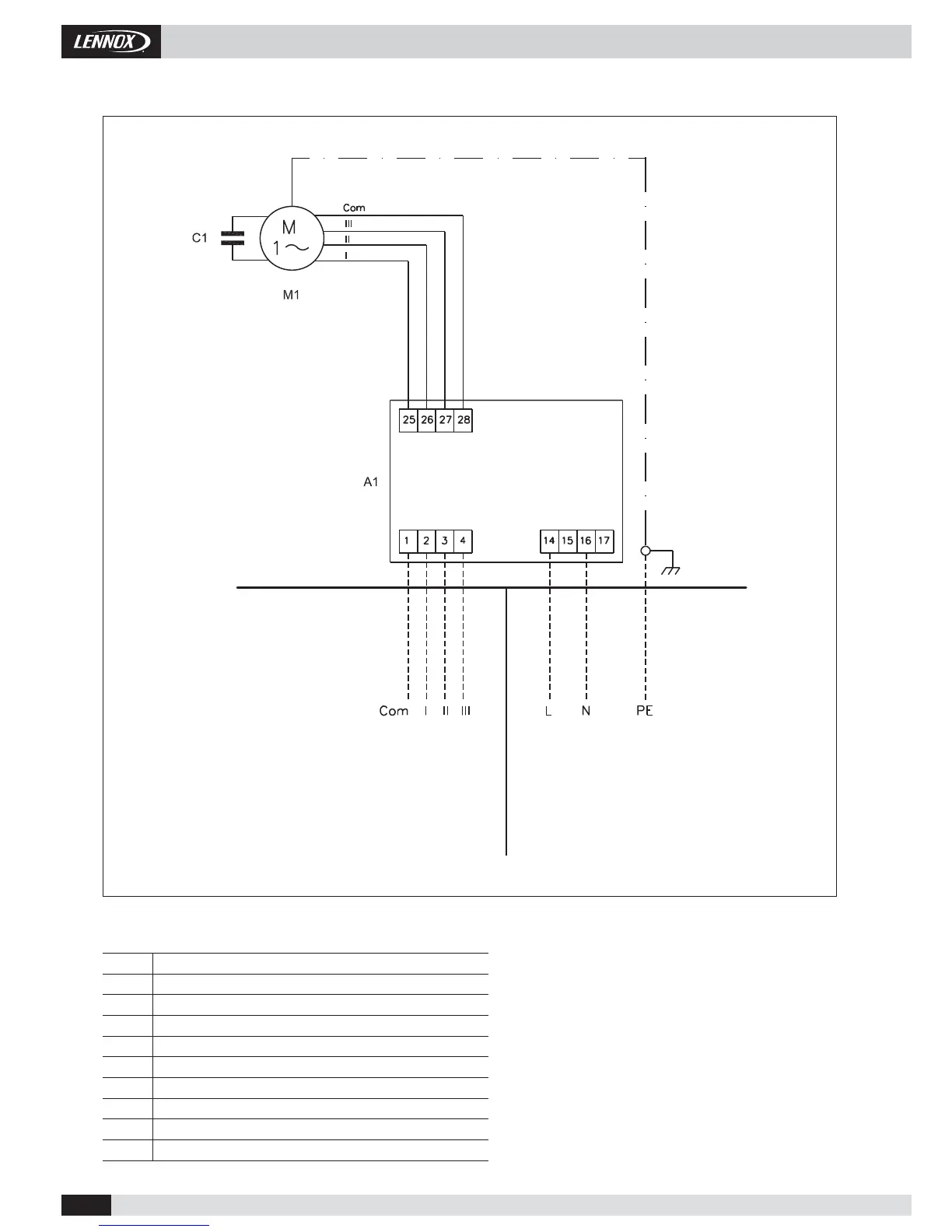

Pic. 30
3-SPEED MOTOR
Sizes 25 & 28
WIRING DIAGRAM
