INNOV@ ECFAN DMR -AGU-0912-E • 9 •
3 Installation
The INNOV@DM-R package air-conditioning unit is suitable for all environments except aggressive ones. Do not place
any obstacles near the units and make sure that the air flow is not impeded by obstacles and/or situations causing back
suction.

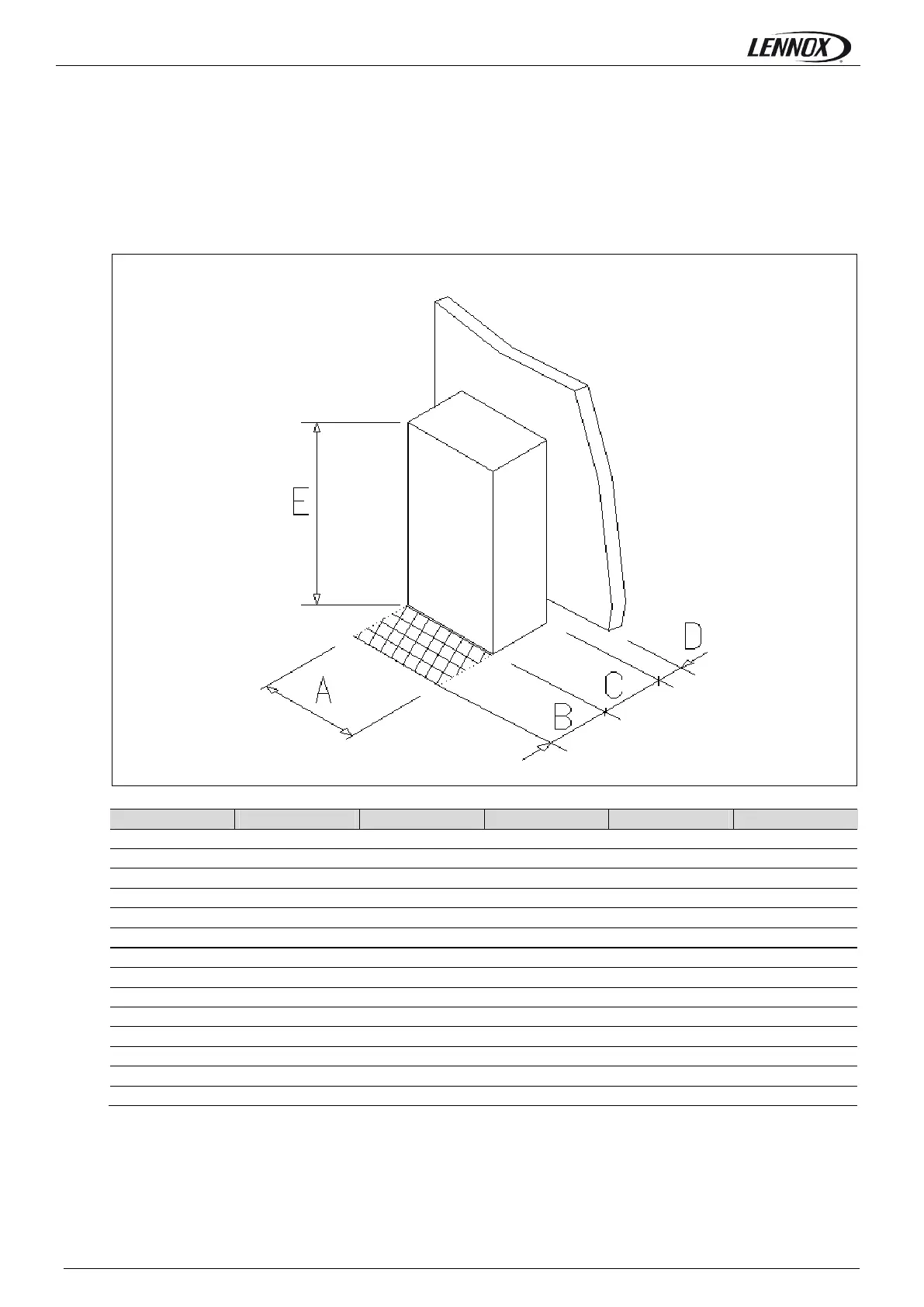

Fig. 5 Service area
MODEL A (mm) B (mm) C (mm) D (mm) E (mm)
DMCDR0080 600 650 600 30 1875
DMCDR0110 600 650 600 30 1875
DMCDR0140 900 650 600 30 1875
DMCDR0160 900 650 600 30 1875
DMCDR0200 900 650 600 30 1875
DMCDR0230 900 650 600 30 1875
DMADR0060 600 650 600 30 1875
DMADR0080 600 650 600 30 1875
DMADR0100 900 650 600 30 1875
DMADR0110 900 650 600 30 1875
DMADR0130 900 650 600 30 1875
DMADR0160 900 650 600 30 1875
DMADR0190 900 650 600 30 1875
DMADR0205 900 650 600 30 1875
The following steps should be carried out to ensure proper installation:
D Apply a anti-vibration rubber lining between the unit and the bottom.
D Positioning the unit on the floor / base frame.
