Lennox INNOV DM R Series

INNOV@ ECFAN DHR -AGU-0912-E • 10 •
Model A (mm) B (mm)
DX version
DHADR0201 - DHAUR0201
DHADR0251 - DHAUR0251
1010 795
DHADR0281 - DHAUR0281
DHADR0311 - DHAUR0311
1270 795
DHADR0401 - DHAUR0401
DHADR0272 - DHAUR0272
DHADR0302 - DHAUR0302
DHADR0362 - DHAUR0362
DHADR0422 - DHAUR0422
DHADR0452 - DHAUR0452
1760 795
DHADR0532 - DHAUR0532
DHADR0592 - DHAUR0592
2020 795
DHADR0602 - DHAUR0602
DHADR0692 - DHAUR0692
DHADR0762 - DHAUR0762
2510 795
DHADR1002 – DHAUR1002
2510 950
DHADR1204 – DHAUR1204
3180 950
1998
B
A

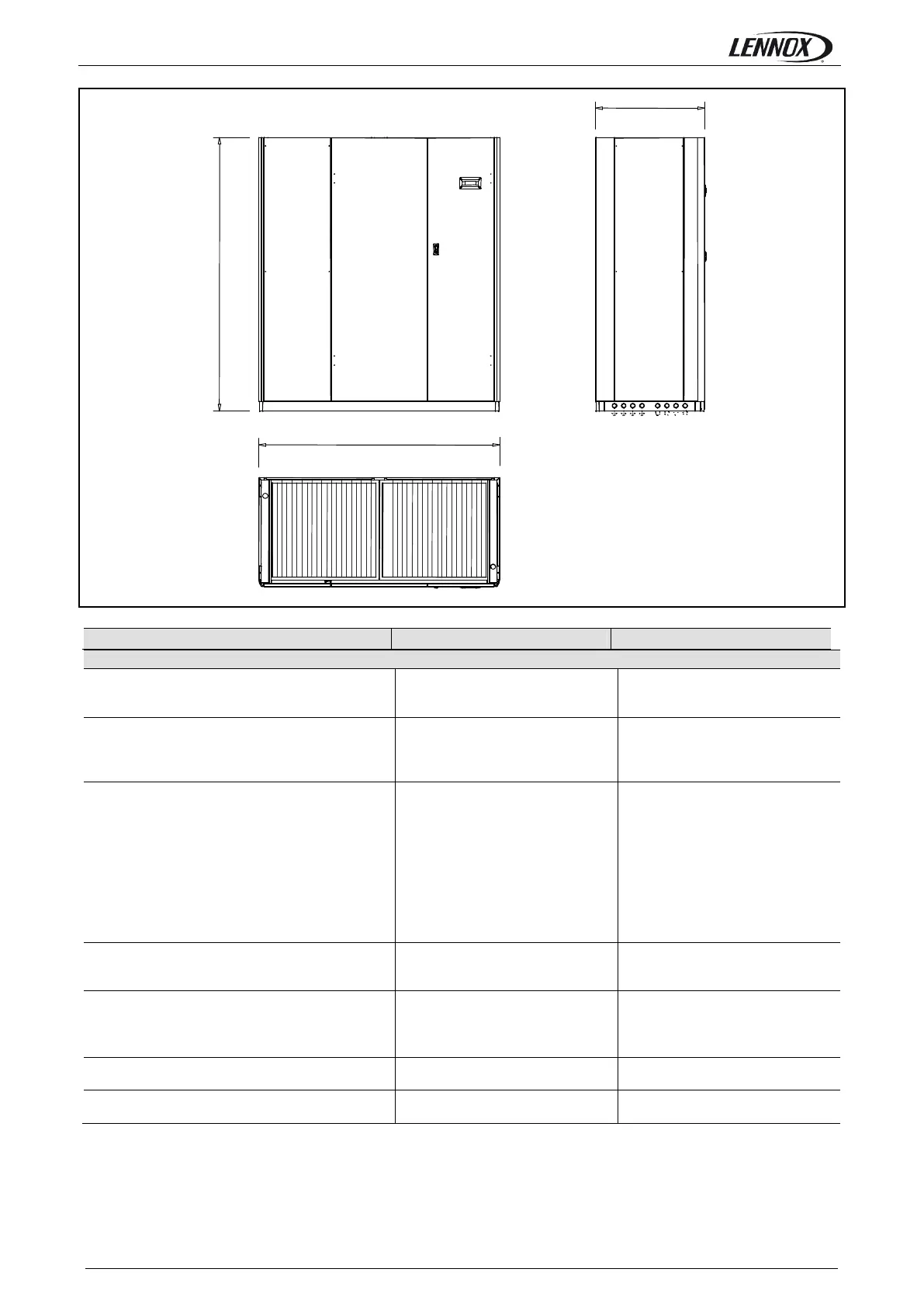

Front view
Lateral view
Bottom
view
