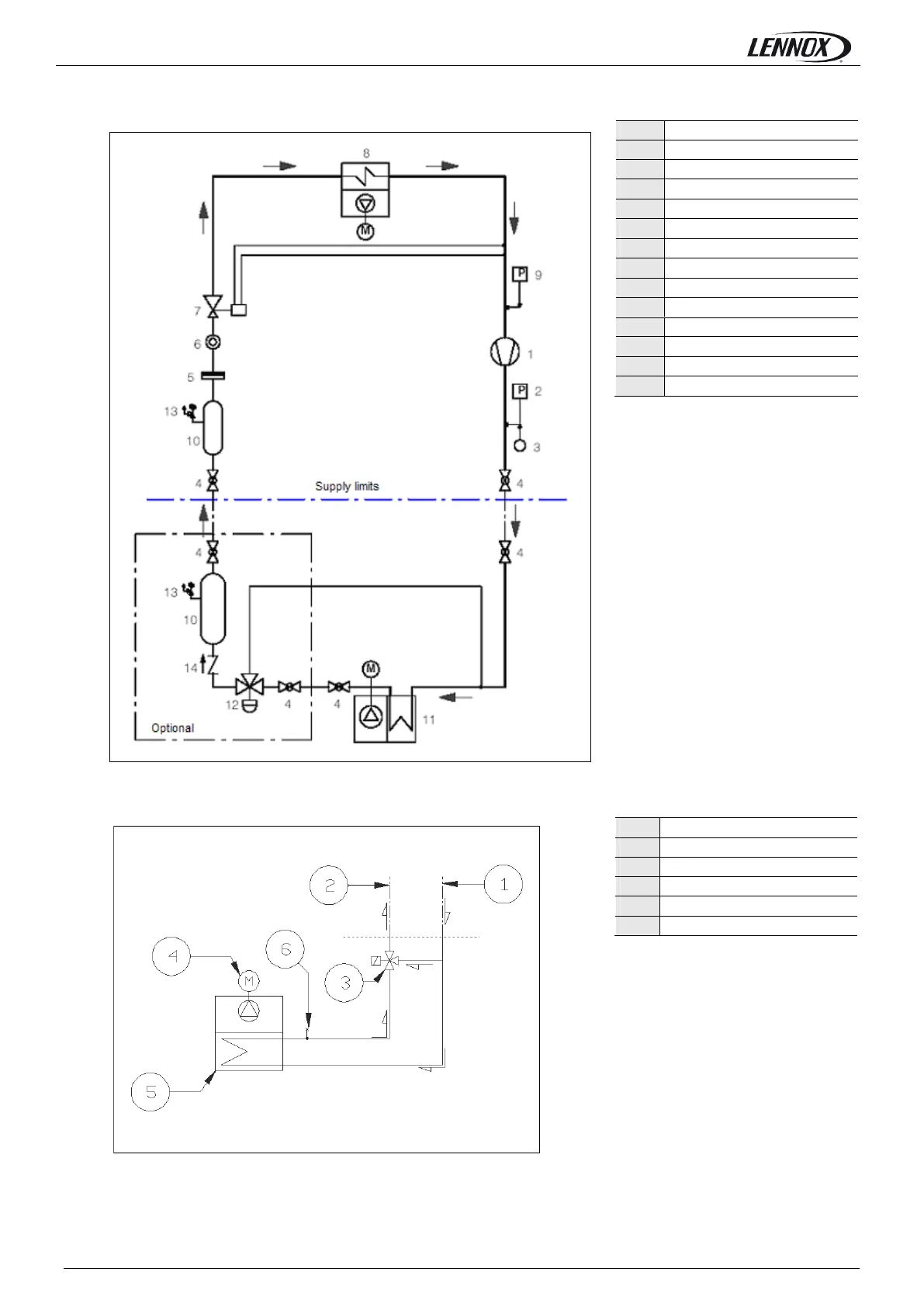

Fig. 3 Basic cooling circuit (DX version)
F
i
g
.
4
B
a
Fig. 4 Basic cooling circuit (CW version)
1 Chilled water inlet
2 Chilled water outlet
3 3-way valve
4 Plug fan
5 Coil heat exchanger
6 Breather valve
1 Compressor
2 HP pressure switch
3 Pressure transmitter
4 Ball valve
5 Refrigerant filter
6 Sight glass
7 Thermostatic valve
8 Evaporating coil
9 LP pressure switch
10 Liquid receiver
11 Remote condenser
12 Flooding valve
13 Safety valve
14 Check valve
