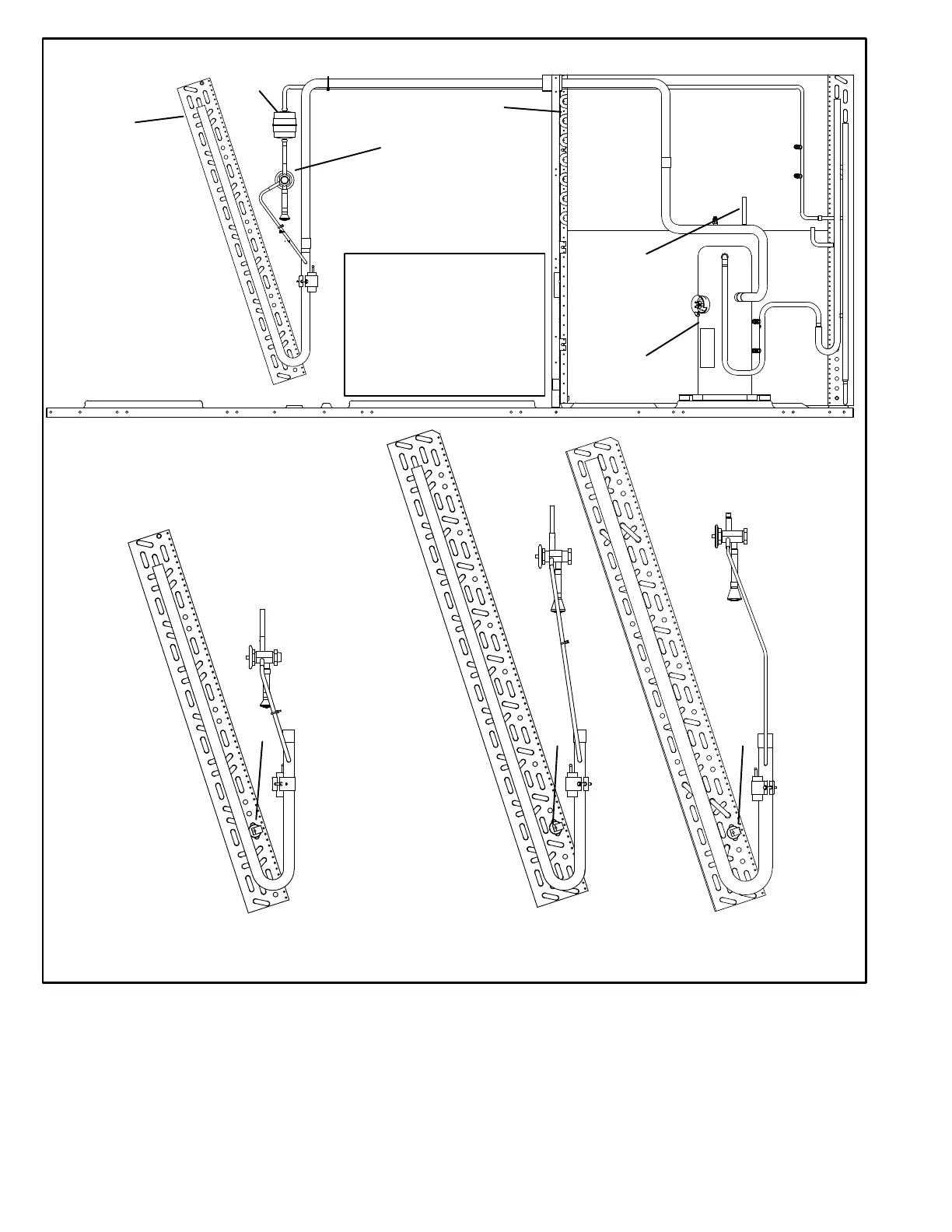

KGB PLUMBING and S49 FREEZESTAT LOCATION
FIGURE 5
EVAPORATOR
COIL
CONDENSER COIL
DRIER
COMPRESSOR
INDOOR BLOWER SECTION
HEAT SECTION
CONTROL AND
COMPONENTS
SECTION
PROCESS TUBE
(used for charging)
RETURN AIR
SECTION
024S, 030S, 036S, 048S
S49 S49
S49
REFRIGERANT
METERING DEVICE
072/074
060, 090
