Page 4
Shipping and Packing List
Package 1 of 1 contains:
1- Assembled unit
Check unit for shipping damage. Receiving party should
contact last carrier immediately if shipping damage is found.
General
These instructions are intended as a general guide
and do not supersede local codes in any way.
Authorities having jurisdiction should be consulted
before installation.
The KG units are available in three heating inputs. The
KC cooling packaged rooftop unit is the same basic
design as the KG unit except for the heating section.
Optional electric heat is available for KC units. KG and
KC units have identical refrigerant circuits with
respective 7-1/2, 8‐1/2, 10, and 12-1/2 ton cooling
capacities.
Units are equipped with a two-speed compressor on
stage 1 and a fixed-speed compressor on stage 2,
allowing for 3 stages of cooling.
Units are equipped with a supply air inverter (variable
frequency drive or VFD). The blower will operate at lower
speeds when demand is low and increase to higher
speeds when demand is high. Refer to Inverter Start-Up
section.
Units come default with a lightweight, all-aluminum
condenser coil. Units are available with an optional,
factory-installed fin/tube condenser coil.
Units equipped with optional fin/tube outdoor coils are
available with an optional hot gas reheat coil which
provides a dehumidifying mode of operation. Refer to
Reheat Operation section.
Availability of units and options varies by brand.
Safety
See figure 1 for unit clearances.
Use of this unit as a construction heater or air conditioner
is not recommended during any phase of construction.
Very low return air temperatures, harmful vapors and
operation of the unit with clogged or misplaced filters will
damage the unit.
IMPORTANT
The Clean Air Act of 1990 bans the intentional vent
ing of refrigerant (CFC's and HCFC's) as of July 1,
1992. Approved methods of recovery, recycling or
reclaiming must be followed. Fines and/or incar
ceration may be levied for non-compliance.
WARNING
Electric shock hazard and danger of
explosion. Can cause injury, death or
product or property damage. Turn off
gas and electrical power to unit before
performing any maintenance or
servicing operations on the unit. Follow
lighting instructions attached to unit
when putting unit back into operation
and after service or maintenance.
NOTICE
Roof Damage!
This system contains both refrigerant and oil.
Some rubber roofing material may absorb oil,
causing the rubber to swell. Bubbles in the rubber
roofing material can cause leaks. Protect the roof
surface to avoid exposure to refrigerant and oil
during service and installation. Failure to follow
this notice could result in damage to roof surface.

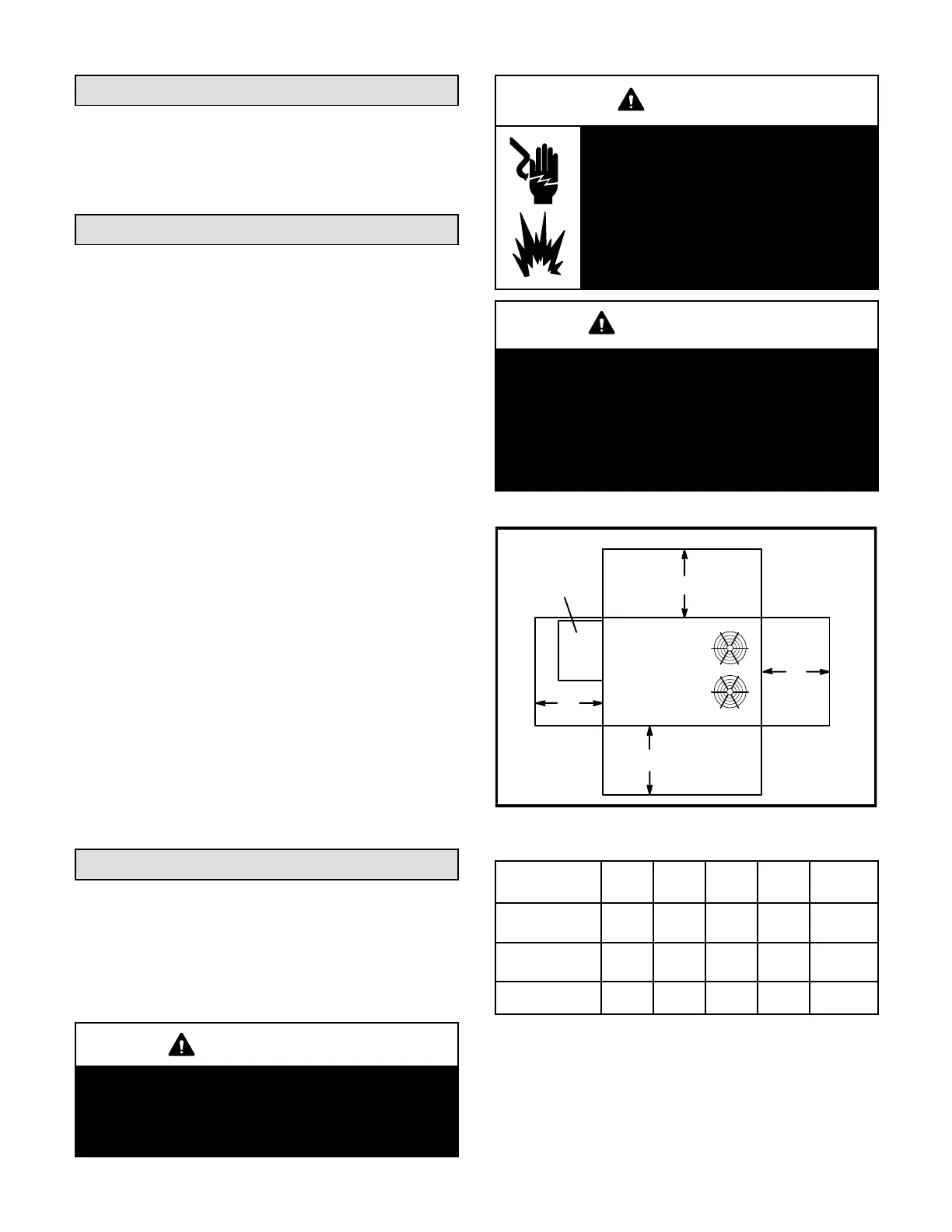

UNIT CLEARANCES
C
D
B
A
Optional
Outdoor
Air Hood
1
Unit
Clearance
A
in.(mm)
B
in.(mm)
C
in.(mm)
D
in.(mm)
Top
Clearance
Service
Clearance
60
(1524)
36
(914)
36
(914)
60
(914)
Unob
structed
Clearance to
Combustibles
36
(914)
1
(25)
1
(25)
1
(25)
Unob
structed
Minimum Opera
tion Clearance
36
(914)
36
(914)
36
(914)
36
(914)
Unob
structed
Note - Entire perimeter of unit base requires support when elevated above
mounting surface.
1
Service Clearance - Required for removal of serviceable parts.
Clearance to Combustibles - Required clearance to combustible material
(gas units). On KCC units, see clearance to combustible materials as
outlined on heater rating plate.
Minimum Operation Clearance - Required clearance for proper unit operation.
