Lennox LCH 036

Page 31
LGH/LCH036, 048, 060, 072

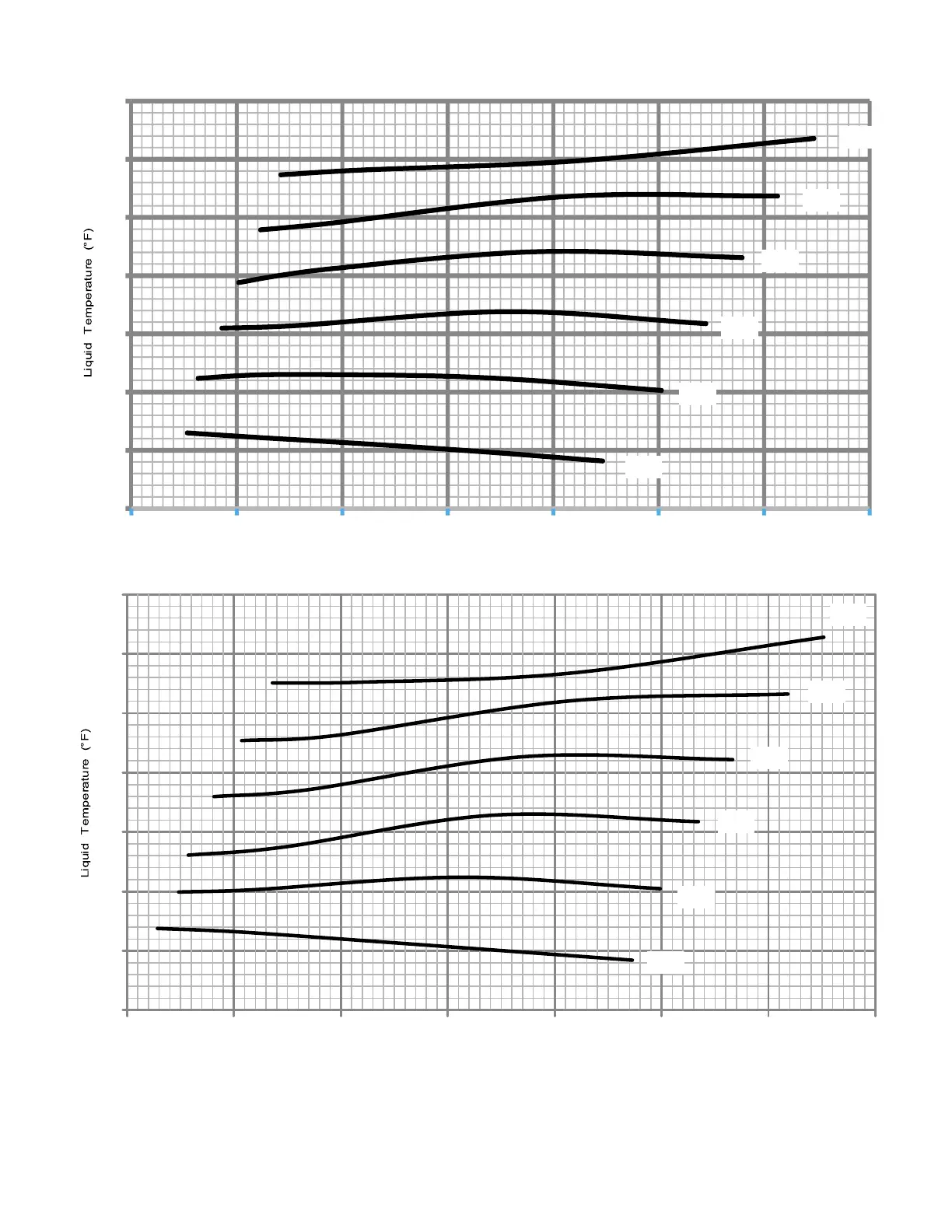

LGH/LCH036S CHARGING CURVE - ALL-ALUMINUM COIL
60
70
80
90
100
110
120
130
110 120 130 140 150 160 170 180
Outdoor Temperature (°F)
Suction Pressure (psig)
105°
95°
115°
85°
75°
65°
60
70
80
90
100
110
120
130
110 120 130 140 150 160
Outdoor Temperature (°F)
170 180
Suction Pressure (psig)
105°
95°
115°
85°
75°
65°
LGH/LCH036H CHARGING CURVE - ALL-ALUMINUM COIL
