Lennox LGT150H Installation Instructions

Page 14

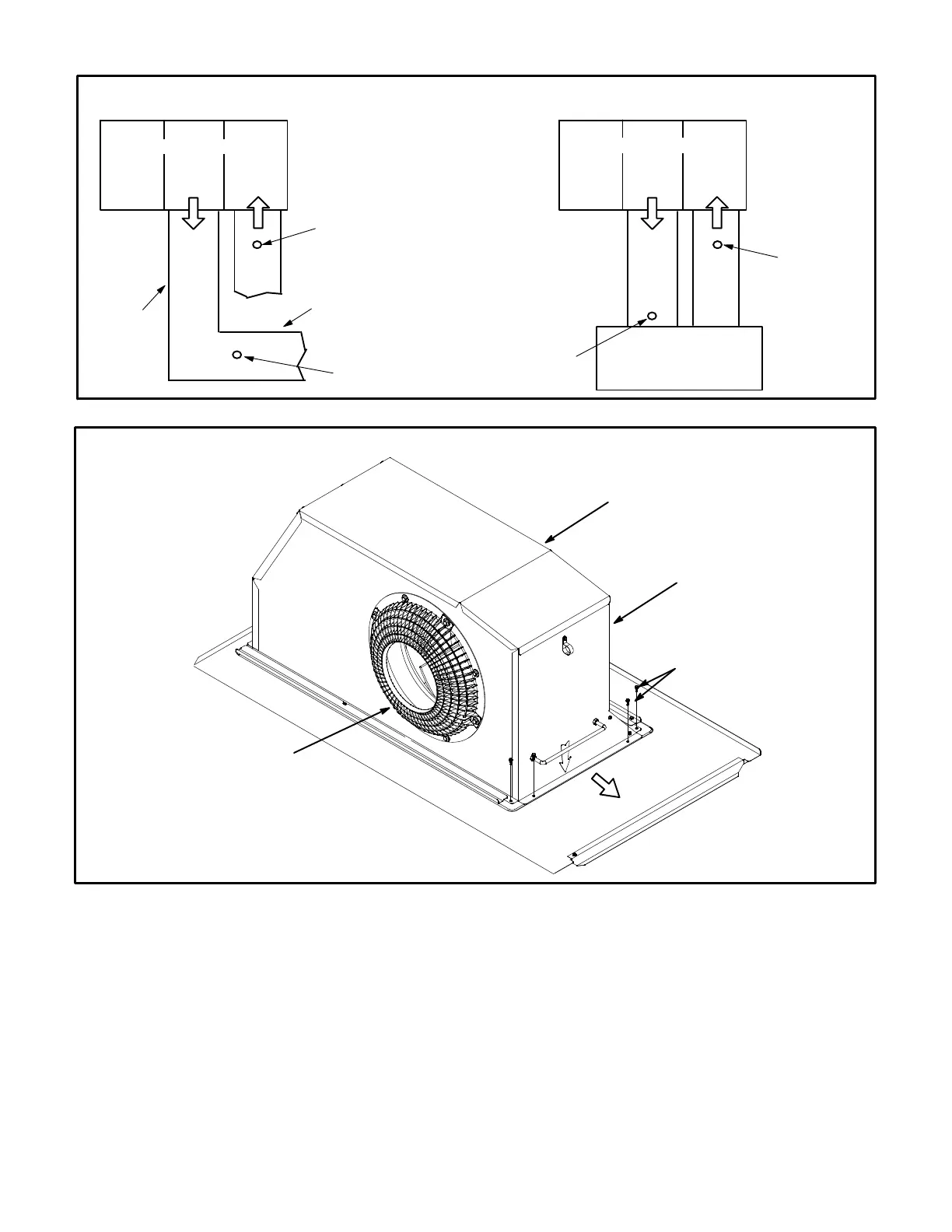

FIGURE 20
LOCATION OF STATIC PRESSURE READINGS
SUPPLY AIR
READING
LOCATION
SUPPLY
RE
TURN
INSTALLATIONS WITH DUCTWORK
SUPPLY
RE
TURN
INSTALLATIONS WITH CEILING DIFFUSERS
MAIN
DUCT RUN
FIRST BRANCH
OFF OF MAIN RUN
DIFFUSER
ROOFTOP UNIT
ROOFTOP UNIT
SUPPLY AIR
READING
LOCATION
RETURN AIR
READING LOCATION
RETURN AIR
READING
LOCATION
DIRECT DRIVE BLOWER ASSEMBLY
FIGURE 21
INLET
GRID
REMOVE TWO SCREWS
ON EACH SIDE TO SLIDE
BLOWER OUT OF UNIT
BLOWER
HOUSING
BLOWER MOTOR
SECURED TO THIS
SIDE OF HOUSING
