FIGURE 24
DETAILS NOT TO SCALE
BLUE
RT49
YELLOW
RT48
23V50
23V50

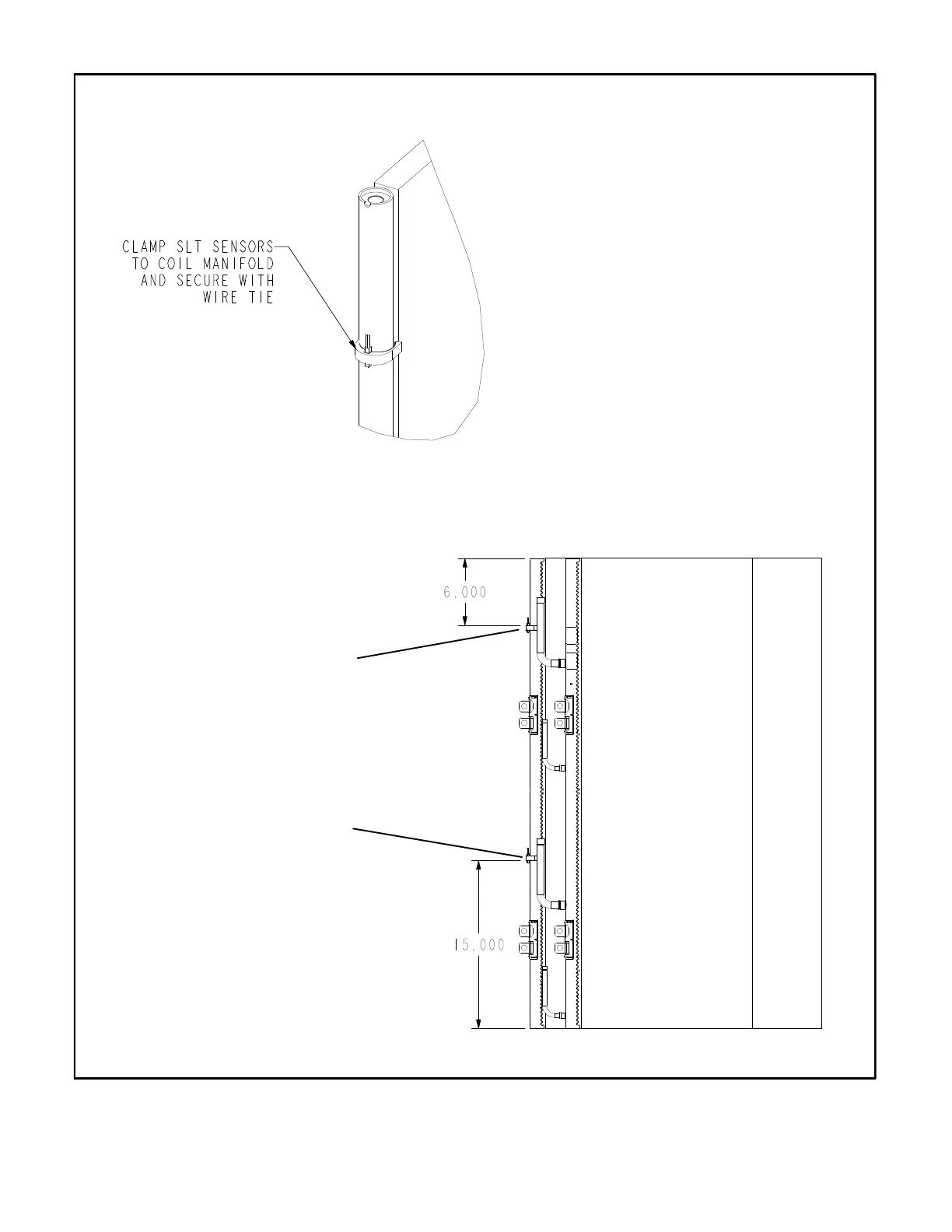

THERMISTOR LOCATION - CONDENSER COIL
RT48, RT49
