Service Manual
Technical Information
12
5.Electrical Part

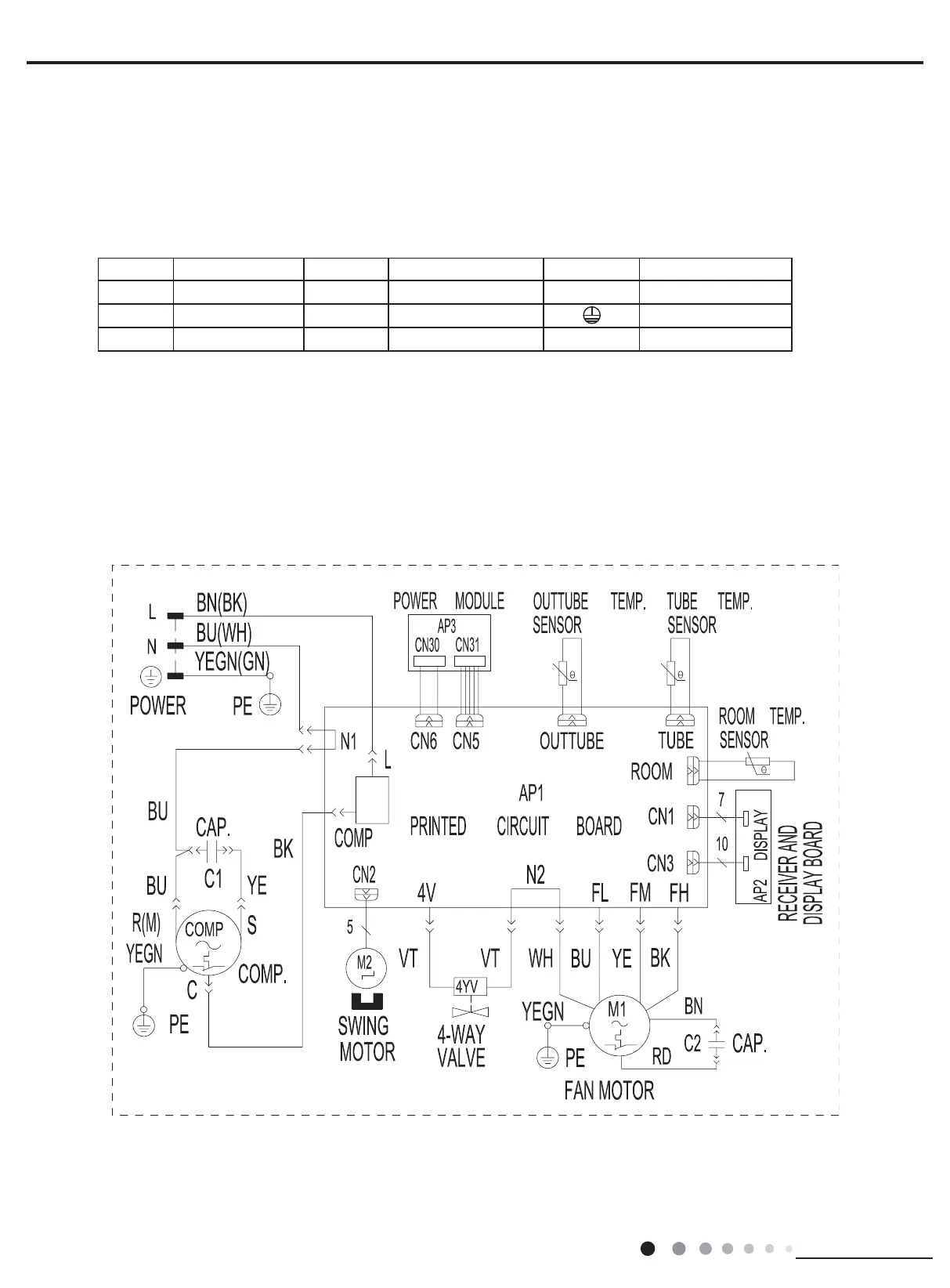

5.1 Wiring Diagram
Symbol Symbol Color Symbol Symbol Color Symbol Name
YE Yellow BN Brown COMP Compressor
RD Red BU Blue Grounding wire
YEGN Yellow-Green BK Black CAP. Capacitor
●Electric Diagram
●Instruction
LNWR21X
LNWR39X
