Outdoor Unit Wiring Diagrams
/

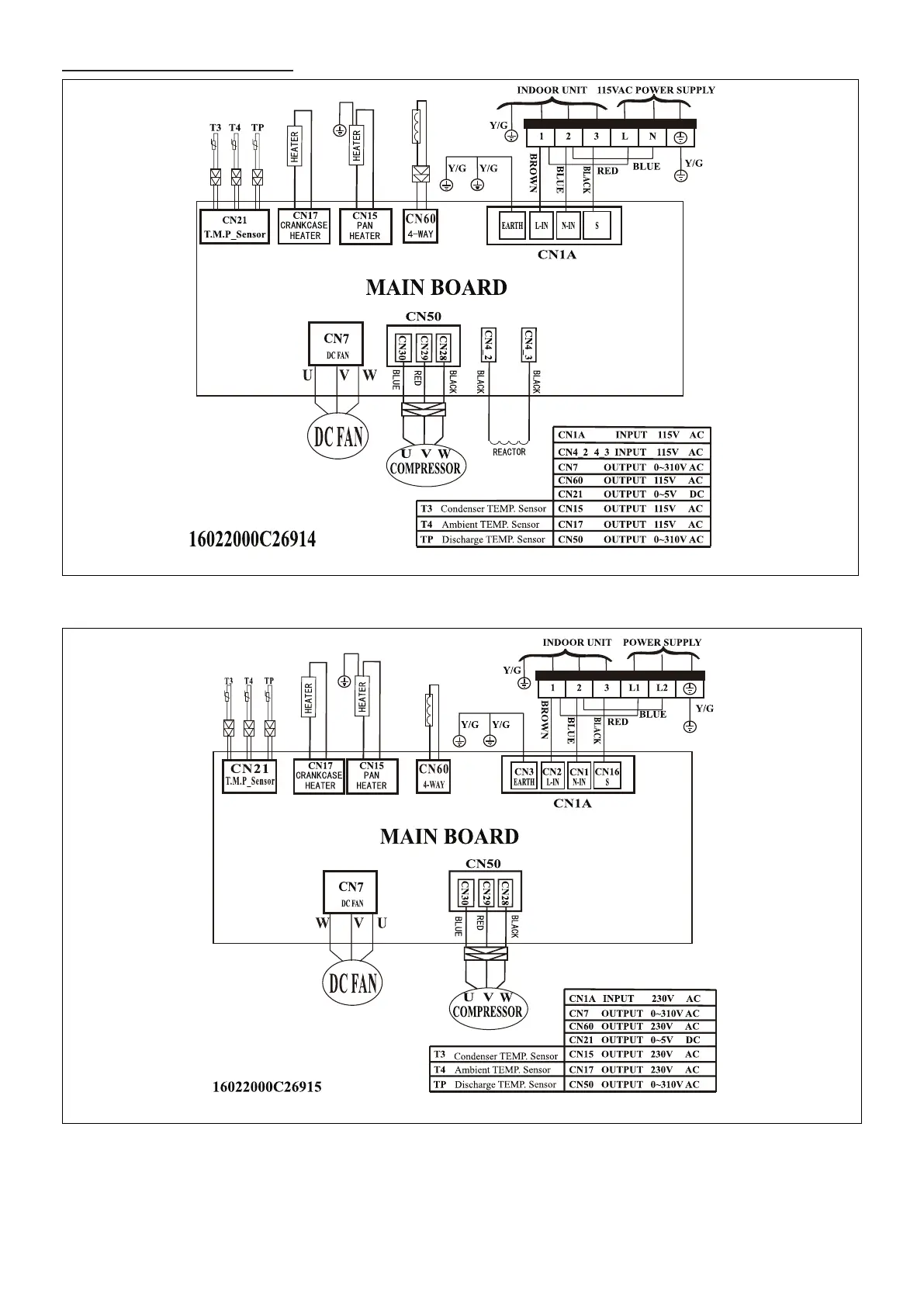

Figure 36. MHB 9K and 12K - 115VAC Outdoor Unit Wiring Diagram
Figure 37. 09K, 12K and 18K - 208/230VAC Outdoor Unit Wiring Diagram
