Removing and Installing Louvered Panels
WARNING
To prevent personal injury, or damage to panels, unit or structure, be sure to observe the following:
While installing or servicing this unit, carefully stow all removed panels out of the way, so that the panels will not cause injury to personnel,
nor cause damage to objects or structures nearby, nor will the panels be subjected to damage (e.g., being bent or scratched).
While handling or stowing the panels, consider any weather conditions, especially windy conditions, that may cause panels to be blown
around and battered.
WARNING
PANEL A
PANEL B
PANEL C
PANEL D
When removing the unit panels. Remove panel A first, then B, C and
finally D. When reinstalling panels, reverse that order starting with panel
D, C, B and finally A.
REMOVAL
Repeat steps 1, 2 and 3
to remove panels B, C
and D.
STEP 1
Starting with panel D. Insert
panel unit unit top cap lip and
lift slightly to clear side lip of
panel from base.
PANEL A
PANEL A
STEP 2
INSTALLATION
Repeat steps 1 and 2 when
installing panels C, B and A.
To remove panel,
remove mounting
screws securing panel
to the unit.
Slightly lift panel A in order
to clear side lips of panel
from base of unit.
STEP 3
Tilt panel out slightly and
pull downward to remove.
STEP 1
STEP 2
Move panel in towards unit. Align
left / right side lips of panel with
groove inserts along left / right
side of unit.
PANEL D
TOP CAP
BASE
SIDE
GROOVE
STEP 3
Secure panel with mounting screws.

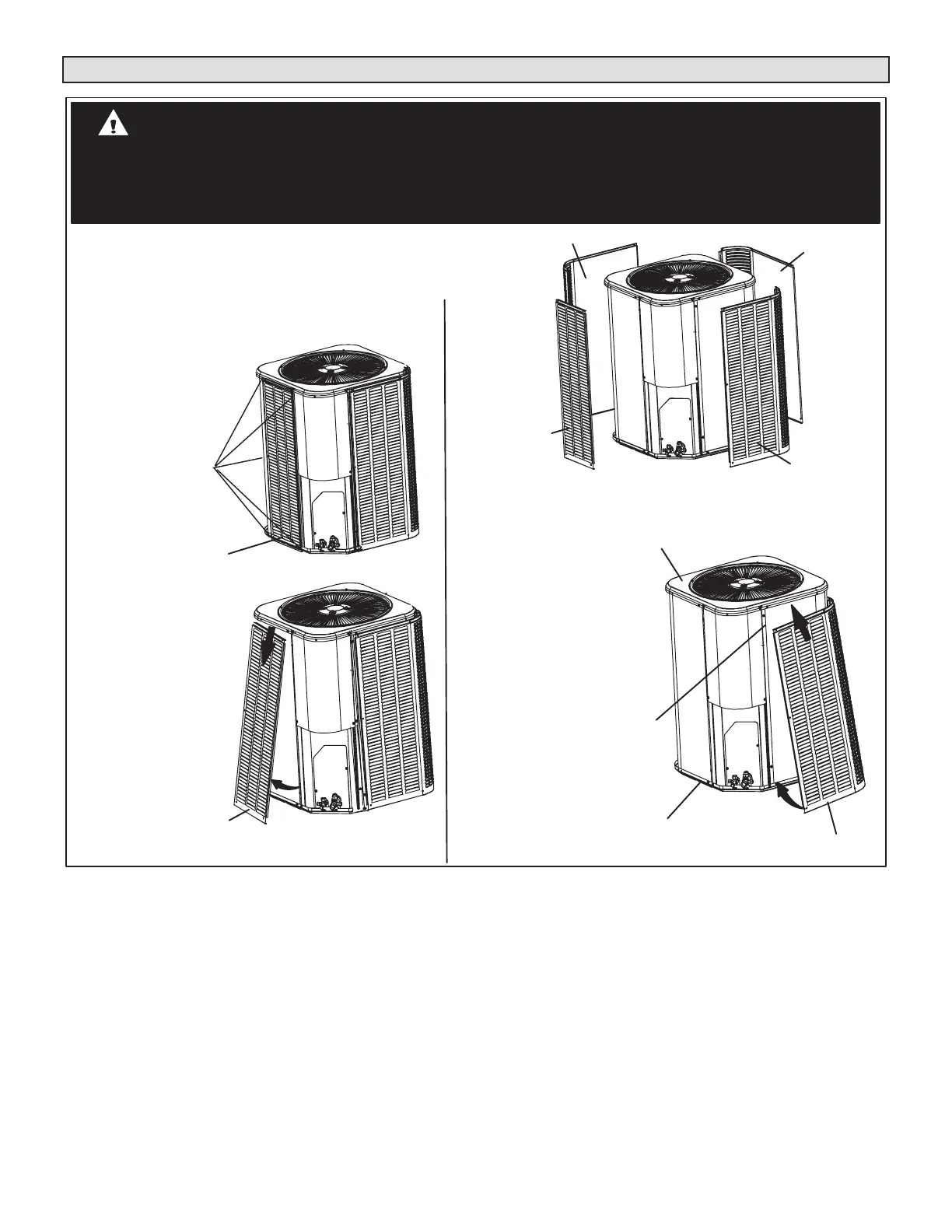

FIGURE 5. Removing and Installing Panels
