Page 22

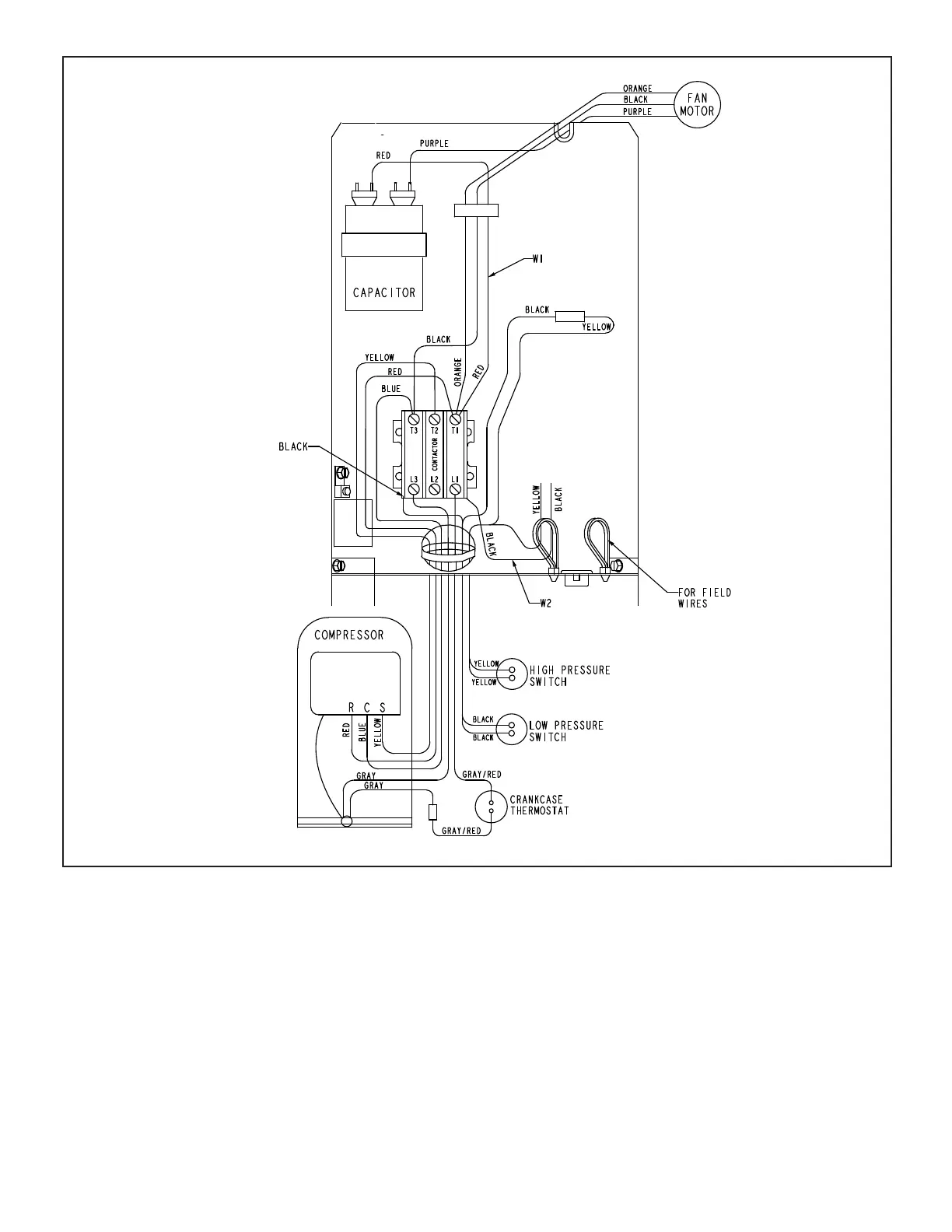

FIGURE 15. Typical Factory Wiring – G and Y Voltages

Other manuals for Lennox ML14XC1 Series

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Lennox ML14XC1 Series and is the answer not in the manual?

Lennox ML14XC1 Series Specifications

General IconGeneral
Compressor TypeSingle-stage
RefrigerantR-410A
Energy Star CertifiedNo
EER Rating11.5
Cooling Capacity (BTU/h)18, 000 to 60, 000
Voltage208/230V
Phase1
Cooling Capacity1.5 - 5 tons
