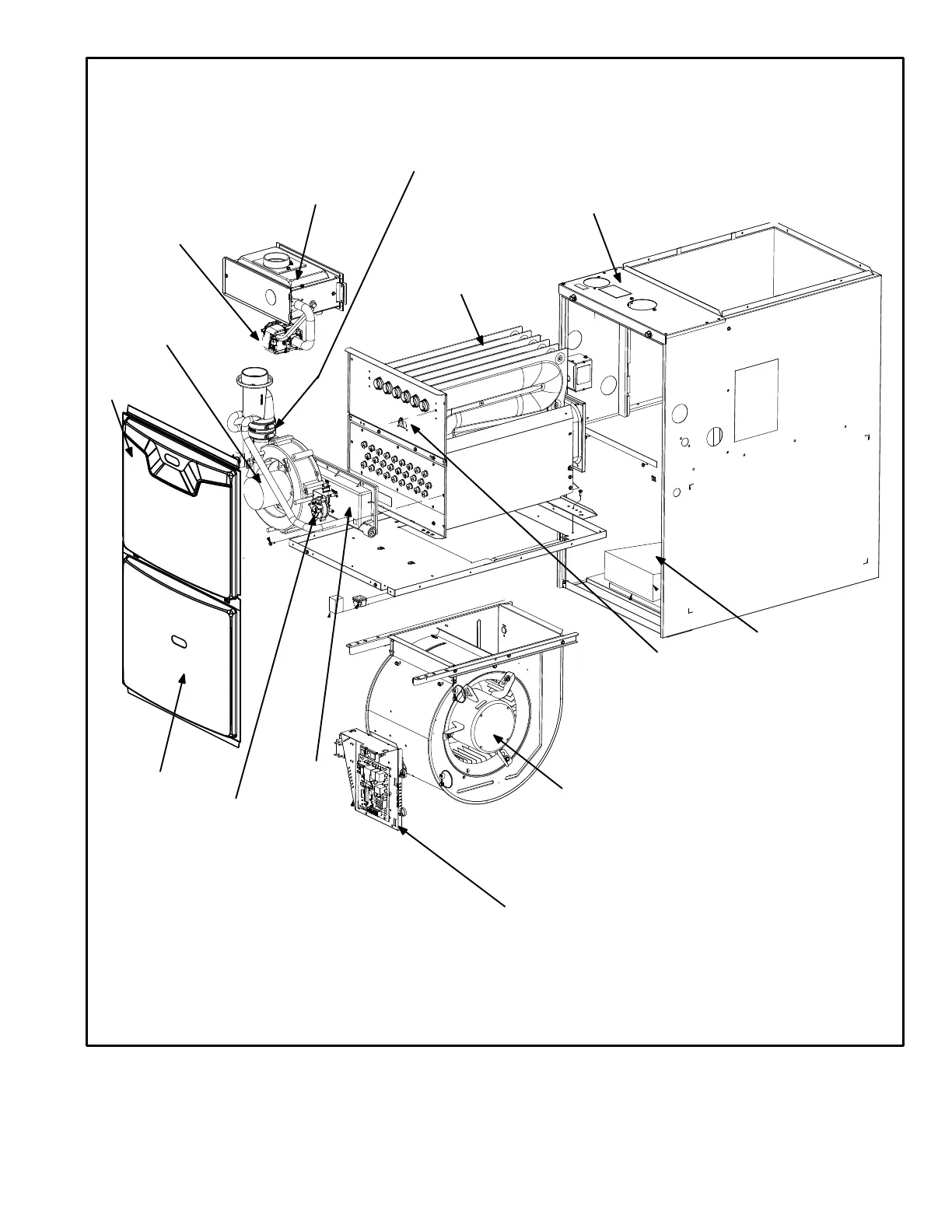

ML196UHE PARTS IDENTIFICATION
FIGURE 1
TOP CAP
BURNER BOX
ASSEMBLY
DuralokPlus
TM
HEAT EXCHANGER
ASSEMBLY
CONTROL BOX
(includes integrated ignition control, trans
former, circuit breaker and interlock switch)
COMBUSTION AIR
INDUCER
BURNER
ACCESS
PANEL
COMBUSTION
AIR PRESSURE
SWITCH
PRIMARY LIMIT
GAS VALVE
BLOWER
ASSEMBLY
FLEXIBLE NO-HUB
EXHAUST COLLAR
COLD END
HEADER BOX
BAG ASSEMBLIES
(shipping location)
BLOWER ACCESS
PANEL
