BLOWER OFF DELAY
RED LED
IGNITION CONTROL 103217-03
FIGURE 3
Electronic Ignition
-
-
-
-
-
-

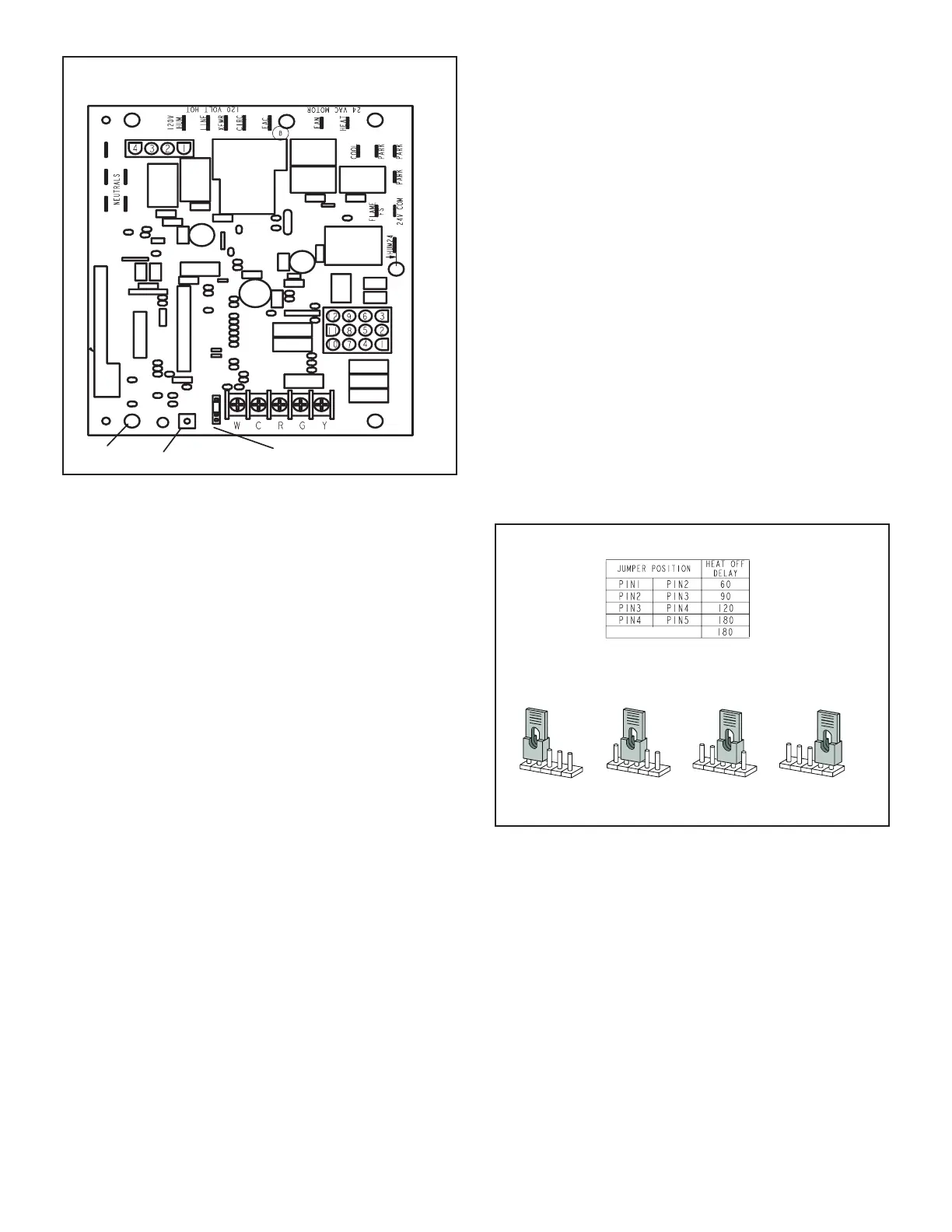

Fan Time Control - Ignition Control 103217-03
Heating Fan On Time
Heating Fan O Time
-
-
-
Cooling Fan On Time
Cooling Fan O Time
HEAT FAN‐OFF TIME IN SECONDS
To adjust fan-off timing, reposition jumper across pins to
achieve desired setting.
NO JUMPER
60
90
120
180
60
90
120
180
60
90
120
180
60
90
120
180
60 Second
off Time
90 Second
off Time
120 Second
off Time
180 Second
off Time
