4.3. Alarm Devices
Mini-Split indoor units can be connected to an alarm device such as a light or buzzer using two dry contacts on the
indoor unit main board.

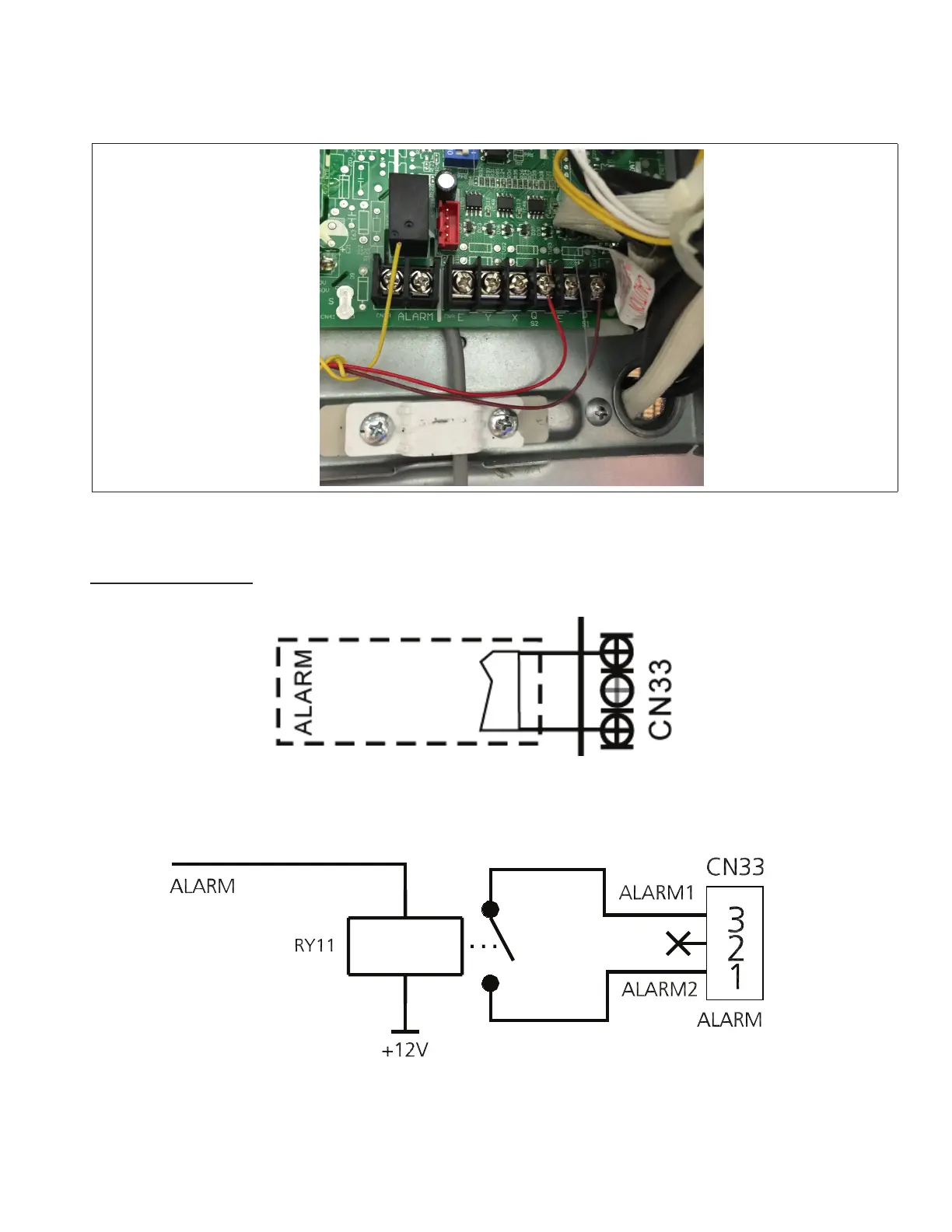

Figure 16. Alarm Device Connection Points (Typical)
4.4. Micro-Switch Introduce
Alarm Terminal Port
(CN33)
Connect the power; it must be less than 24V.
The current is less than 0.5A. If the unit encounters a problem, the relay closes and the alarm functions.
