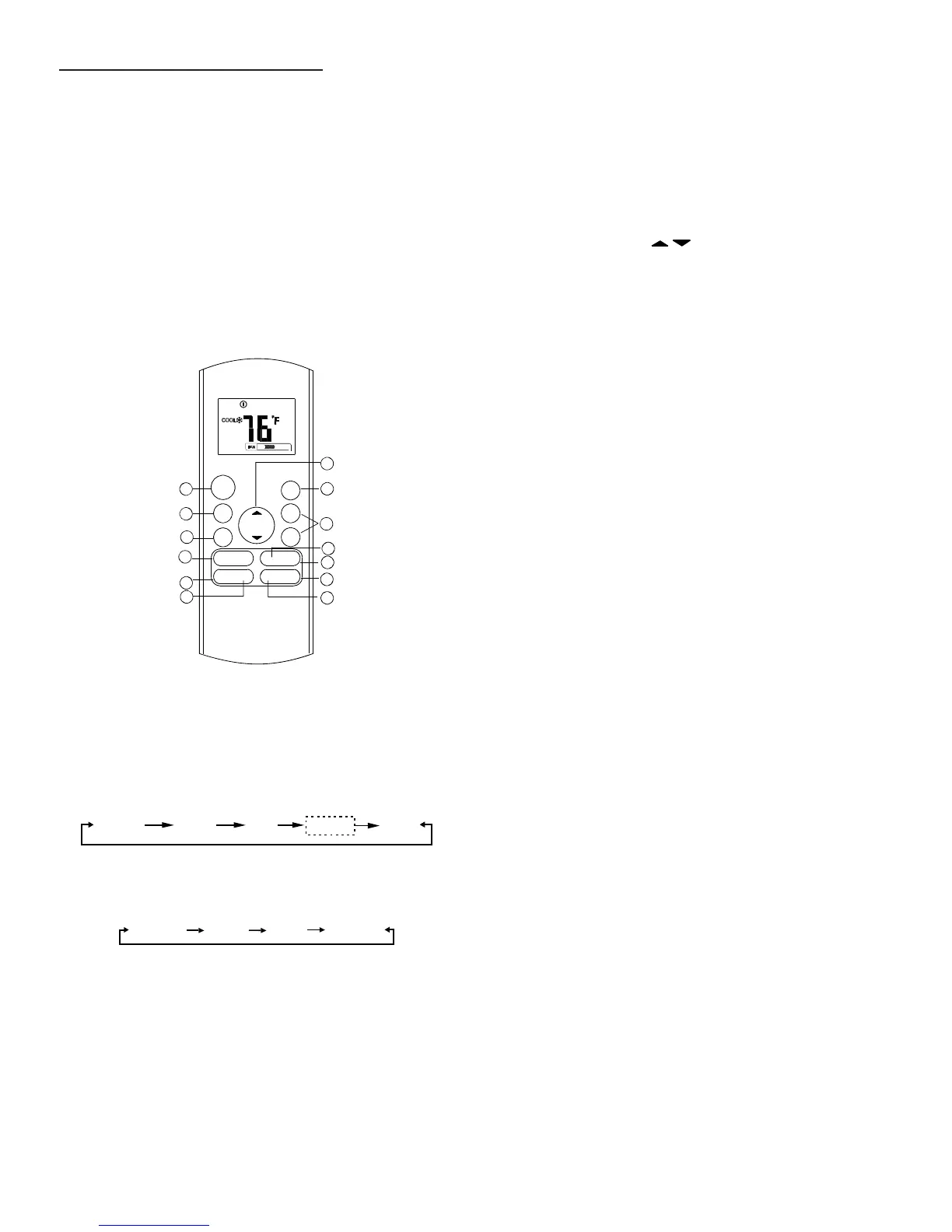

WIRELESS REMOTE CONTROL
Furnished with Wall-Mounted Indoor Units,
Cassette Indoor Units and Ceiling/Floor Indoor
Units.
NOTE - Can be ordered separately for ducted
indoor units.
Complete remote control of system. Maximum
operating range is 25 ft.
Operates on two AAA 1.5V batteries (furnished).
Wireless remote control holder furnished. Holder
can be mounted on a wall for easy access.
Mounting screws furnished.
MODE
FAN
TEMP
SLEEP
ON/OFF
SILENCE
FP
TIMER
ON
TIMER
OFF
1
2
4
3
8
9
7
5
6
11
10
12
13
SWING DIRECT
LED FOLLOW
ME
TURBO SELF
CLEAN
ON/OFF Button
• Turns system on and off.
MODE Button
• Select system operation modes. Push button to
cycle through each setting.
FAN Button
• Select fan speed. Push button to cycle through
each setting.
NOTE - Not available in AUTO or DRY modes.
SLEEP Button
• Enables the system to automatically increase
cooling or decrease heating (in 2°F increments)
per hour for the first 2 hours, then maintain a
steady temperature for 5 hours.
NOTE - To cancel, push the “MODE”, “FAN
SPEED” or “ON/OFF” buttons.
NOTE - SLEEP mode is only available when the
unit is in COOL, HEAT or AUTO mode.
AUTO COOL
DRY
HEAT
FAN
AUTO LOW ME HIGH
D
TURBO Button
• Enables the unit to reach the preset temperature
during cooling or heating operation in the shortest
time.
SELF CLEAN Button
• Automatically cleans and dries the evaporator coil
at the end of the cooling season, preventing any
odors or mildew.
UP/DOWN Buttons
• Increase or decrease the indoor temperature in
one degree increments (maximum 86°F, minimum
62°F).
NOTE - Temperature cannot be adjusted in FAN
mode.
NOTE - Press and hold and buttons together for
3 seconds to alternate the temperature display
between the °C and °F scale.
SILENCE/FP Button
• Silence - Operates the compressor at low
frequency and low fan speed to reduce operating
sound levels to a minimum.
• FP - Only available during heating operation. Unit
will operate at a set temperature of 46°F.
NOTE - To cancel, push the “ON/OFF”, “SLEEP”,
“FP”, “MODE”, “FAN SPEED”, “UP/DOWN”
buttons.
TIMER ON / TIMER OFF Buttons
• TIMER ON (initiates an auto-on time sequence)
and TIMER OFF (initiates an auto-off time
sequence) can be used separately or together.
Each press of the button increases the time in 30
minute increments up to 10 hours. Above 10 hours
each press of the button will increase the auto-timed
setting by 60 minutes up to 24 hours.
NOTE - To cancel, set timer to 0.0 or turn remote
off and on.
SWING Button
• Used to stop or start horizontal louver auto swing
feature.
DIRECT Button
• Used to change the louver movement and set the
desired up/down air flow direction.
• The louver angle changes 6° for each press of the
button.
FOLLOW ME Button
• Allows remote temperature sensing of the room at
the remote control location.
LED Button
• Turns the LCD display backlight on the indoor unit
on or off.
To Next Page
