WIRELESS REMOTE CONTROL OPERATION

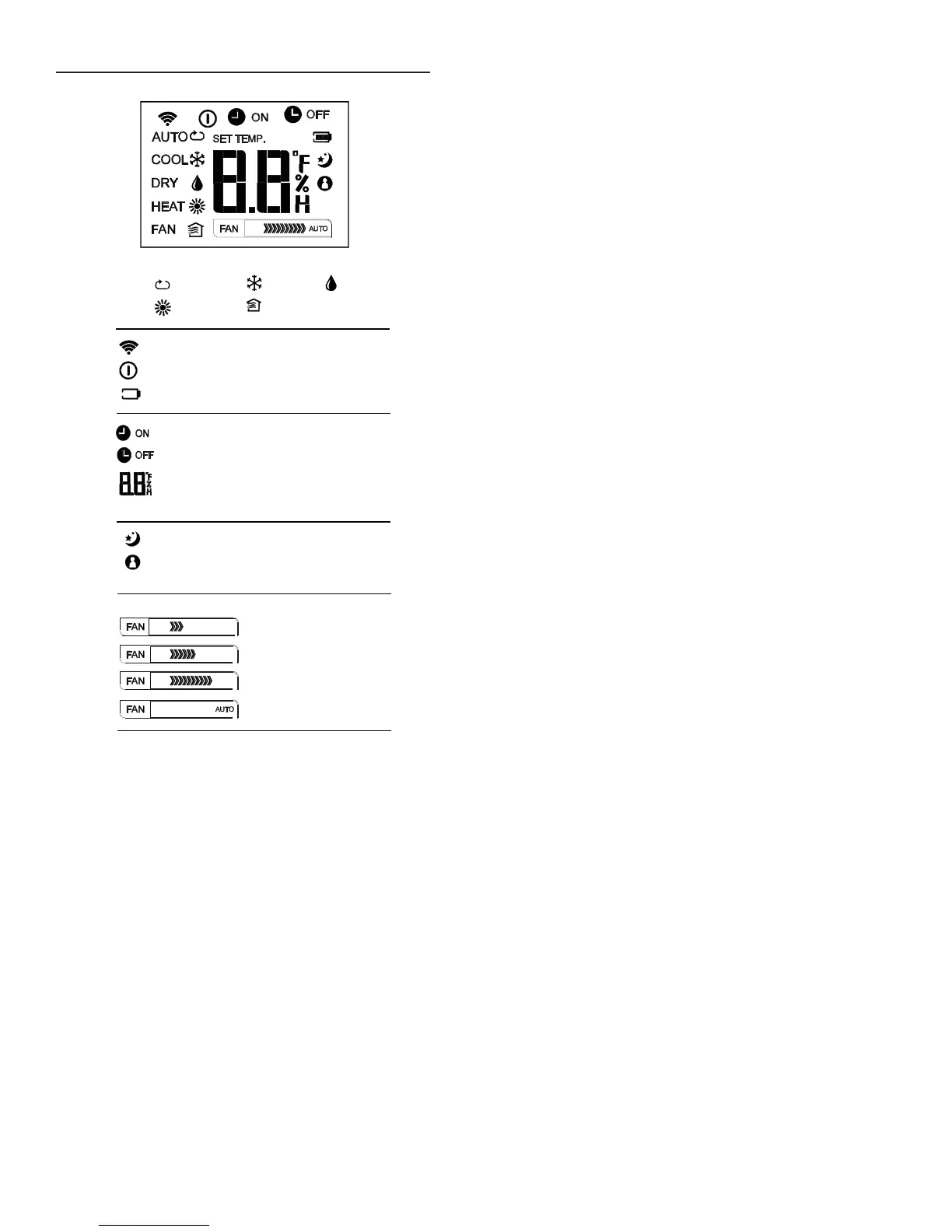

Fan speed indication
Mode display
Displayedwhendatatransmitted.
Displayed when remote controller is ON.
Battery display (low battery detection)
Low speed
Medium speed
High speed
Auto fan speed
Displayed when TIMER ON time is set.
Displayed in Sleep Mode operation.
Indicated that the air conditioner is
operating in Follow me mode
Displayed when TIMER OFF time is set.
Show set temperature or room
temperature, or time under TIMER
setting.
AUTO
HEAT FAN
COOL DRY
Note - During unit operation only the active functions
will be shown on the display.
Auto Operation
1. Press the MODE button to select Auto.
2. Press the UP/DOWN button to set the desired
temperature. The temperature can be set within a
range of
3. Press the ON/OFF button to start the air
conditioner.
Cooling /Heating/Fan Operation
1. Press the MODE button to select COOL, HEAT or
FAN mode.
1. Press the UP/DOWN buttons to set the desired
temperature.
1. Press the FAN button to select the fan speed in
four steps- Auto, Low, Med,or High.
1. Press the ON/OFF button to start the air
conditioner.
Dehumidifying Operation
1. Press the MODE button to select DRY mode.
2. Press the UP/DOWN buttons to set the desired
temperature.
3. Press the ON/OFF button to start the air
conditioner.
Timer ON/OFF Operation
1. Press the TIMER ON or TIMER OFF button. The
remote controller shows TIMER ON or TIMER
OFF icon, the previous Auto-on time setting and
the signal “H” will be shown on the LCD display
area.
2. Push the TIMER ON or TIMER OFF button
again to set desired time. Each time you press
the button, the time increases by 30 minutes
between 0 and 10 hours and by 60 minutes
between 10 and 24 hours.
3. After setting the TIMER ON or TIMER OFF there
will be a one second delay before the remote
control transmits the signal to the unit. After
approximately 2 seconds, the signal “H” will
disappear and the set temperature will re-appear
on the LCD display window.
