Lennox Mini-Split Service Manual / Page 221

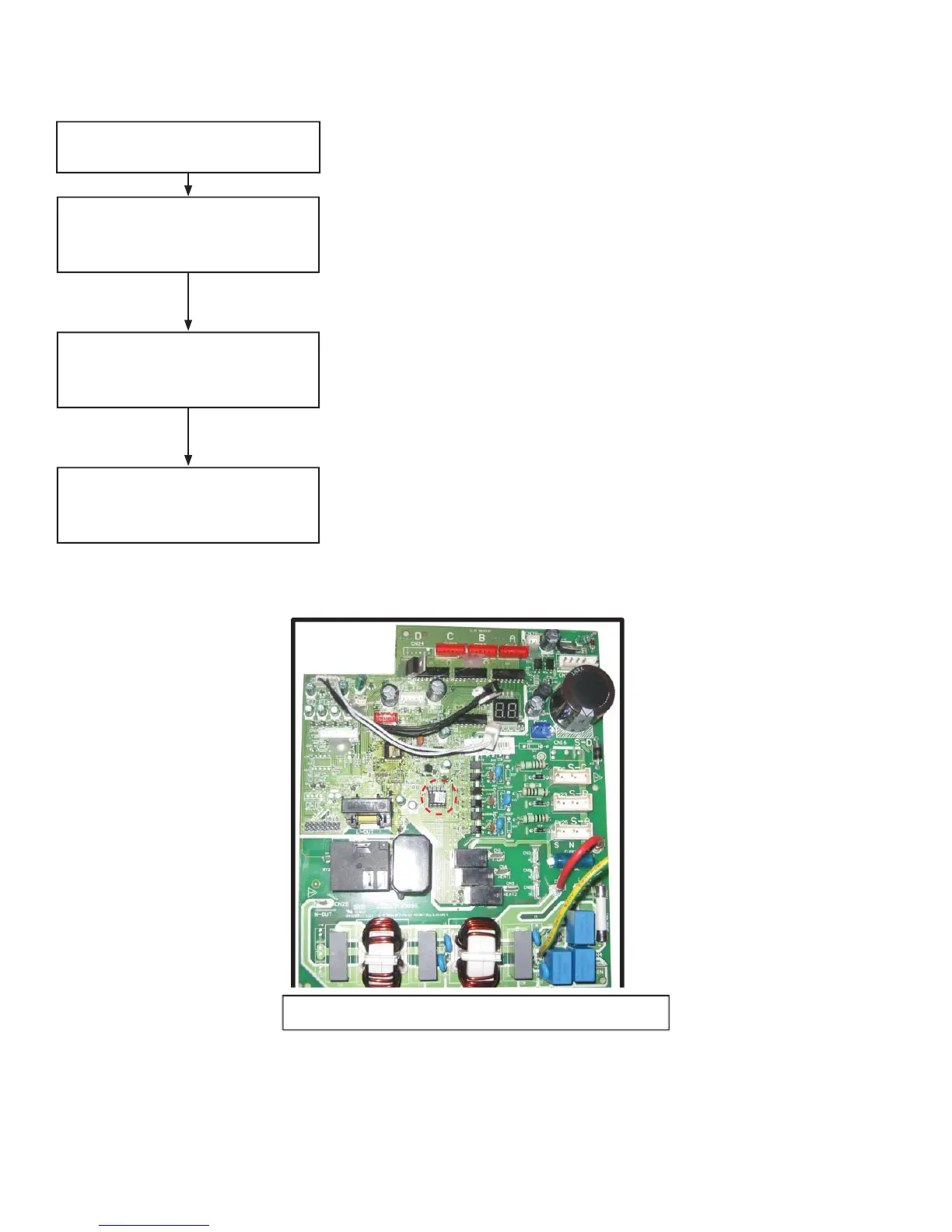

F4 Flow Chart
Outdoor EEPROM malfunction
Power off, then restart the unit 3 minutes
later
.
Ye
s
Does the problem still exist?
Outdoor P
CB(M3
OC-30
HRFN1-M)
Ye
s
Replace the outdoor main PCB.
