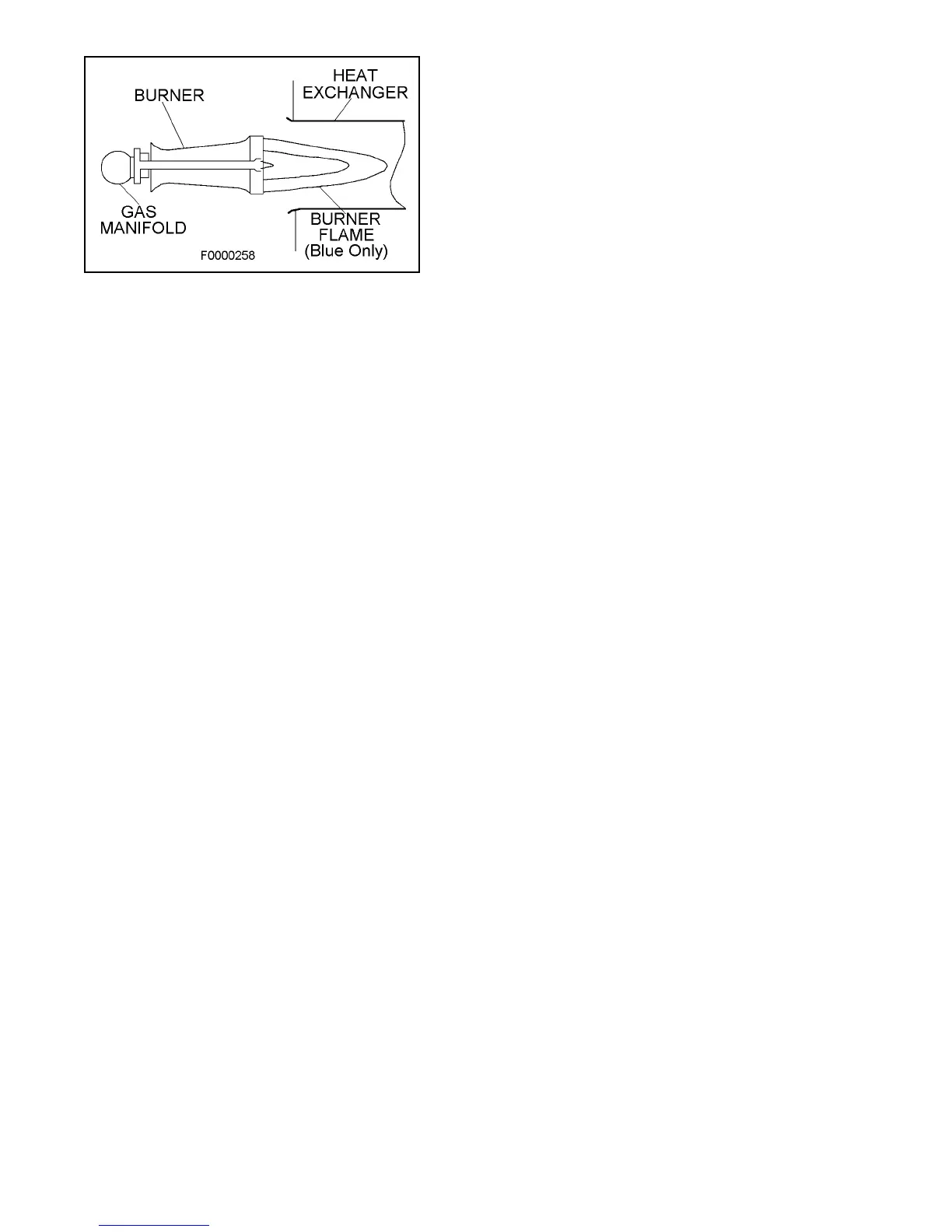

Figure 3
Do not attempt to adjust flame! Your service
representative will perform this adjustment correctly.
Warranty Procedure
When warranty parts are required:
1. Be prepared to furnish the following information:
a. Purchaser's name
b. Complete model number, serial number, and
date of installation.
c. An accurate description of the problem or
defective parts.
2. Contact your dealer or distributor.
Keep this User's Information Manual (including
Warranty) and proof of purchase for your records.
Your warranty is determined from your date of
installation. If proof of your date of installation is not
supplied, the warranty will be based on the
manufacture date code.
Failure to follow the correct warranty procedure could
result in disallowance of warranty claim.
PARTS REPLACEMENT INFORMATION GUIDE
CASING GROUP GAS CONTROL GROUP BLOWER GROUP
Top Panel Manifold Blower Housing
Front Door Burner Blower Motor
Blower Door Shield Top & Bottom Blower Wheel
Orifice Capacitor
Ignitor Blower Support Leg
Gas Control
Sensor
ELECTRICAL GROUP HEAT EXCHANGER GROUP INDUCER GROUP
Access Door Primary Heat Exchanger Pressure Switch
Limit Switch Burner Inlet Plate Inducer Blower & Motor
Fan Timer Control Board Flue Box
Transformer
Rollout Switch
Door Interlock Switch
Auxiliary Limit Switch
TO OBTAIN INFORMATION ON PARTS: Consult your installing dealer or classified section of your local
telephone directory under the "Heating Equipment" or "Air Conditioning Contractors & Systems" headings for dealer listing
or see the first page of the installation instruction section of this manual for the name and address to contact.
Have available the Model No. and Serial No. located on the unit rating plate to insure correct replacement part.
WARNING: Improper installation, adjustment, alteration, service or maintenance can cause personal injury or property
damage. Consult a qualified installer, service agency, or your local gas supplier for information or assistance.
20541401 Issue 0229 Page 6 of 6
