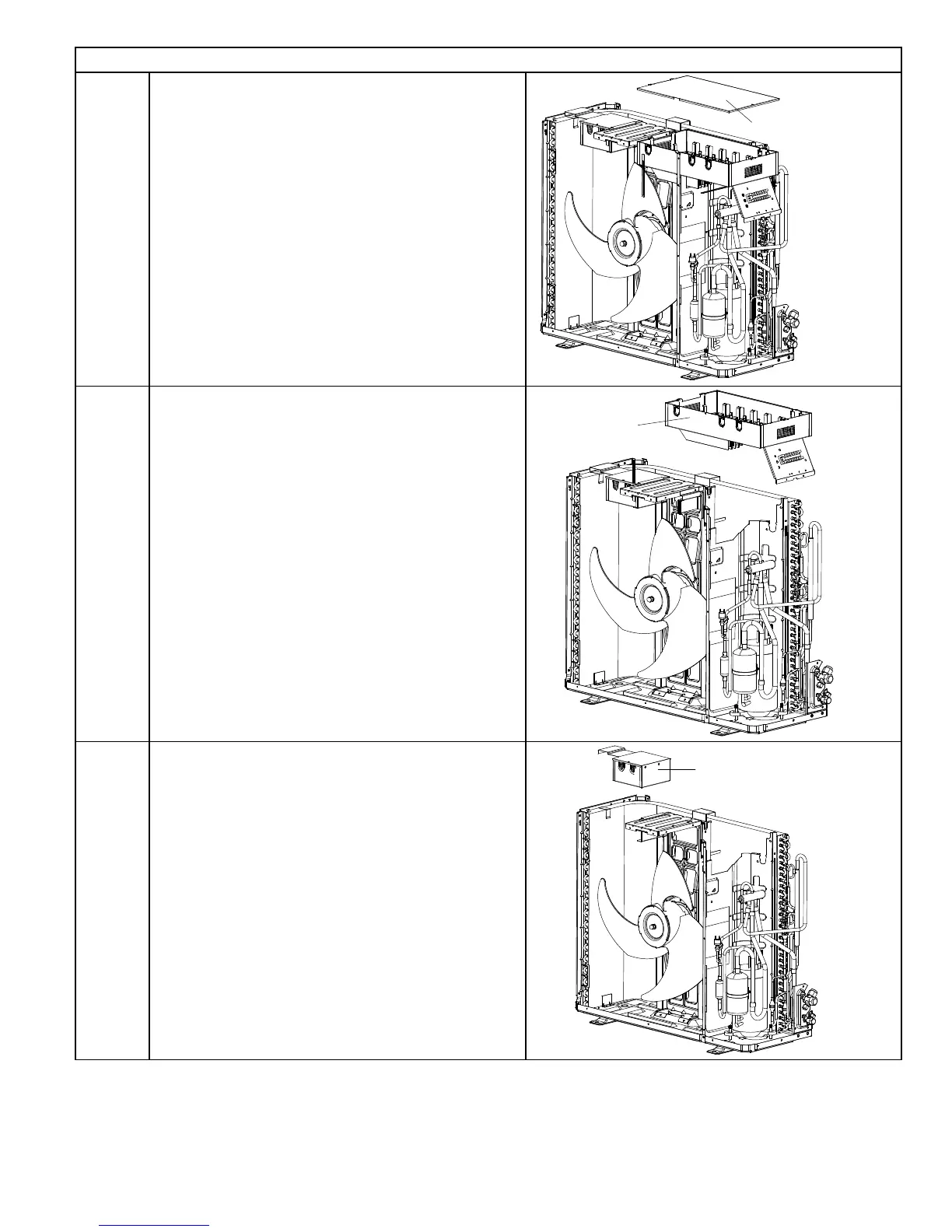

6. Remove electric box
A * Remove screws securing electric box cover.
* Remove cover.
ELECTRIC BOX COVER
B * Remove screws securing the electric box.
* Pull out the wiring terminal by cutting the tie straps.
* Pull electric box upwards to remove.
ELECTRIC BOX
C * Remove screws securing the electric box 2 to the
left-side plate.
* Pull box upwards to remove.
ELECTRIC BOX 2
