MS8C / MS8H (208-230V)

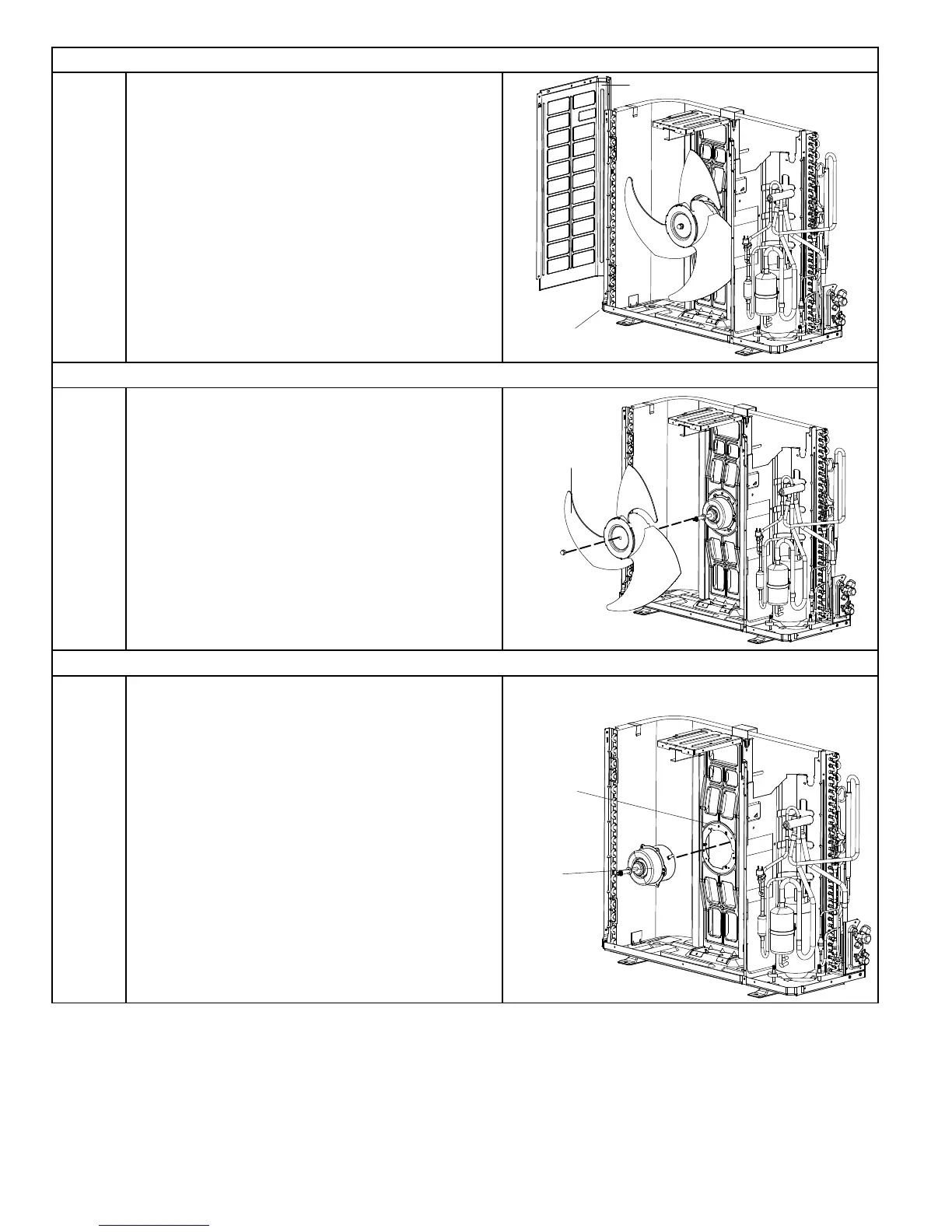

7. Remove left-side plate
* Remove screws securing the left-side plate with
the chassis.
* Remove left-side plate.
LEFT-SIDE PLATE
CHASSIS
8. Remove axial flow blade
Remove the nut that secure the fan blade to the fan
motor shaft. Remove fan blade.
FAN BLADE
NUT
9. Remove motor and motor support
A * Disconnect fan motor wiring harness.
* Remove screws that secure the fan motor to the
fan motor support.
* Remove motor.
FAN
MOTOR
FAN MOTOR
SUPPORT
