Lennox MS8 SERIES

Page 95
Corp. 1244-L9

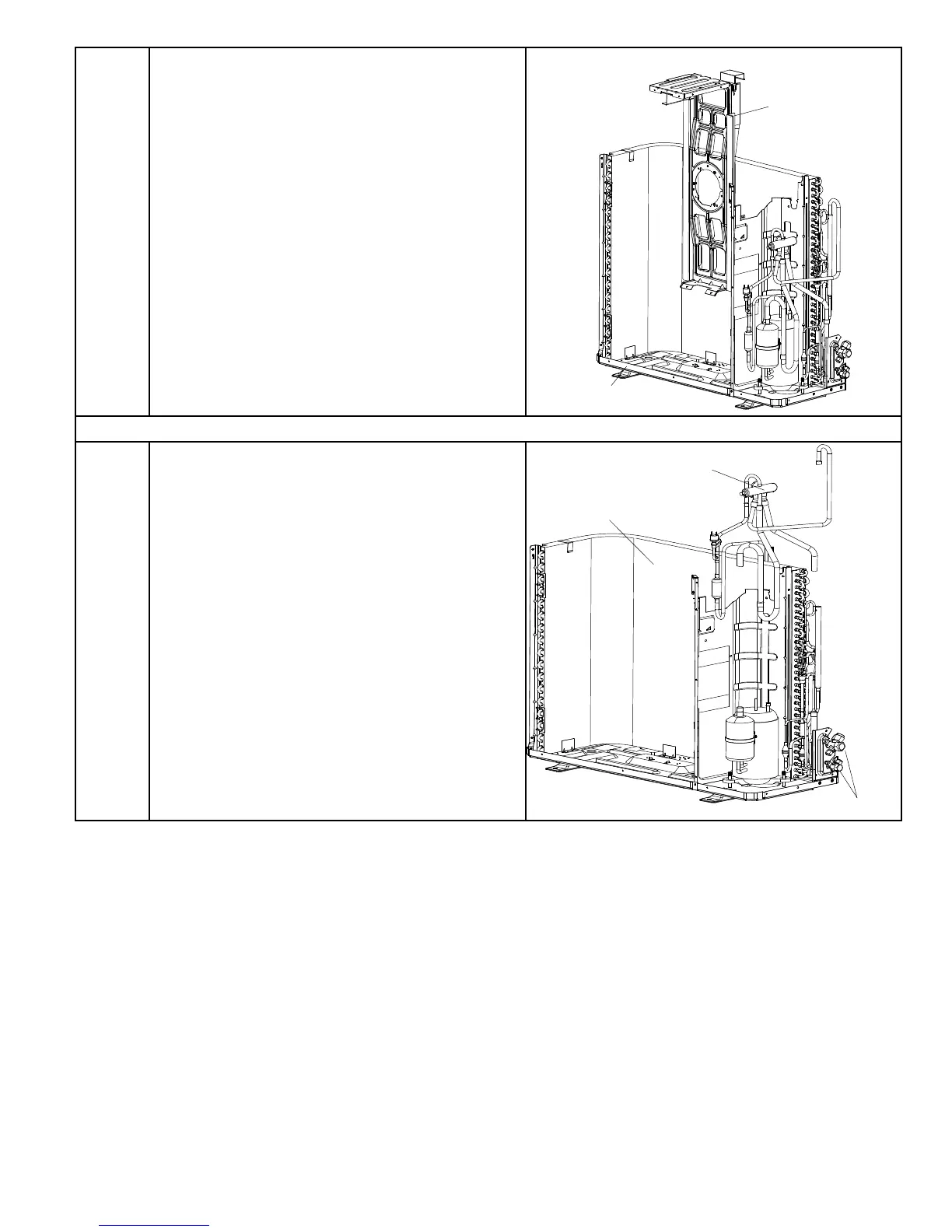

B * Remove screws that secure the fan motor support
to the chassis.
* To remove, pull assembly upwards.
FAN MOTOR
SUPPORT
CHASSIS
10. Remove Reversing Valve
De-braze the piping between the following
components:
* Compressor
* Outdoor coil
* Valves
Remove reversing valve.
REVERSING VALVE
VALVES
OUTDOOR COIL
