Lennox MS8 SERIES

Page 96
MS8C / MS8H (208-230V)

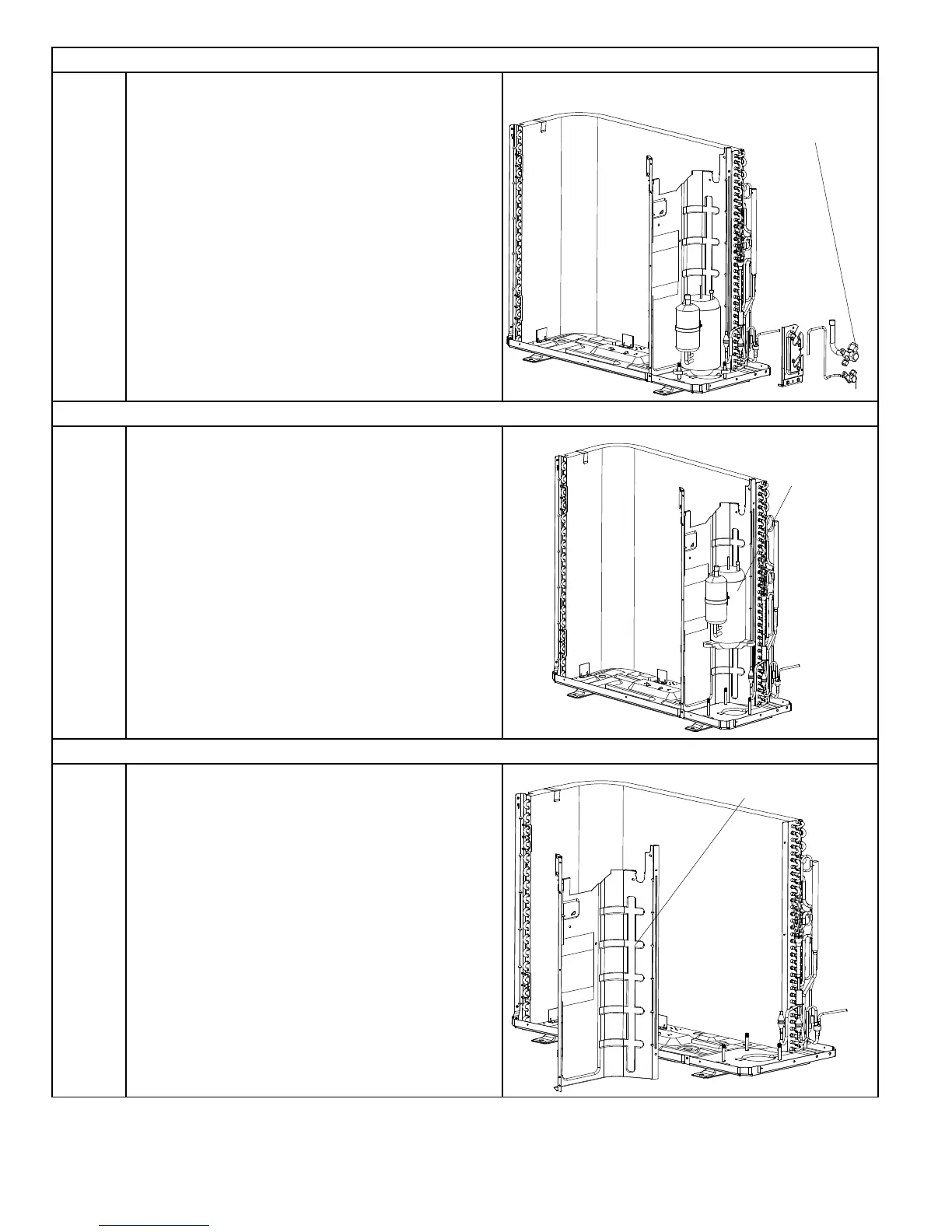

11. Remove 2-Way Shutoff and 3-Way Service Valves
* Remove bolts securing the valve assembly.
* De-braze joint between 3-way service valve and
air-return pipe and remove valve.
* De-braze solder joint between 2-way shut-off
valve and connection pipe of valve and remove
valve.
IMPORTANT — Wrap both valves with water
saturated cloths before de-brazing valves. Water
saturated cloths must remain water saturated
throughout the de-brazing and cool-down process.
3-WAY VALVE
12. Remove Compressor Assembly
* Remove the three bolts at the base of the
compressor assembly (compressor and
accumulator).
* Remove compressor assembly.
compressor
COMPRESSOR
ASSEMBLY
13. Remove Isolation Sheet
* Remove screws securing the isolation sheet and
end plate of the coil and chassis.
* Remove isolation sheet.
ISOLATION
SHEET
