Lennox MWCB Series

45

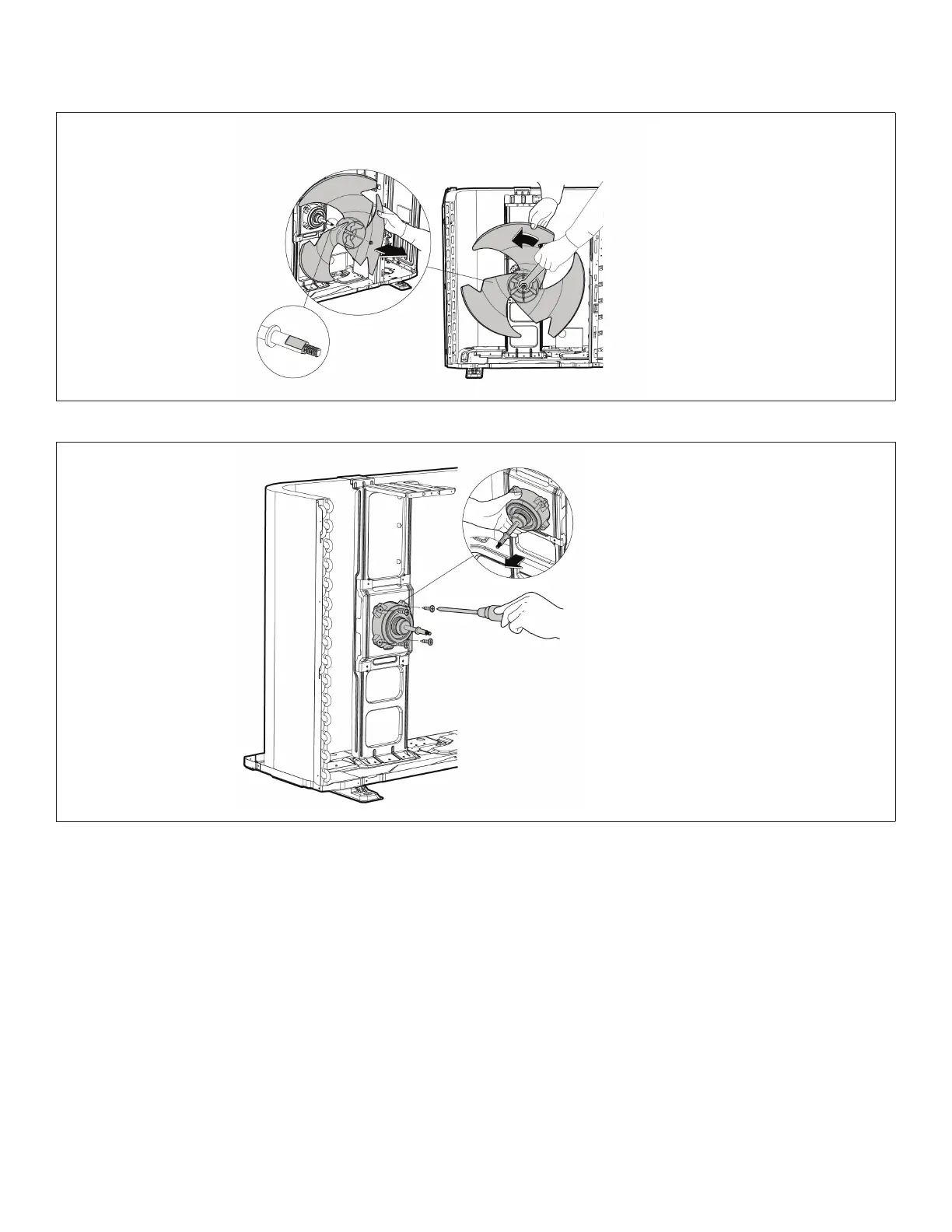

9.4. Outdoor Unit Fan and Fan Motor Disassembly (All Models)
9.4.1. Fan Disassembly
1. Remove the nut
securing the fan with a
spanner
2. Remove the fan.
9.4.2. Fan Motor Removal
1. Remove the four screws
securing the fan motor.
2. Remove the fan motor.
