Lennox MWHA012S4-1P User Manual

22
7.3.12. Heating - 024 (208/230V)
Outdoor
Temperature - °F
(Dry Bulb)
Indoor Temperature - °F (Dry Bulb)
60°F 65°F 70°F 75°F
Total
mBtuh
Total
mBtuh
Total
mBtuh
Total
mBtuh
–13 12.34 11.86 11.47 11.07
–5 14.70 14.13 13.65 13.04
0 16.35 15.71 15.17 14.48
5 17.95 17.20 16.67 16.00
17 21.14 20.26 19.61 18.53
19.4 21.54 20.60 19.96 18.96
24.8 22.07 21.09 20.44 19.52
32 22.55 21.59 20.90 20.06
35 23.23 22.24 21.51 20.75
39.2 25.25 24.15 23.36 22.42
44.6 28.28 27.15 26.24 25.32
47 29.63 28.33 27.46 26.36
53.6 30.72 29.39 28.45 27.02
57 31.83 30.44 29.44 27.82
7.4. Unit Dimensions
19-1/8 (486)
2-3/4
(70)
11-7/8 (302)
21-7/8
(556)
30-3/8 (772)
30-5/8 (778)
2-1/2
(64)
1/2 (13)
1/2
(13)
MCA009S4S, MCA012S4S, MCA081S4S
BOTTOM VIEW
FRONT VIEWSIDE VIEW
SIDE VIEW
12-5/8
(322)
11-1/4
(286)
2-3/8 (60)
3-5/8 (92)
DRAIN HOLE (bottom of unit)
11-3/4
(298)

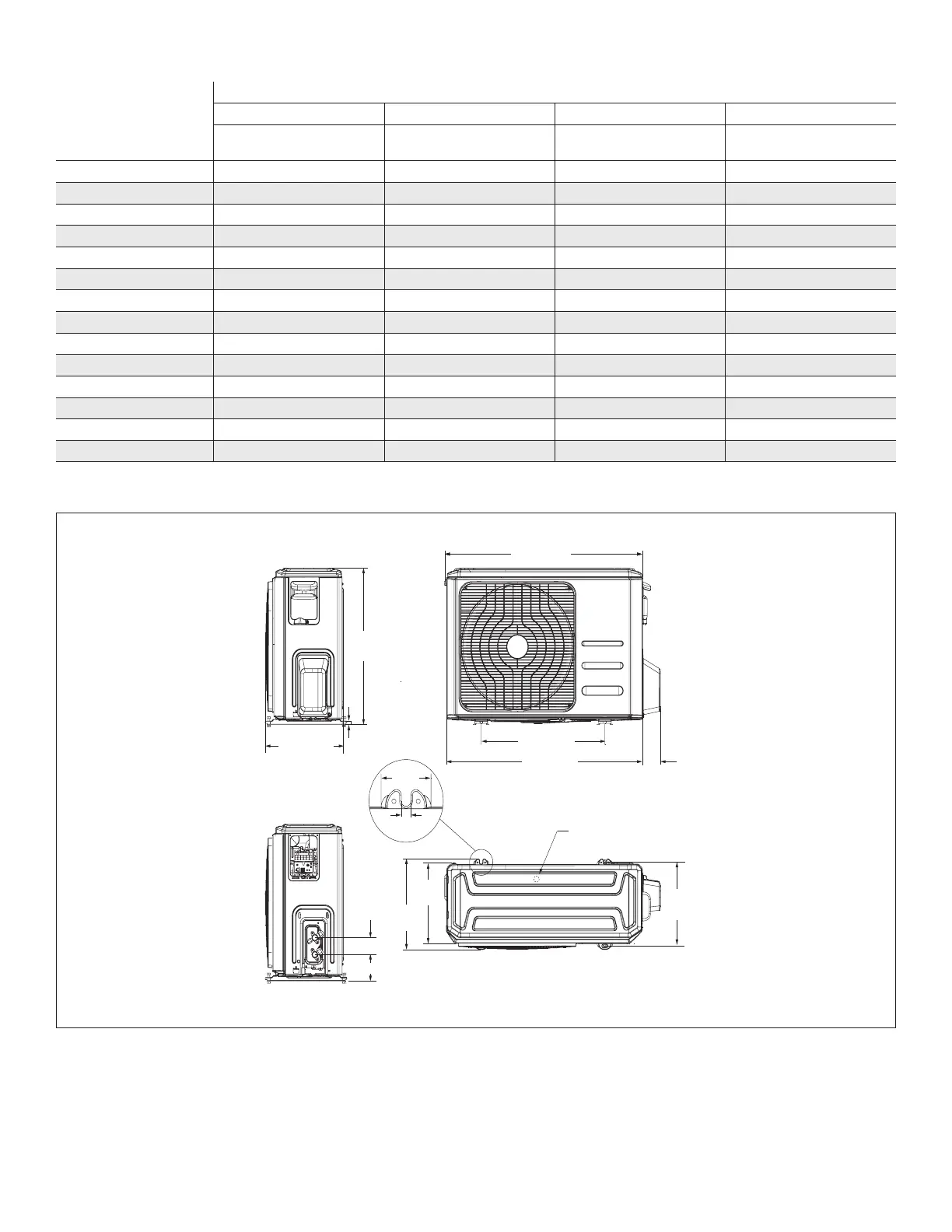

Figure 16. 09, 12K and 18K Outdoor Unit Dimensions - Inches (mm)
