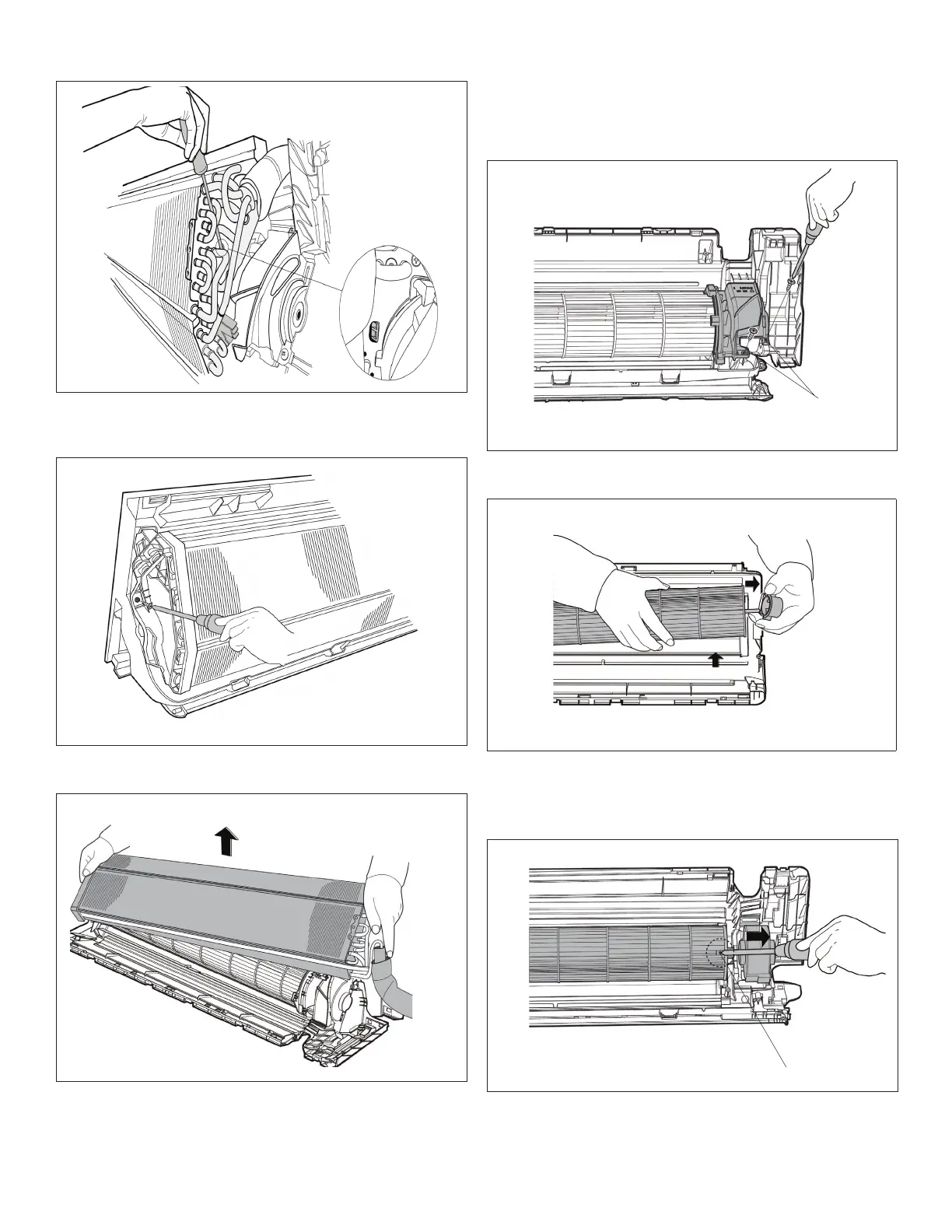

Step 3. Releasethehookontheevaporator.
Step 4. Removetheonescrewontheevaporatorlocated
oatthexedplate.
Step 5. Pullouttheevaporator.
17.1.4. Fan Motor and Fan
NOTE: Remove the front panel and electrical parts (see
“Front Panel” on page 37, “Electrical Parts”
on page 39 Electrical parts and “17.1.3.
Evaporator” on page 41) before disassembling
fan motor and fan.
Step 1. Removethetwoscrewsandremovethexing
boardofthefanmotor.
Screws
Step 2. Removethebearingsleeve.
Step 3. Removethexingscrew.
Step 4. Pulloutthefanmotorandfanassemblyfromthe
side.
Fixing Screw
17.1.5. Step Motor
NOTE: Remove the front panel and electrical parts (see
both “Front Panel” on page 37 and “Electrical
