11
HEPA BYPASS FILTER X2680 HEPA
INTERLOCK KIT
TOR COMMON WIRE
THROUGH CURRENT LOOP.
SEE HEPA INTERLOCK KIT
FOR INSTALLAT ION DETAILS
LENNOX
COMMUNICATING
OUTDOOR UNIT
LENNOX COMMUNICATING
INDOOR UNIT
LENNOX COMMUNICATING
THERMOSTAT OR DAMPER
CONTROL MODULE
CONVENTIONAL TERMINALS
LENNOX COMMUNICATING
INDOOR UNIT
(See Lennox
Communication
Wiring Diagram)
(See Lennox
Communication
Wiring Diagram)

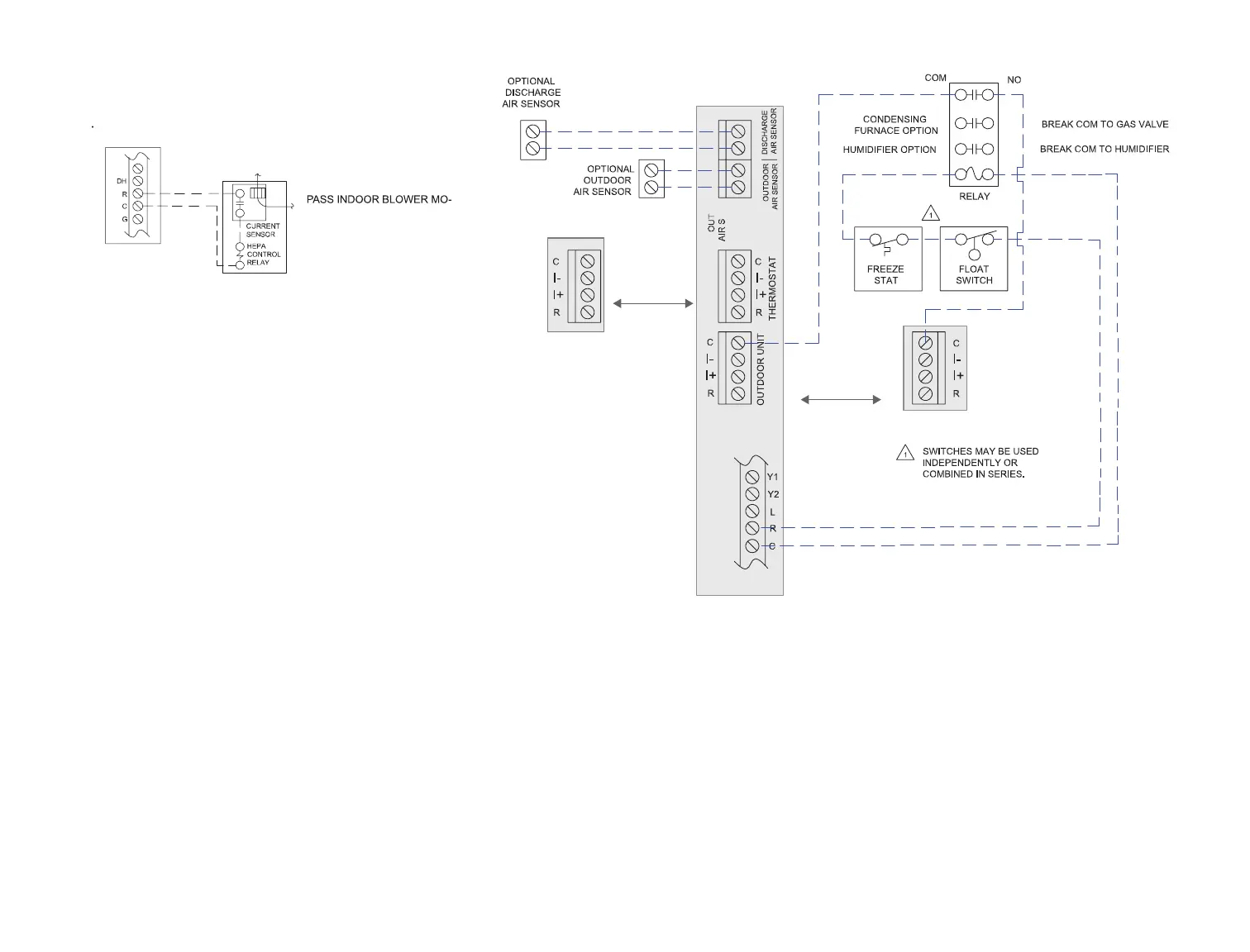

Figure 11. Lennox S40 and HEPA Bypass Filter Interlock Kit and Humidier
