11
NOTE: DIAGRAMS AND ILLUSTRATIONS ARE NOT TO SCALE.

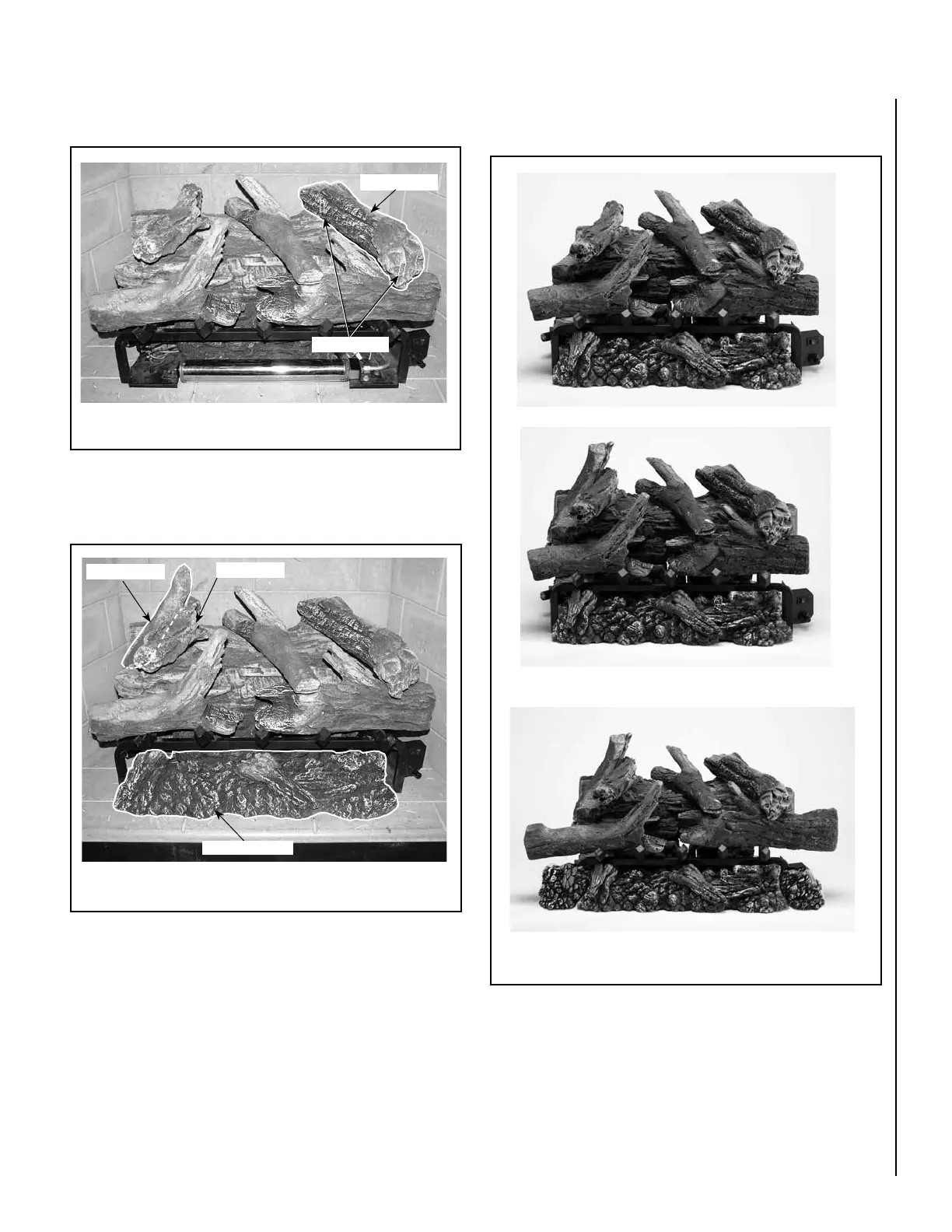

7. Place the right top log onto rear log locating pin and the right
front log locating pin as shown in Figure 17.
Right Top Log
Locating Pins
8. Place Left Top Twig (24" and 30" models only) onto corresponding
notch on rear log as shown in Figure 18A. The front of the Left
Top Twig should be up against and behind the left top log.
Left Top Twig
Front Ember Bed
Figure 17 - Install Right Top Log
Figure 18A - Install Left Top Twig
Left Top Log
9. Place the front ember bed log as shown in Figures 18A and
18B.
Figure 18B - Completed Installation
18" Gas Log Set
24" Gas Log Set
30" Gas Log Set
