NOTE: DIAGRAMS AND ILLUSTRATIONS ARE NOT TO SCALE.
16
* For the purpose of input adjustment.
PILOT (O.D.S.)
ASSEMBLY
WHITE
WHITE
WHITE
RED
MILLIVOLT VALVE
ON/OFF
SWITCH
PILOT PIEZO
IGNITER
IGNITION
WIRE
OFF
ON
OPTIONAL
REMOTE CONTROL
(MILLIVOLT)
Vented/Unvented Gas Log Appliance Technical Chart For Millivolt Log Set
Model No. BTU/HR
Input
Gas Type Ignition Regulator
Pressure Setting
Gas Inlet
Pressure*
Valve
Operation
Orifice Size
Top
Orifice Size
Bottom
Air Shutter
Opening
LSVFSD-NG 37,000
24,500
Natural
Piezo 1.6 – 3.5" W.C.
Max. 10.5" W.C.
Min. 5.0" W.C.
Millivolt .094" .071" 1/8"
LSVFSD-LP 37,000
28,000
Propane/
LPG
Piezo 6.3 – 10.0" W.C.
Max. 13" W.C.
Min. 11" W.C.
Millivolt .055" .046" 1/8"
Table 3

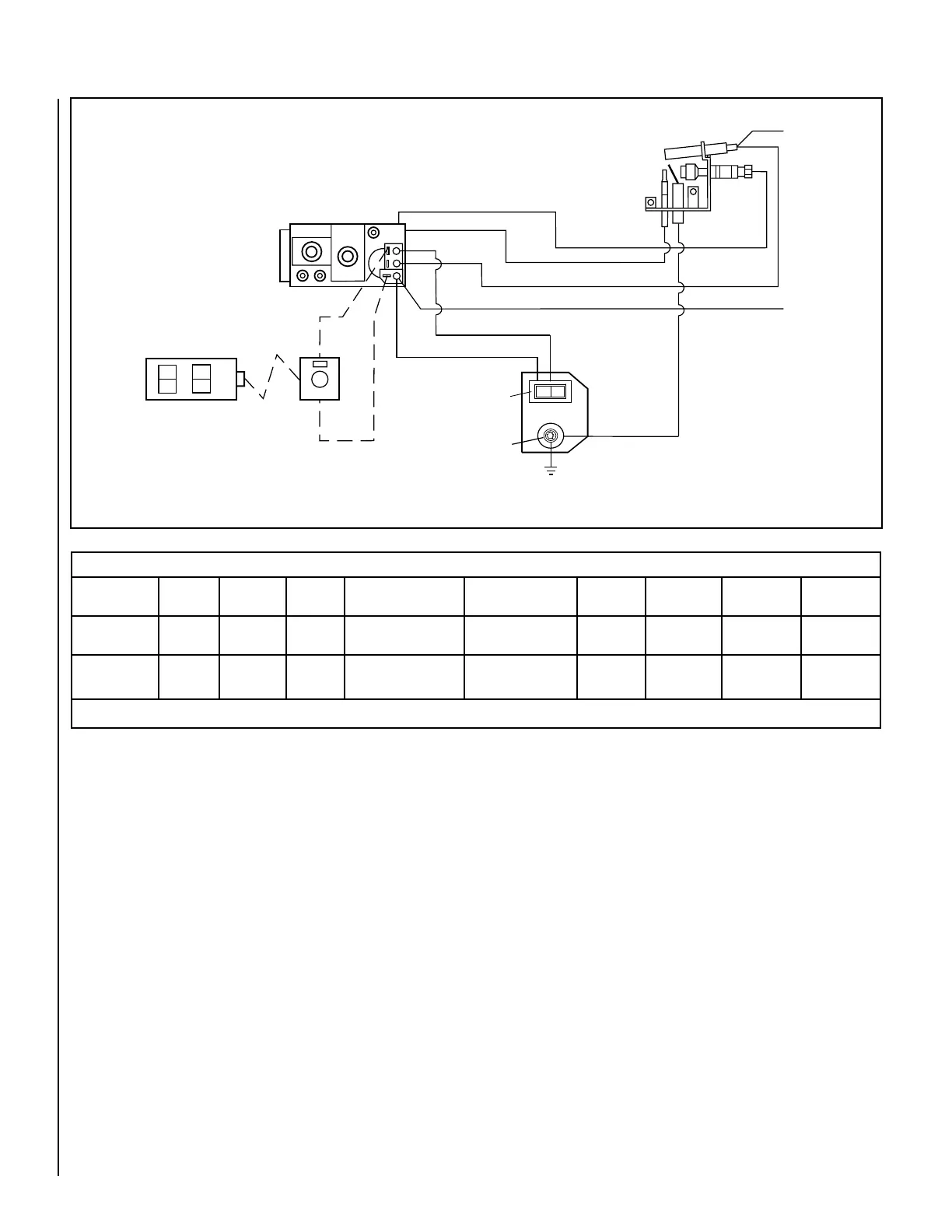

Figure 23 - Millivolt Wiring Diagram
CAUTION: Label all wires prior to disconnection when servicing controls.
Wiring errors can cause improper and dangerous operation.
If any of the original wire as supplied must be replaced, it must be replaced
with Type AWM 105°C – 18 GA. wire.
