Lennox Shadowdance LSVFSD-18 User Manual

19
NOTE: DIAGRAMS AND ILLUSTRATIONS ARE NOT TO SCALE.

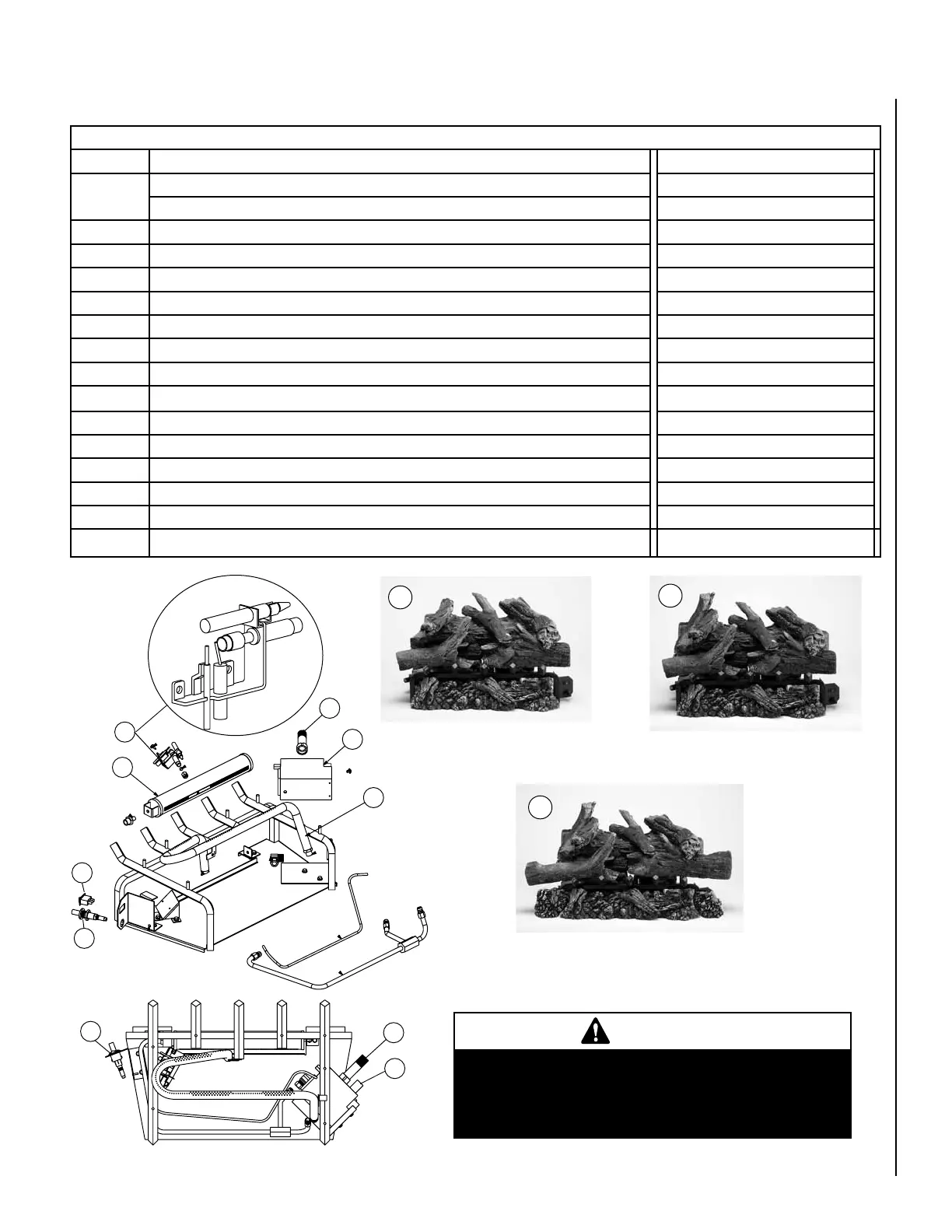

REPLACEMENT PARTS LIST (MILLIVOLT) - SHADOWDANCE™ SERIES
Replacement Parts List (Millivolt) - Shadowdance™ Series, Models LSVFSD-NG and LSVFSD-LP (18" and 24")
No. Description Catalog Number
1. Valve, Millivolt (Natural) H1203
Valve, Millivolt (Propane, L.P.G.) H4278
2. Ember Bed Front H3910
3. Ember Bed Rear H3911
4. Bottom Burner H3912
5. Top Burner H3913
6. Piezo Igniter 10K86
7. ODS Pilot Assembly, Millivolt (Natural) H4113
8. ODS Pilot Assembly, Millivolt (Propane, L.P.G.) H4170
9. Knob Extension, Pilot/On/Off 60J74
10. Knob Extension, Hi/Lo 60J95
11. On/Off Switch 27K30
12. Piezo Igniter Cable H4868
13 18" Log Assembly H5137
14 24" Log Assembly H5138
15 30" Log Assembly H5139
4
7
6
6
5
NG Pilot
Assembly
1
10
10
9
Top View
11
18" Gas Log Set
24" Gas Log Set
13
14
WARNING
Failure to position the parts in accordance with these
diagrams or failure to use only parts specifically
approved with this heater may result in property
damage or personal injury.
30" Gas Log Set
15
