VII- Wiring and Sequence of Operation
Wiring Diagram With Ignition Control 103130-XX

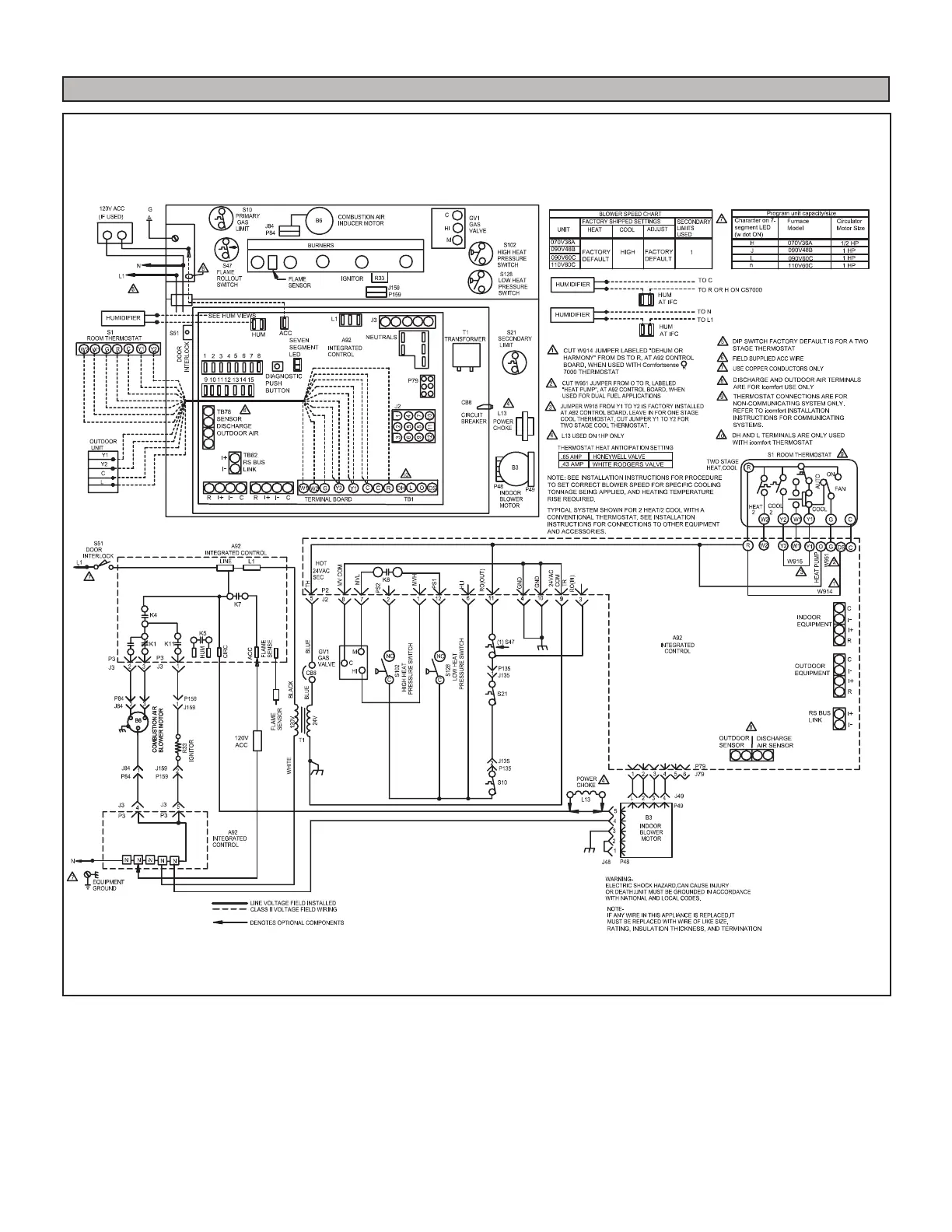

SL280DFV Schematic Wiring Diagram
