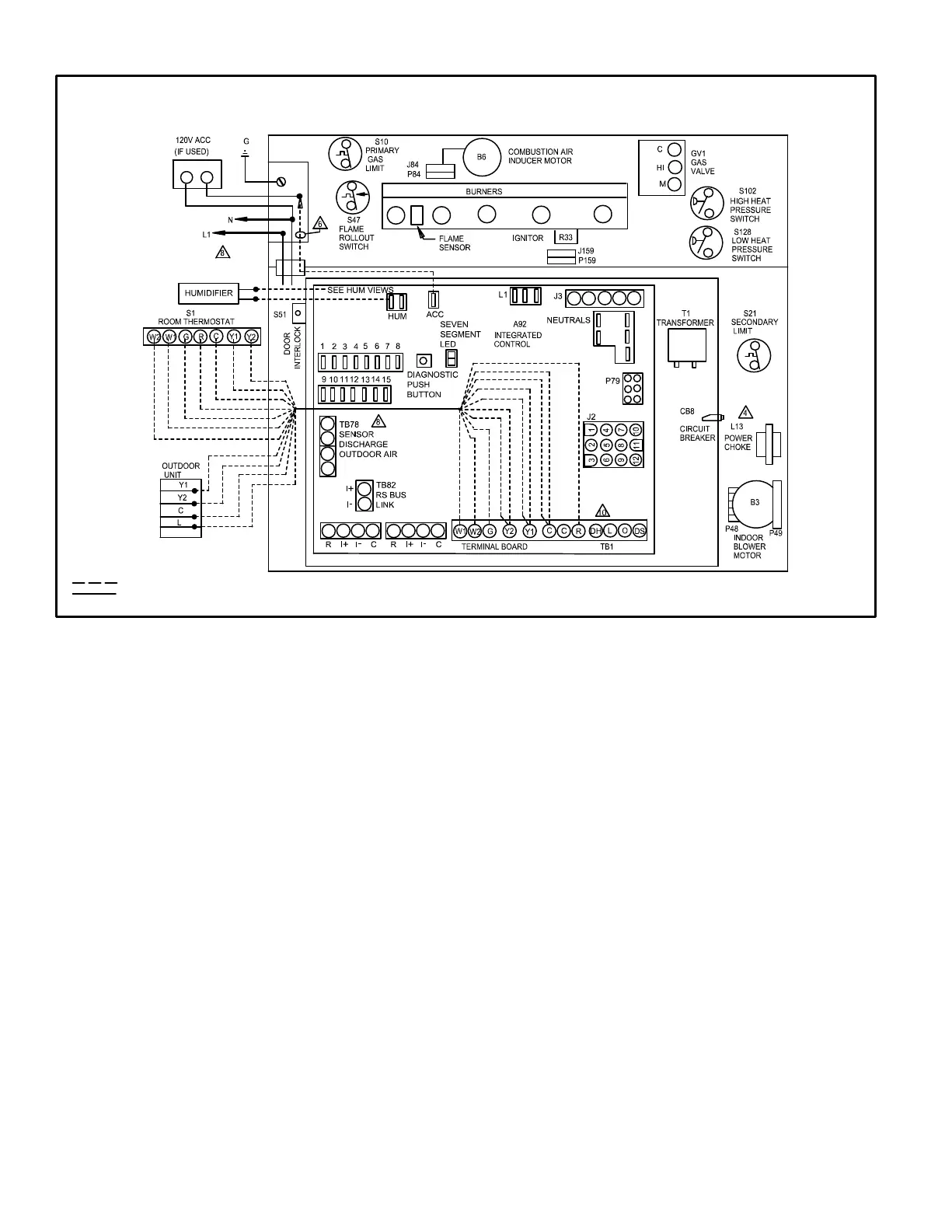

TYPICAL SL280DFV FIELD WIRING DIAGRAM
FIGURE 24
FIELD INSTALLED CLASS II 24V
FIELD INSTALLED LINE VOLTAGE
