Page 45

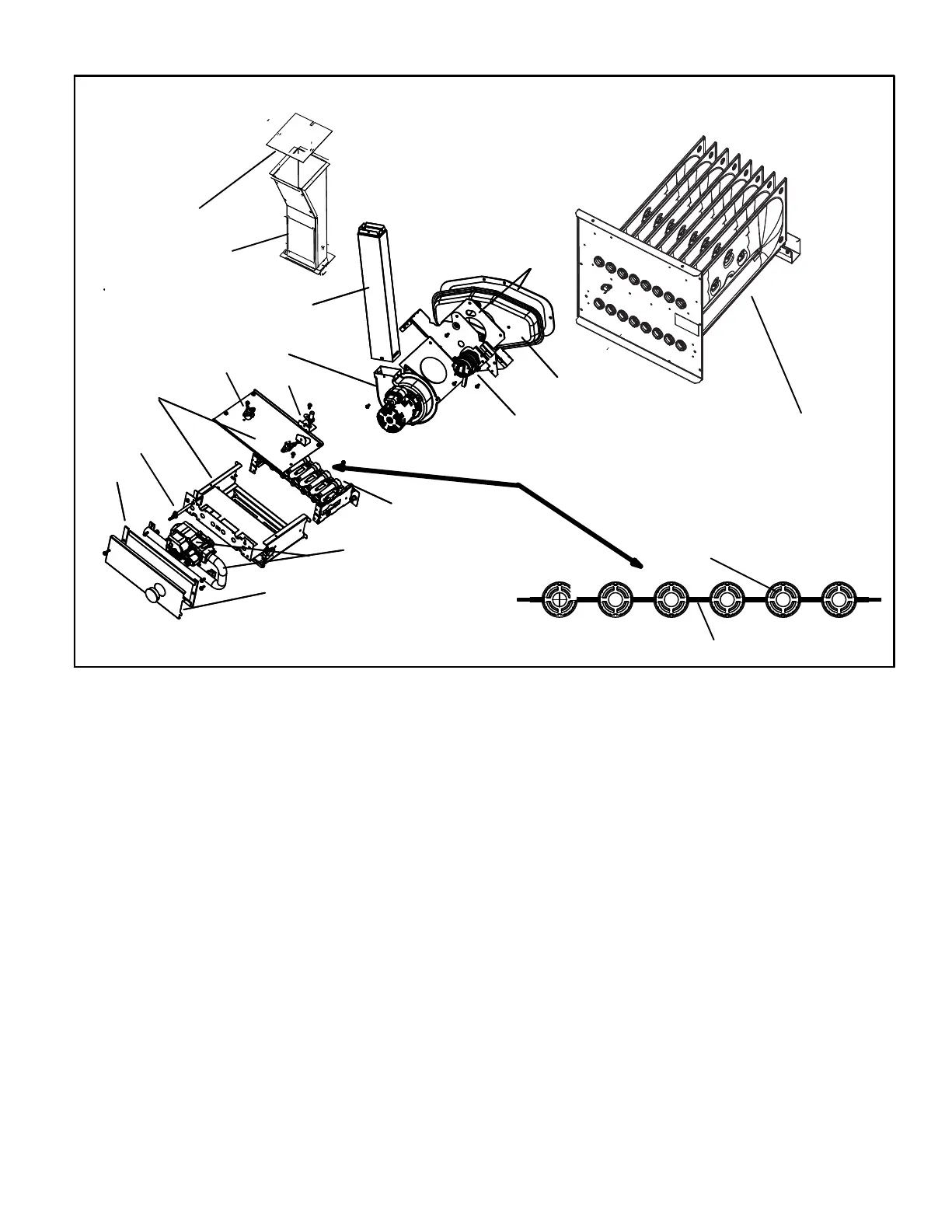

SL280DFV BURNER, COMBUSTION AIR INDUCER ASSEMBLY &
HEAT EXCHANGER REMOVAL
FIGURE 30
heat exchanger
gasket
collector box
orifice plate
internal flue pipe
pressure switch
combustion air inducer
burners
burner box assembly
burner box cover plate
manifold and gas valve
gasket
retention rings
cross over
heat exchanger
gasket
collector box
orifice plate
internal flue pipe
pressure switch
combustion air inducer
burners
burner box assembly
burner box cover plate
manifold and gas valve
gasket
flue chase
gasket
ignitor
rollout switch
sensor
