Lennox T-Class TPA090S4S User Manual

Page 2

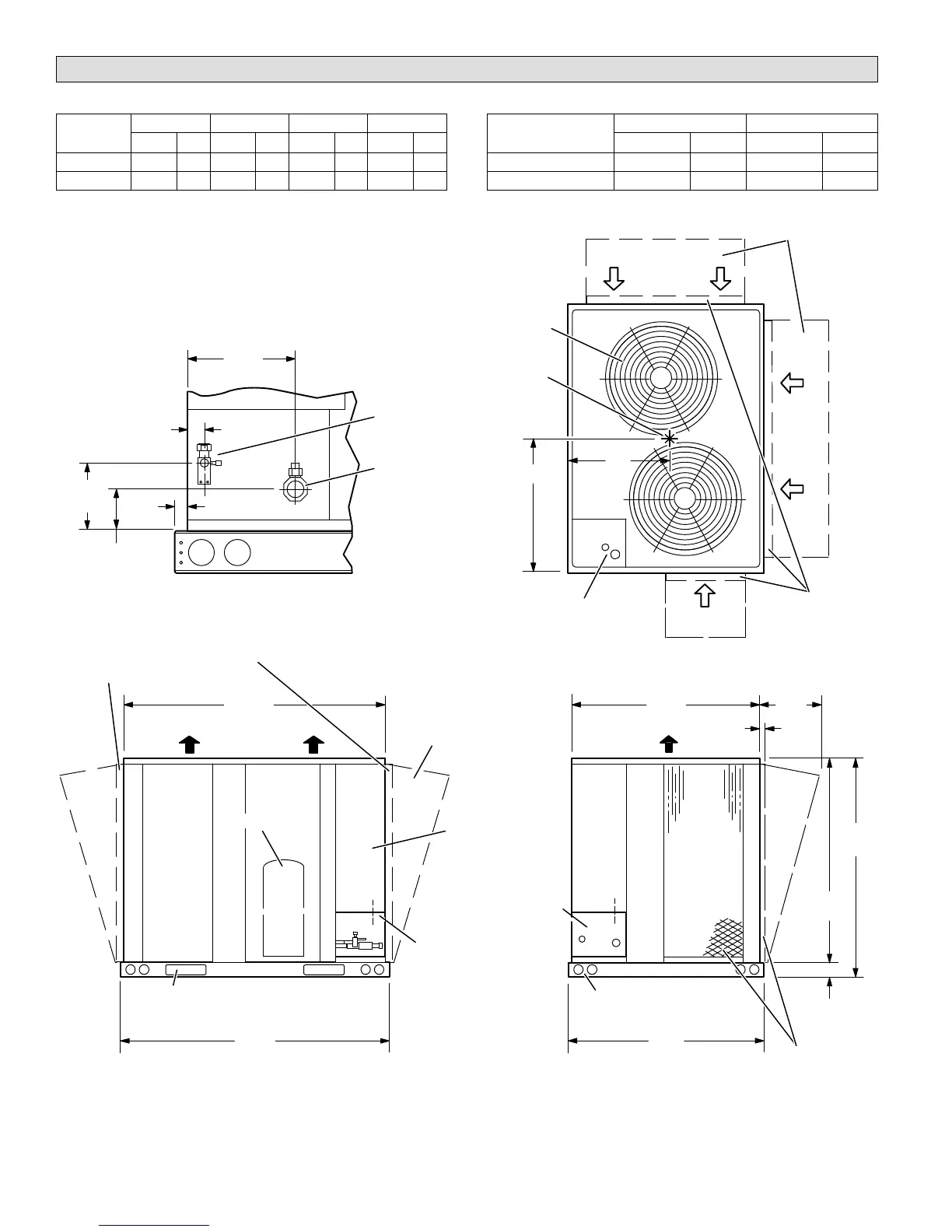

Unit Dimensions, Corner Weights and Center of Gravities
Corner Weights
Model No.
AA BB CC DD
lbs. kg lbs. kg lbs. kg lbs. kg
TPA090S4S 105 48 105 48 112 51 112 51
TPA120S4S 129 59 110 50 123 56 145 66
Center of Gravities
Model No.
EE FF
inch mm inch mm
TPA090S4S 21.75 552 29.0 737
TPA120S4S 20.0 508 28.25 718
9−1/8
(232)
(29)
(54)
SUCTION
LINE
LIQUID
LINE
REFRIGERANT LINE
CONNECTIONS DETAIL
(29)
(127)
BASE
REFRIGERANT
LINE CONNECTIONS
SEE DETAIL
DISCHARGE
AIR
41−3/8
60−1/8
(1470)
CONTROL
BOX ACCESS
COMPRESSOR
DISCHARGE
AIR
LIFTING HOLES
(For Rigging)
FRONT VIEW
TOP VIEW
FORKLIFT SLOTS
(Both Sides)
SIDE VIEW
(1108)
48−3/4
(1238)
3−1/2
(89)
(1149)
FF
EE
INLET AIR
INLET AIR
BBAA
CC
DD
CENTER OF
GRAVITY
ELECTRICAL
INLETS (Above
Refrigerant Lines)
OUTDOOR
FAN GUARDS
INLET AIR
BASE
ELECTRICAL
INLETS (Above
Refrigerant Lines)
OPTIONAL HAIL GUARD
(Field Installed All Coil Sides)
(Not used with Coil Guard)
OPTIONAL HAIL GUARD
(Field Installed All Coil Sides)
(Not used with Coil Guard)
OPTIONAL
COIL GUARD
(Field Installed All Coil Sides)
(Not used with Hail Guard)
12
(286)
(Not used with
Hail Guard)
OPTIONAL COIL GUARD
(Field Installed All Coil Sides)
(Not used with Hail Guard)
OPTIONAL
COIL GUARD
(Field Installed
All Coil Sides)
1−1/8
1−1/8
2−1/2
5
57−7/8
(1051)
2 (51)
(1527)
43−5/8
45−1/4
