Page 4

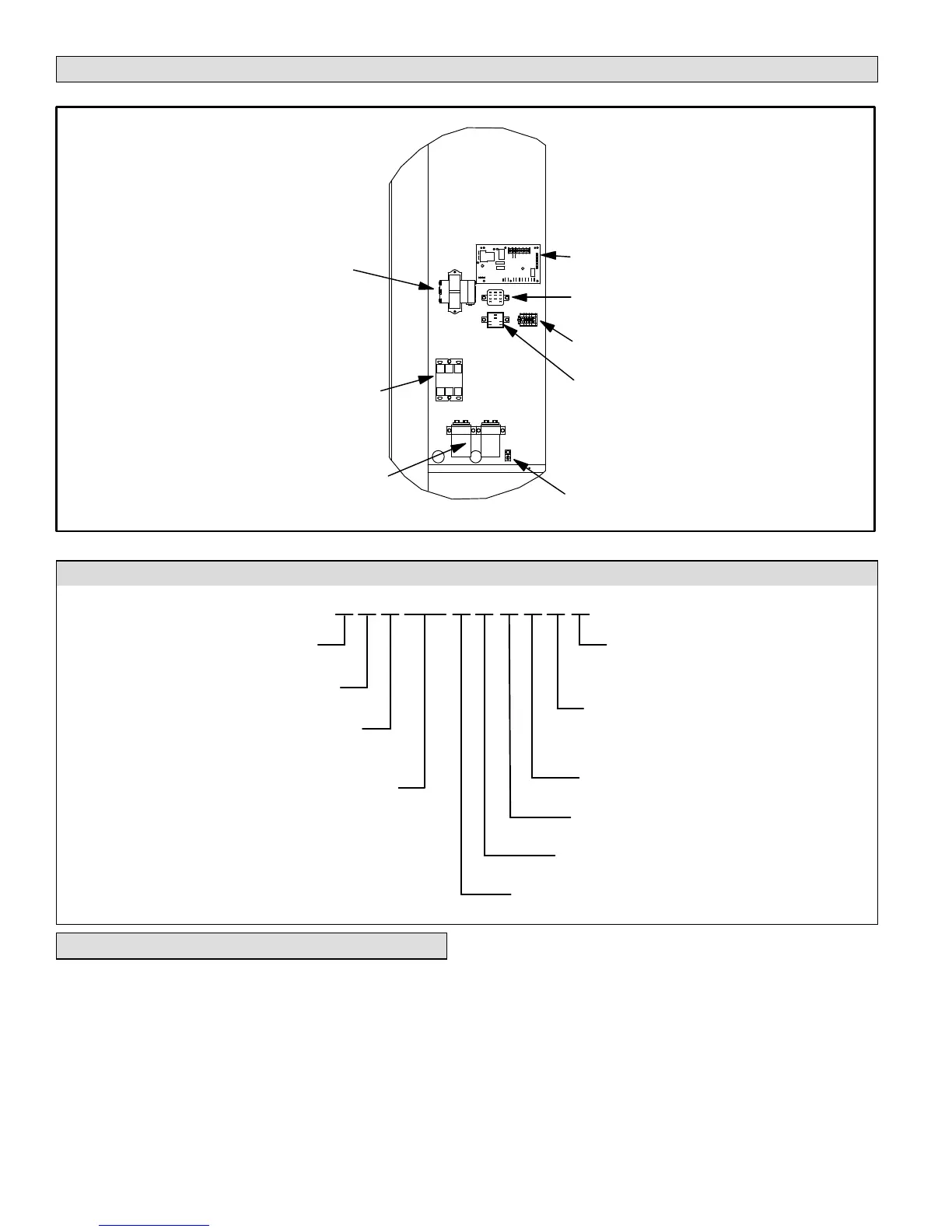

Unit Control Box Components Arrangement
TPA090S4S AND TPA120S4S
TRANSFORMER
(T1)
CONTACTOR (K1)
RUN CAPACITORS
(C1, C2,)
GROUND LUG
TERMINAL STRIP (TB14)
RELAY (K10)
RELAY (K149)
DEFROST CONTROL
BOARD
Model Number Identification
TPA Y1120 S N4 S
Major Design Sequence
A = 1st Generation
B = 2nd Generation
Brand/Family
T = T-Class™ Product Line
Unit Type
P = Split System Heat Pump
Nominal Cooling Capacity -
Tons
090 = 7.5 Tons
120 = 10 Tons
Cooling Efficiency
S = Standard Efficiency
Minor Design Sequence
1 = 1st Revision
2 = 2nd Revision
3 = 3rd Revision
Voltage
Y = 208/230V‐3 phase‐60hz
G = 460V‐3 phase‐60hz
J = 575V‐3 phase‐60hz
Refrigerant Type
4 = R-410A
Refrigerant Circuits
S = Single Circuit
Part Load Capability
N = Single Stage Compressor
Rigging the Unit for Lifting
Rig the unit for lifting by attaching four cables to the holes in
the base rail of the unit as illustrated in figure 5.
1. Remove protective packaging before rigging the unit
for lifting.
2. Connect the rigging to the holes in each corner of the
unit's base.
3. All panels must be in place for rigging.
4. Place a field‐provided H‐style frame just above the
top edge of the unit. The frame must be of adequate
strength and length. (An H‐style frame will prevent
the top of the unit from being damaged.)
