Lennox T-Class TPA090S4S - Typical Wiring Diagram

Lennox T-Class TPA090S4S
13 pages
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
Page 7
TP SERIES

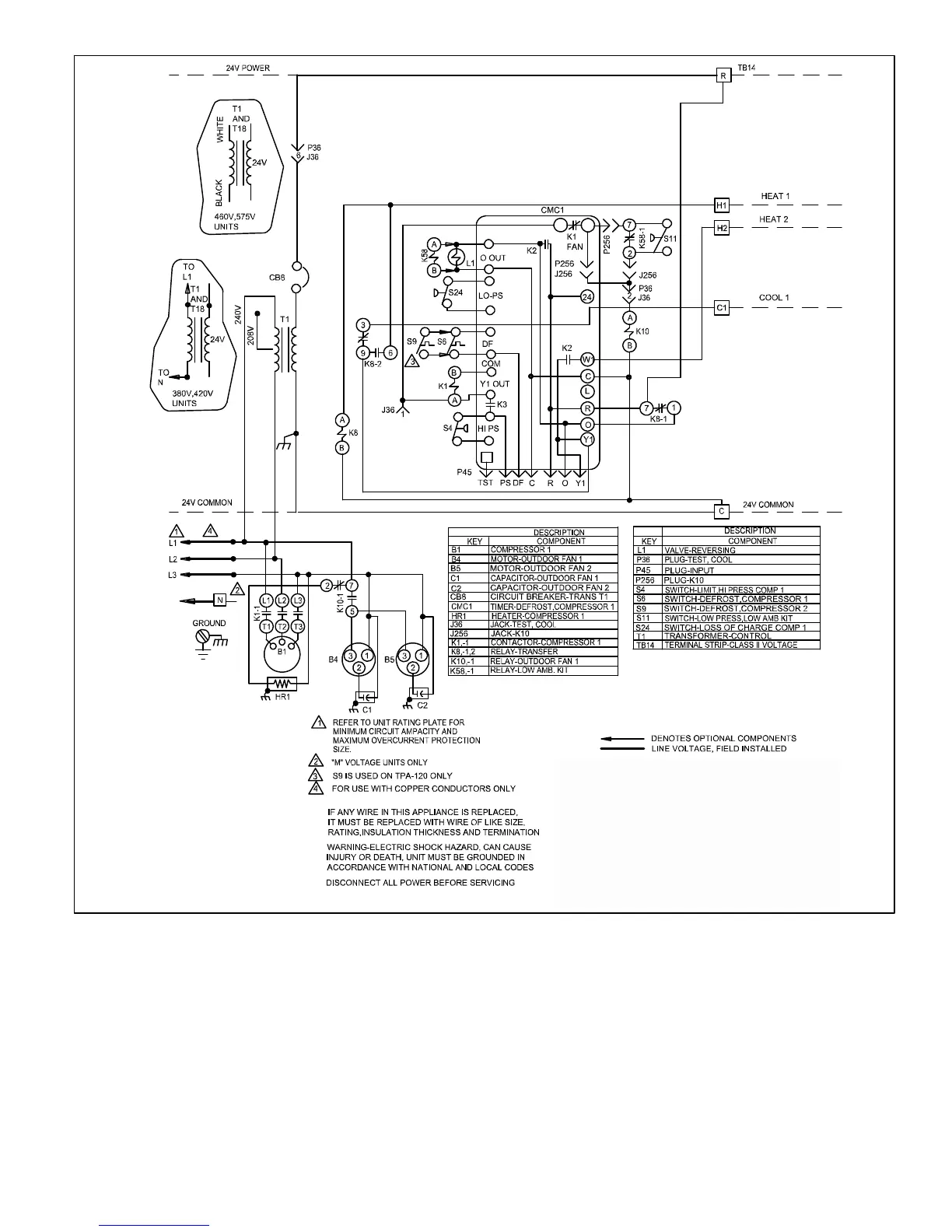

Figure 3. TPA090S4S and TPA120S4S G, J, M, and Y Voltages) Typical Wiring Diagram
